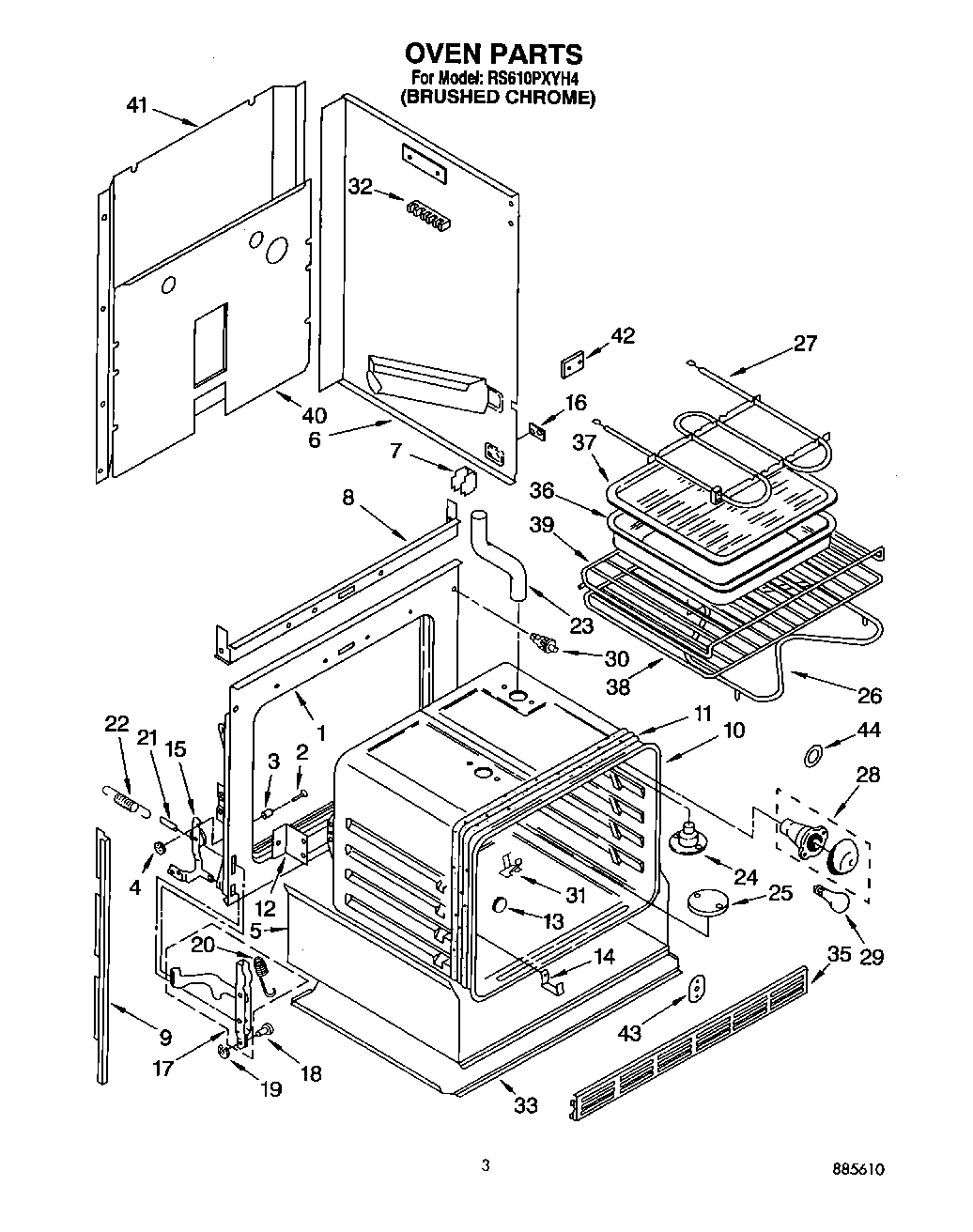

RS610PXYH4 03 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3183765
	WPL LIT677973
	Installation Instructions
	WPL LIT3186658
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper L.H.
6	Side Wrapper R.H.
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Right Side)
9	Side Trim (Left Side)
10	Screw (3)
10	Oven 30“
11	Heat Seal
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel, Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Spring, Door Stop (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	WPL 312318
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
31	WPL 3169107
32	WP8203546 Whirlpool Terminal Block
32	WP112432 Whirlpool Nut Assembly
32	Screw (10-12 x .875)
33	Cover, Bottom
35	Grill, Bottom
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	Rack, Straight
39	Rack, Offset
40	Panel, Back
41	WP488729 Whirlpool Refrigerator Door Screw
41	Cover, Rear
42	WPL 3183005
42	Screw (2)
43	Plate, Cover
44	Insulation, Back
44	WP3184533 Whirlpool Range Light Lens Gasket
44	Insulation, Wrap
