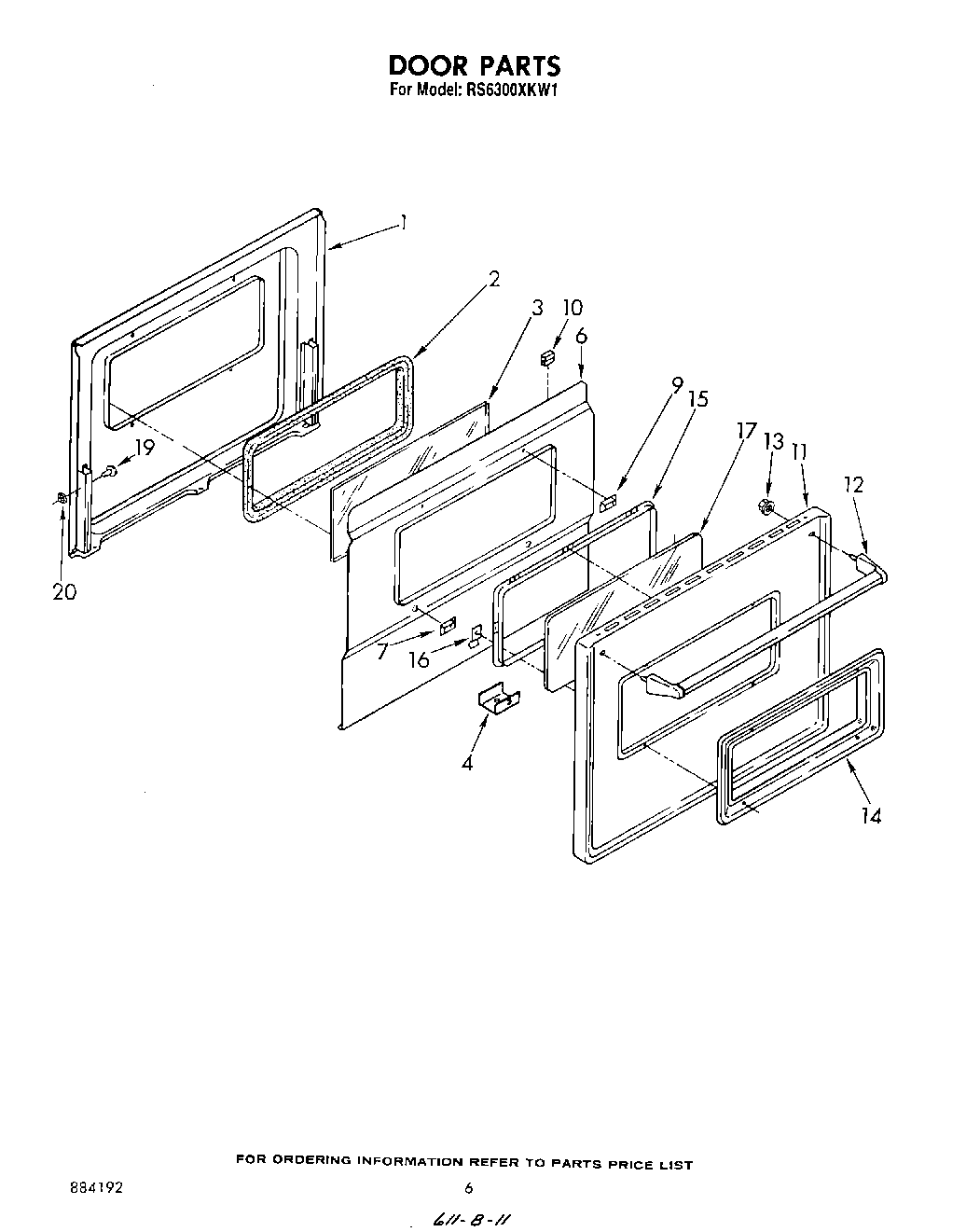

RS6300XKW1 04 – DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT884192
	WPL LIT313358
	WPL LIT311433
	WPL LIT311410
1	WP488627 Whirlpool Refrigerator Screw
1	Screw (3)
1	liner, door
2	seal, pano glass
3	glass, inner 30“
4	Spacer, Baffle (2)
6	baffle, insulation
9	spacer, insulation baffle (4)
9	Screw, 10A x 1/2 (2) (Black)
10	Channel, Rubber (4)
11	Panel, Door (White)
11	Screw
11	Panel, Door (Harvest Gold)
11	Panel, Door (Platinum)
11	Panel, Door (Almond)
11	Panel, Door (Toast)
12	Handle, Oven Door
13	WP308499 Whirlpool Nut
14	Frame, Window
15	Retainer, Glass
16	Clip, Frame
17	Glass, Outer
17	Hinge-Lt. or Rt.
19	pin, wedge (2)
20	Grease
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Wire, 25“ Roll (White 14 GA.)
20	Touch-Up Oven (1 Oz.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Orange)
20	Wire (14 Ga. 150 c Yellow)
20	Wire (12 Ga. 150 c Black)
20	18 Ga. 80~c Rating (Red)
20	Wire (14 Ga. 200 c Brown)
20	pushnut (2)
20	1
20	WPW10208653 Whirlpool Insulation
