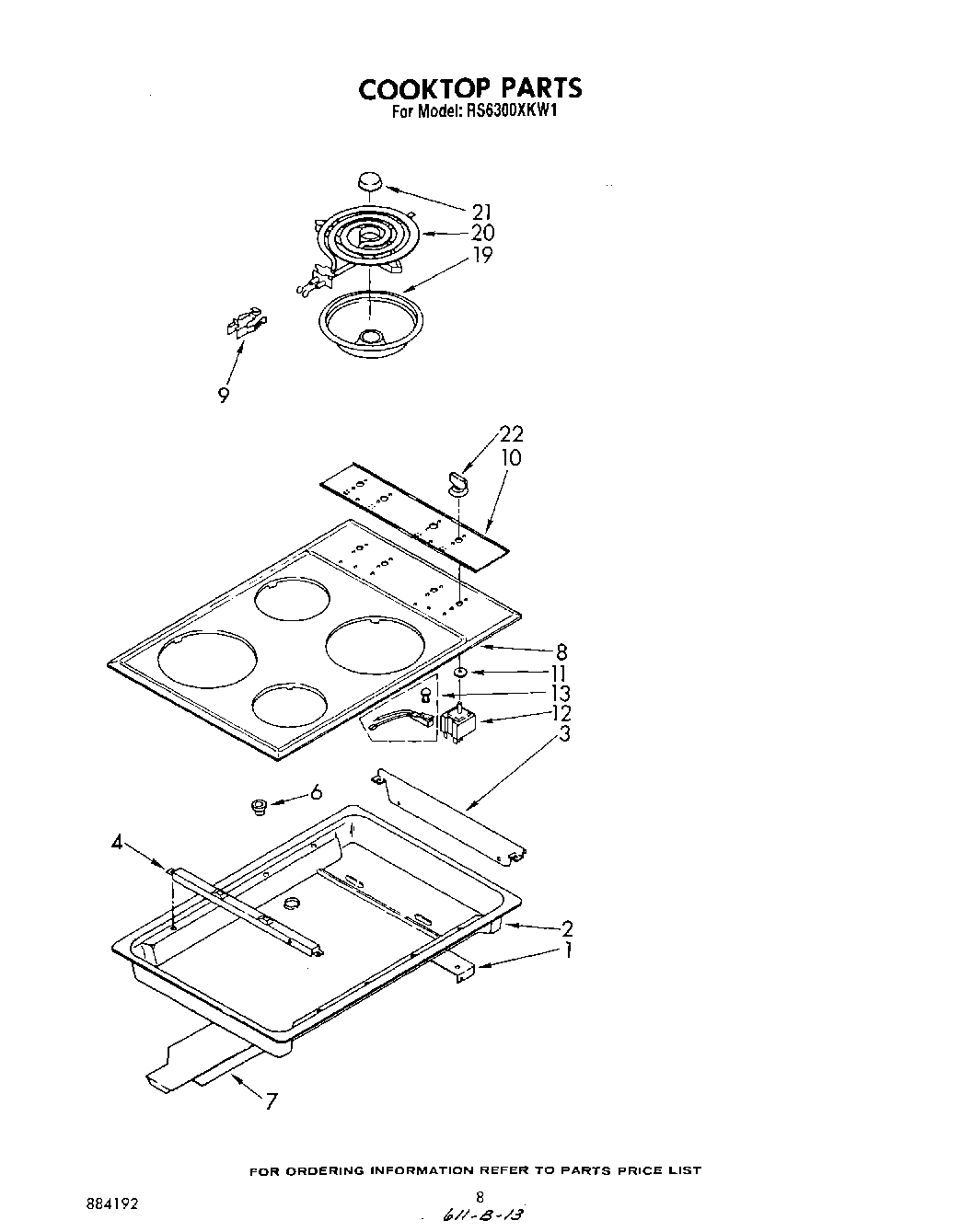

RS6300XKW1 05 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Support, Box
2	Burner Box
3	Screw, 10-32 x 1/2
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	Cover, Top Rear
7	WP308685 Whirlpool Microwave Screw
7	WPL 312318
8	Cooktop (Harvest Gold)
8	Cooktop (Almond)
8	Cooktop (Toast)
8	Screw
8	Cooktop (Platinum)
8	WP488787 Whirlpool Refrigerator Screw
8	Cooktop (White)
9	WP313808 Whirlpool Screw
9	BURNER RECEPTACLE KIT
10	Panel, Control
11	Seal, Switch Shaft (2)
12	WP486579 Whirlpool Air Conditioner Screw
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	WP330190 Whirlpool Knob
