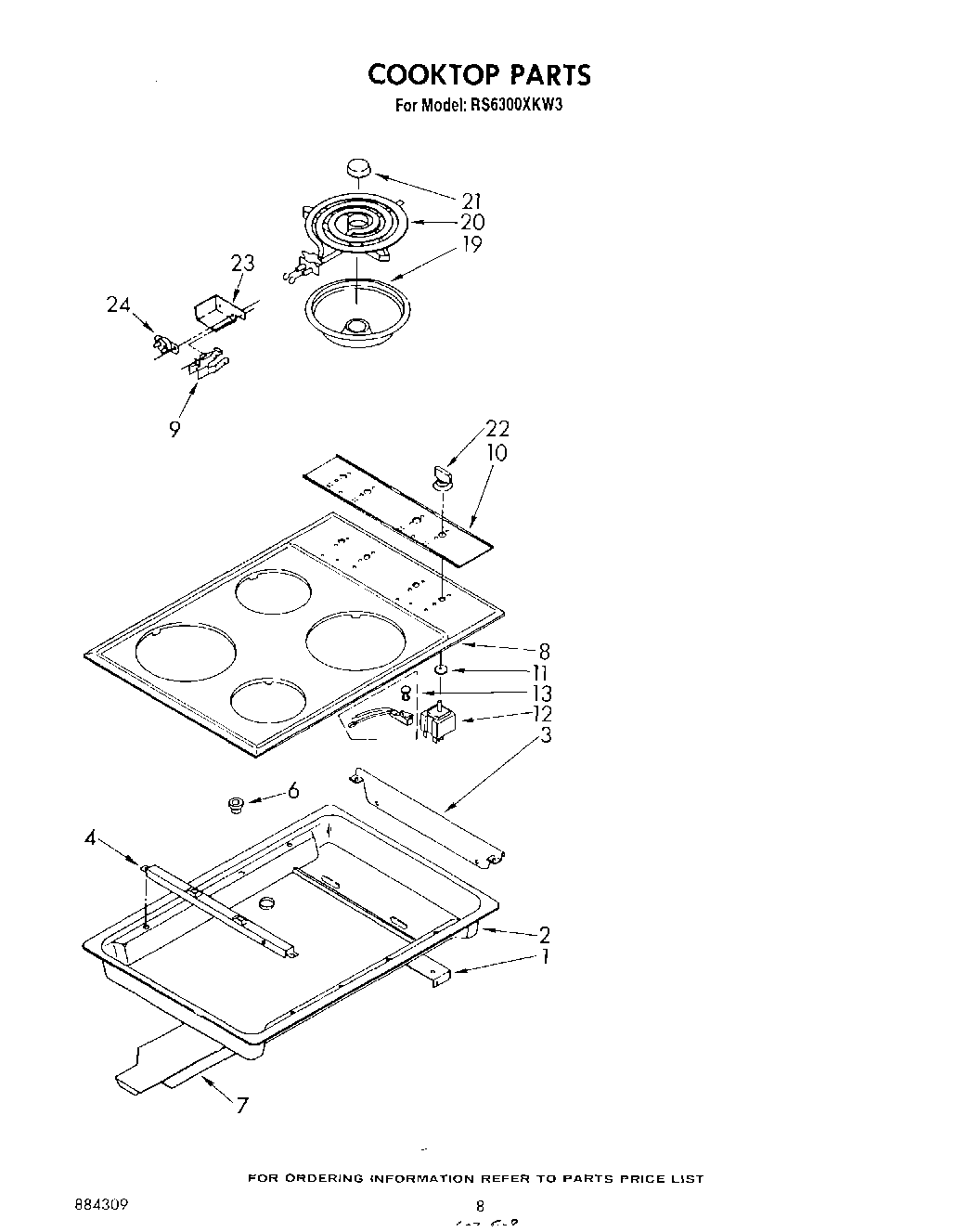

RS6300XKW3 05 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	WPL 312318
7	WP488729 Whirlpool Refrigerator Door Screw
7	Cover, Top Rear
8	Cooktop (Toast)
8	Screw
8	Cooktop (White)
8	Cooktop (Harvest Gold)
8	Cooktop (Platinum)
8	Cooktop (Almond)
9	WP4332752 Whirlpool Clip
10	Panel, Control
11	Seal, Switch Shaft (2)
12	WP486579 Whirlpool Air Conditioner Screw
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	WP330190 Whirlpool Knob
23	Bracket, Sensor
24	Thermostat
24	WP313808 Whirlpool Screw
