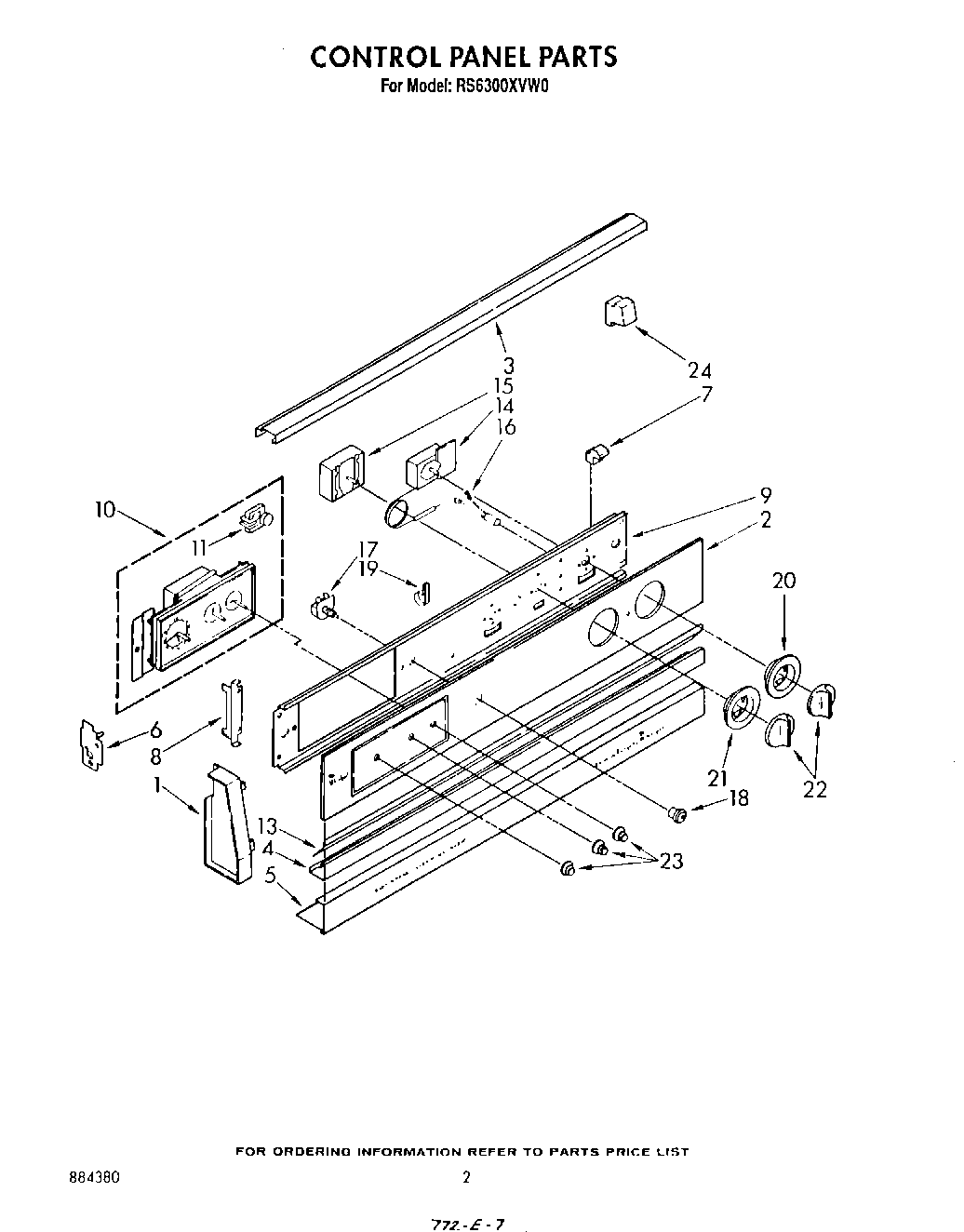

RS6300XVN0 02 – CONTROL PANEL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
1	End Cap (L.H.)
1	Screw (2)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
6	Cover, Side (Left Hand)
6	Cover, Side (Right Hand)
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Bracket, Control
9	Clip
10	Screw (2)
10	Timer, Clock (Includes No.6)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch (4 Position)
16	Indicator Light (4)
17	Switch, Oven Light
17	Lockwasher
18	Bezel Switch (1)
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
24	Support, Rail
