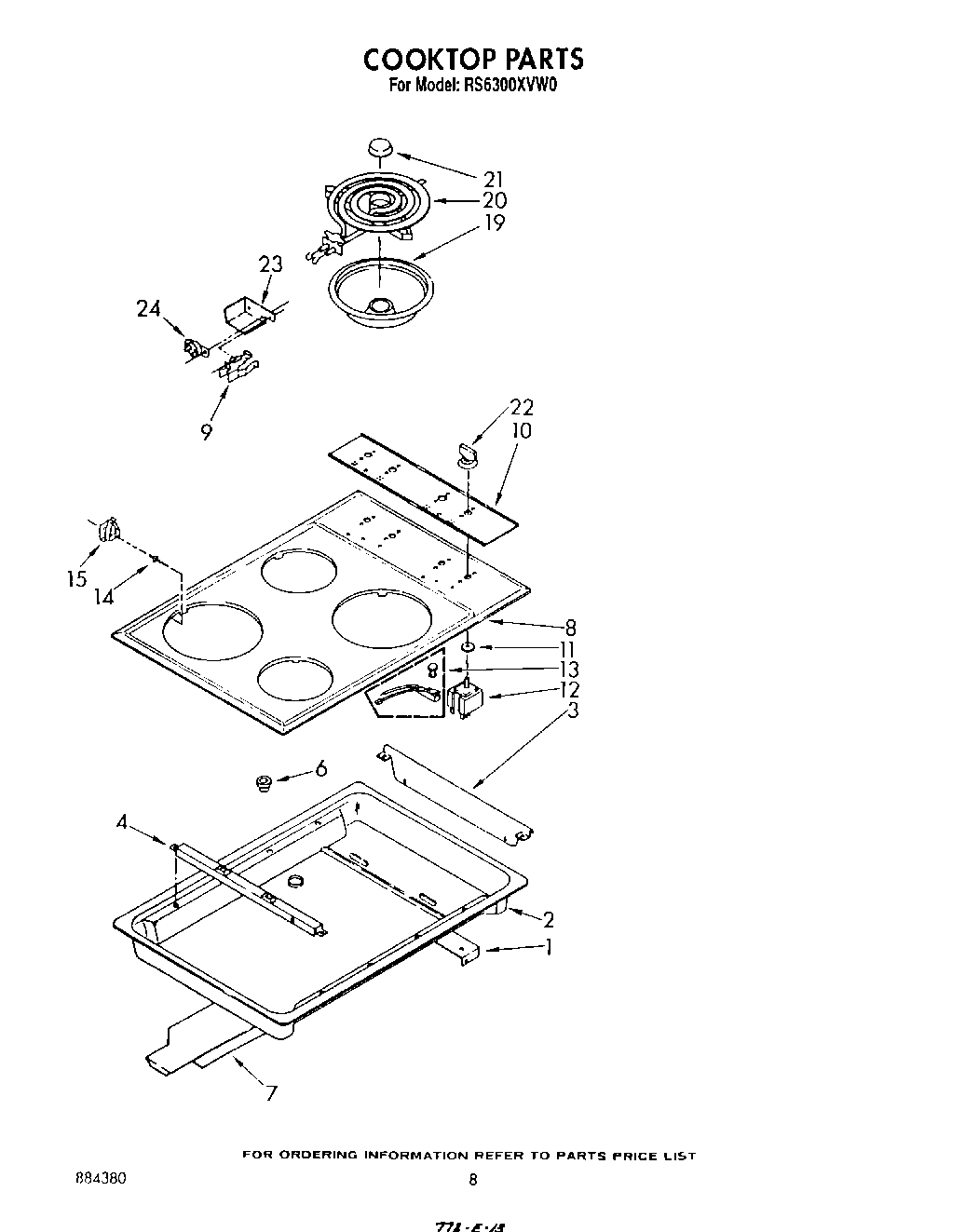

RS6300XVN0 05 – COOK TOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Support, Box
2	Burner Box
2	Screw, 10-32 x 1/2
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	WPL 312318
7	Cover, Top Rear
8	WP488729 Whirlpool Refrigerator Door Screw
8	Cooktop (Almond)
8	Cooktop (White)
8	Screw
9	BURNER RECEPTACLE KIT
9	WP313808 Whirlpool Screw
10	Panel, Control
11	Seal, Switch Shaft (2)
12	W10900107 Whirlpool Oven Surface Element Switch
12	WP486579 Whirlpool Air Conditioner Screw
12	Switch, Infinite (8“ Unit (2))
13	Indicator Light
14	814103 Whirlpool Clip
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control
23	Bracket, Sensor
24	Thermostat
