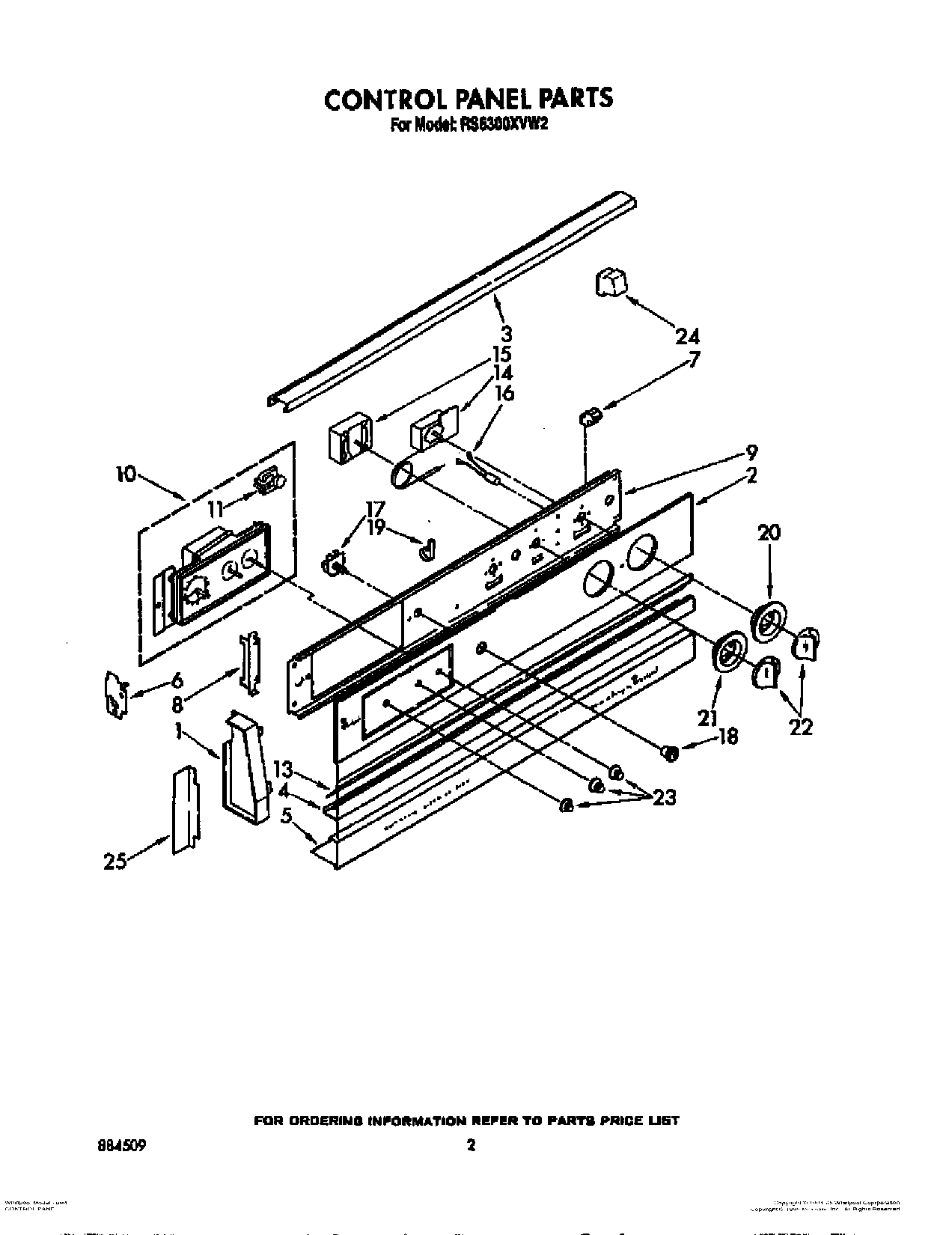

RS6300XVW2 02 – CONTROL PANEL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
	Repair Parts List
	Guide, Use & Care
	WPL LIT313358
	WPL LIT3147390
1	Screw (2)
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
6	Cover, Side (Left Hand)
6	Cover, Side (Right Hand)
7	Retainer, Glass (4)
8	Bracket, Control (2)
9	Clip
9	Bracket, Control
10	Screw (2)
10	Timer, Clock (Includes No.6)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch (4 Position)
16	Indicator Light (4)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
20	Escutcheon, Thermostat
21	WP311069 Whirlpool Oven Dial
21	Screw,
22	WP3150371 Whirlpool Control Knob
23	Spring (3)
23	WP3169181 Whirlpool Knob
24	Support, Rail
25	Trim, End Cap (Black)
