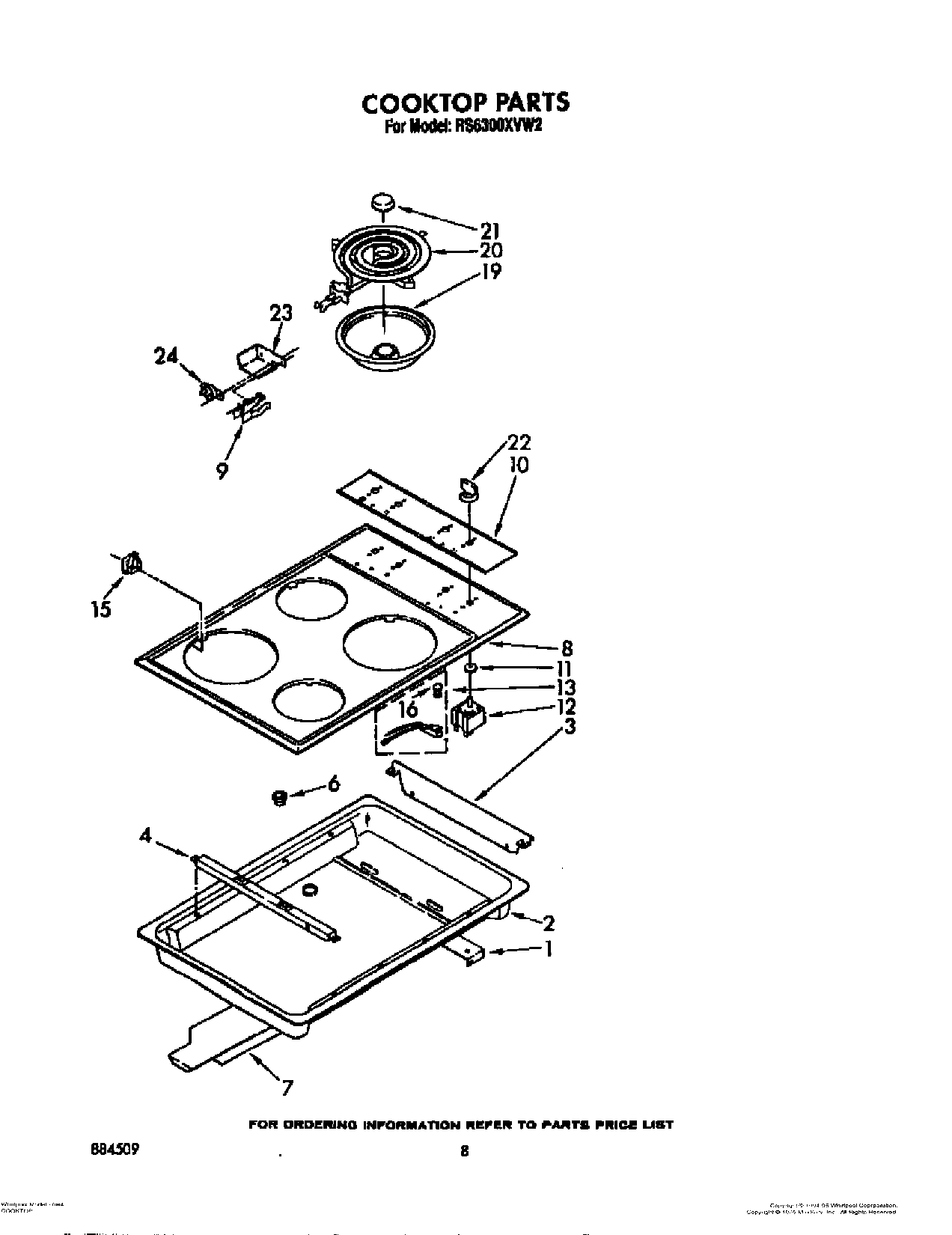

RS6300XVW2 05 – COOKTOP, OPTIONALadmin2025-04-26T12:53:25+00:00RS6300XVW2 05 – COOKTOP, OPTIONAL
Products
| Position | Product |
|---|
| NI | WP660533 Whirlpool Oven 8" Surface Element |
| 1 | Support, Box |
| 2 | Burner Box |
| 3 | Shield, Switch |
| 4 | Support, Cooktop |
| 6 | WPL 258109 |
| 7 | WPL 312318 |
| 7 | Cover, Top Rear |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 8 | Cooktop (White) |
| 8 | Screw |
| 8 | Cooktop (Almond) |
| 9 | BURNER RECEPTACLE KIT |
| 9 | WP313808 Whirlpool Screw |
| 10 | Panel, Control |
| 11 | Seal, Switch Shaft (2) |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 12 | Switch, Infinite (8`` Unit (2)) |
| 13 | Indicator Light |
| 15 | 814103 Whirlpool Clip |
| 16 | Lens, Light |
| 19 | DRIP BOWL 8" W/HOLE CHROME |
| 19 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 21 | Medallion (4) |
| 22 | Knob, Control |
| 23 | Bracket, Sensor |
| 24 | Thermostat |
