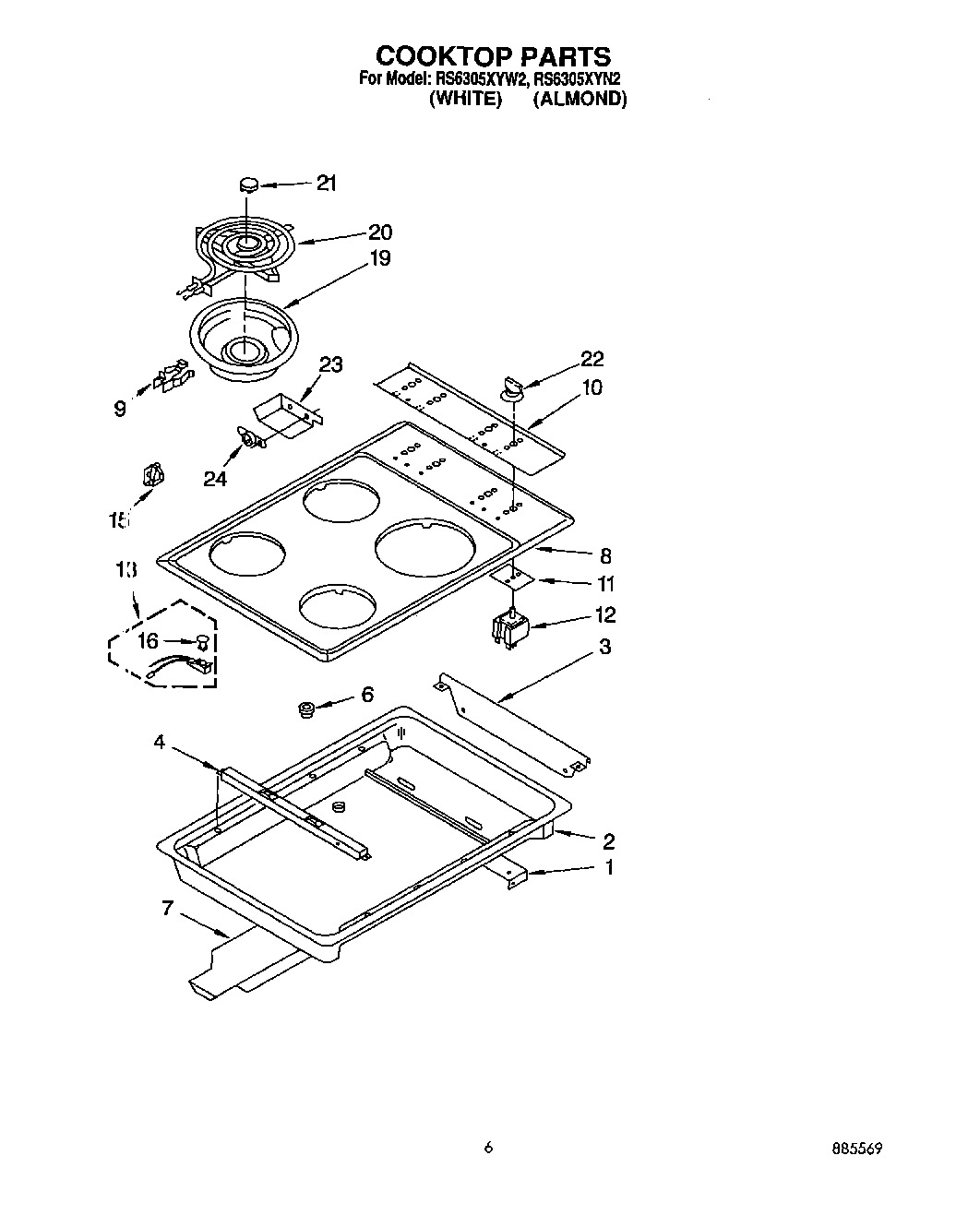

RS6305XYN2 04 – COOKTOP

Products

Position	Product
1	Support, Box
2	Box, Burner
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	Cover, Top Rear
7	WPL 312318
8	Cooktop (White)
8	WP488729 Whirlpool Refrigerator Door Screw
8	Cooktop (Almond)
9	WP313808 Whirlpool Screw
9	WP4332752 Whirlpool Clip
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	WP3148966 Whirlpool Infinite Switch
12	Switch, Infinite (Use W/6“ Surface Unit (2))
12	WP486579 Whirlpool Air Conditioner Screw
13	Indicator, Light (Includes No. 14)
15	814103 Whirlpool Clip
16	Lens, Light
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660533 Whirlpool Oven 8" Surface Element
20	WP660532 Whirlpool Oven Surface Element
21	Medallion (4)
22	Knob, Control (4)
23	Bracket, Sensor
24	Thermostat
