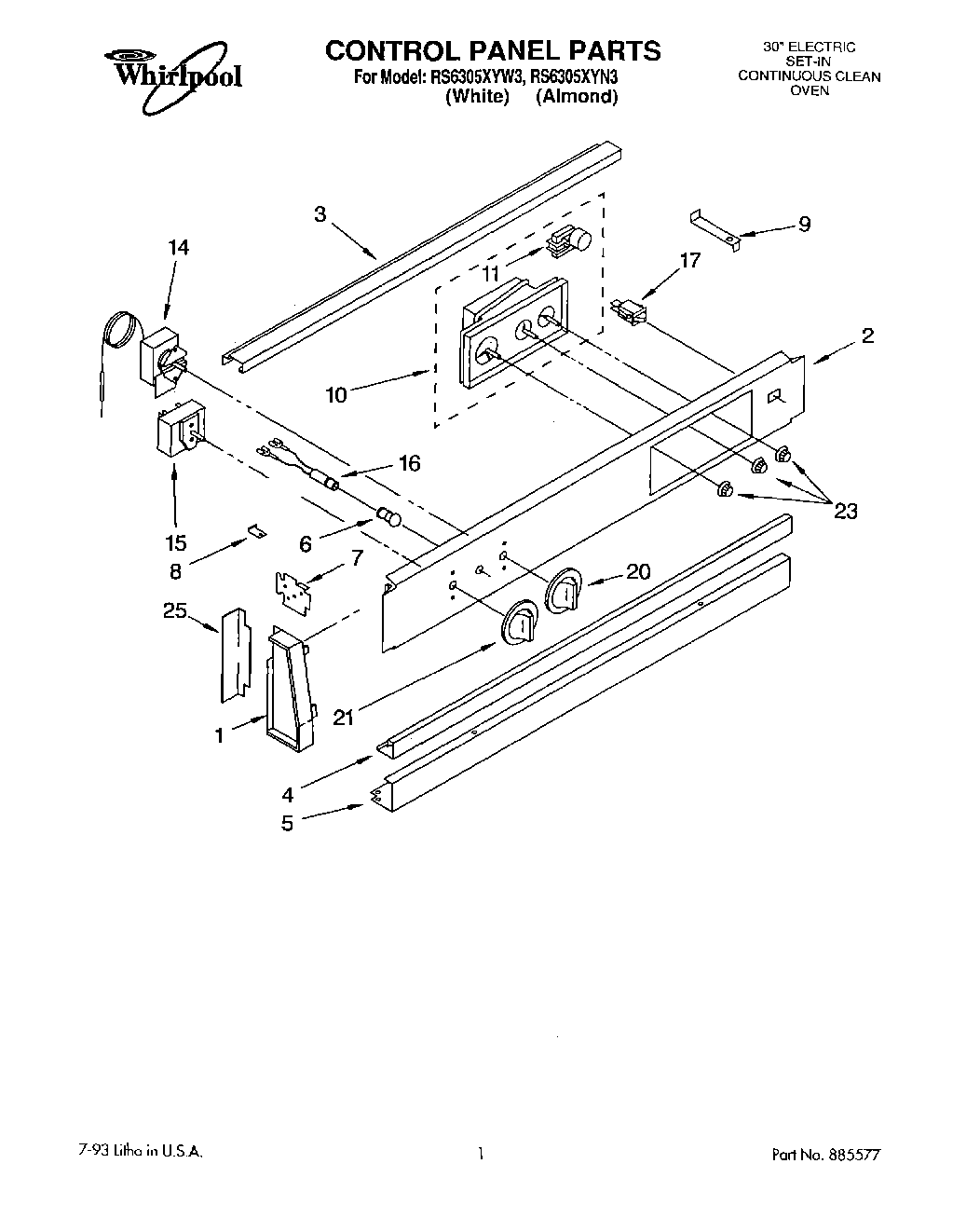

RS6305XYN3 01 – CONTROL PANEL, LITERATUREadmin2025-04-26T12:49:08+00:00RS6305XYN3 01 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Use & Care Guide |
| Tech Sheet |
| Installation Instructions |
| 1 | End Cap (L.H.) |
| 1 | End Cap (R.H.) |
| 1 | Screw (2) |
| 2 | Panel, Control |
| 3 | Rail, Top |
| 4 | Trim, Center |
| 5 | Rail, Bottom |
| 6 | Lens, Amber |
| 7 | Cover, Side (Right Hand) |
| 7 | Cover, Side (Left Hand) |
| 8 | Screw, 10-32 x 1/2 |
| 8 | Bracket, Support |
| 9 | Support, Rail |
| 10 | Screw (2) |
| 10 | Timer, Auto |
| 11 | Motor, Timer |
| 14 | Screw |
| 14 | Thermostat, Oven |
| 15 | Switch, Selector (4 Position) |
| 16 | Light, Indicator (250V) |
| 17 | WP965173 Whirlpool Dishwasher Screw |
| 17 | Switch, Rocker |
| 20 | Knob, Thermostat |
| 21 | Knob, Selector |
| 23 | WP3169181 Whirlpool Knob |
| 25 | Trim, End Cap (Black) |
