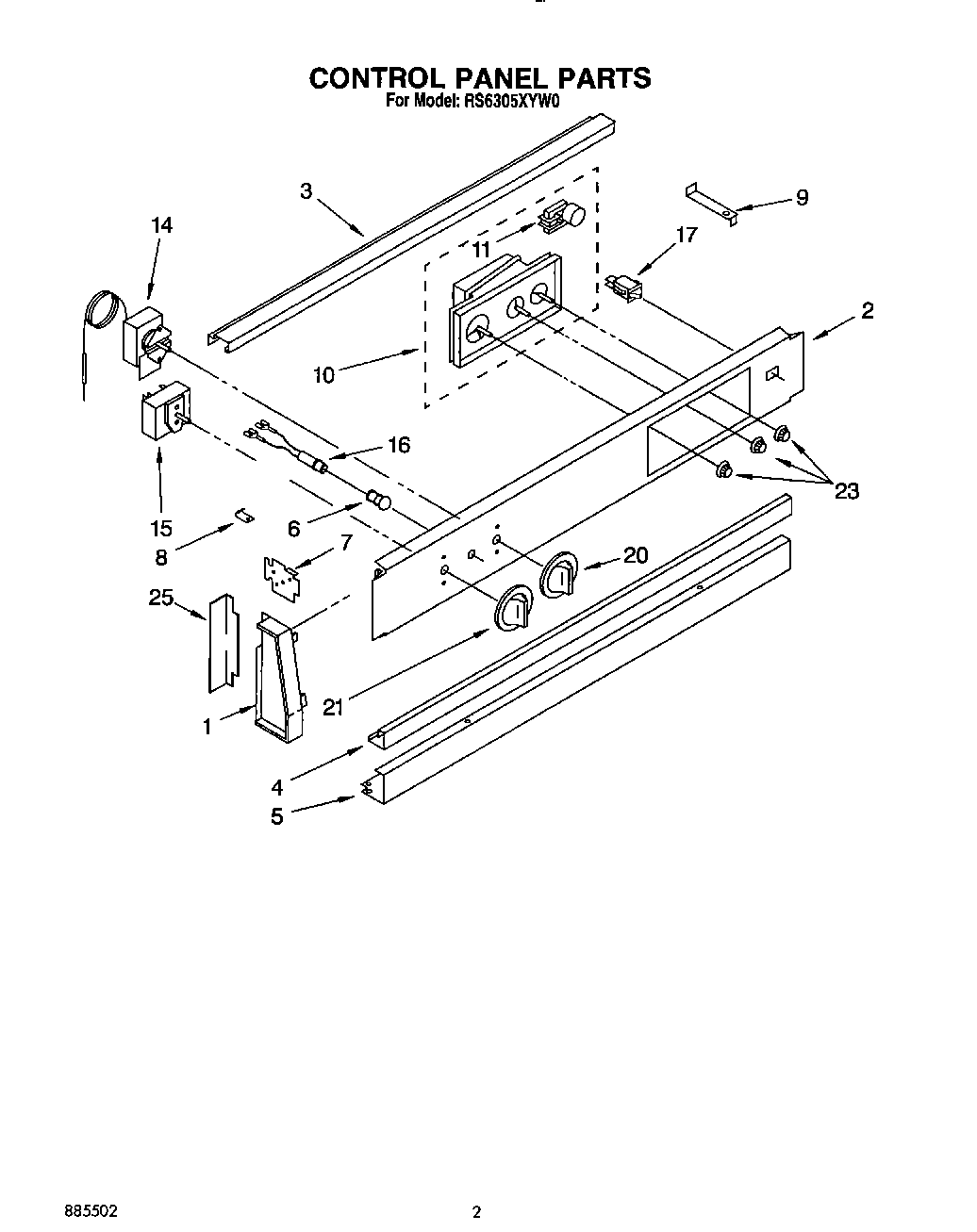

RS6305XYW0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Installation Instructions
	Tech Sheet
	Repair Parts List
	Use & Care Guide
1	End Cap (L.H.)
1	End Cap (R.H.)
1	Screw (2)
2	Panel, Control
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
6	Lens, Amber
7	Cover, Side (Left Hand)
7	Cover, Side (Right Hand)
8	Bracket, Support
8	Screw, 10-32 x 1/2
9	Support, Rail
10	Screw (2)
10	Timer, Auto
11	Motor, Timer
14	Thermostat, Oven
14	WP313808 Whirlpool Screw
15	Switch, Selector (4 Position)
15	Screw (2)
16	Light, Indicator (250V)
17	Switch, Rocker
17	WP965173 Whirlpool Dishwasher Screw
20	Knob, Thermostat
21	Knob, Selector
21	WP688805 Whirlpool Spring Clip
23	WP3169181 Whirlpool Knob
25	Trim, End Cap (Black)
