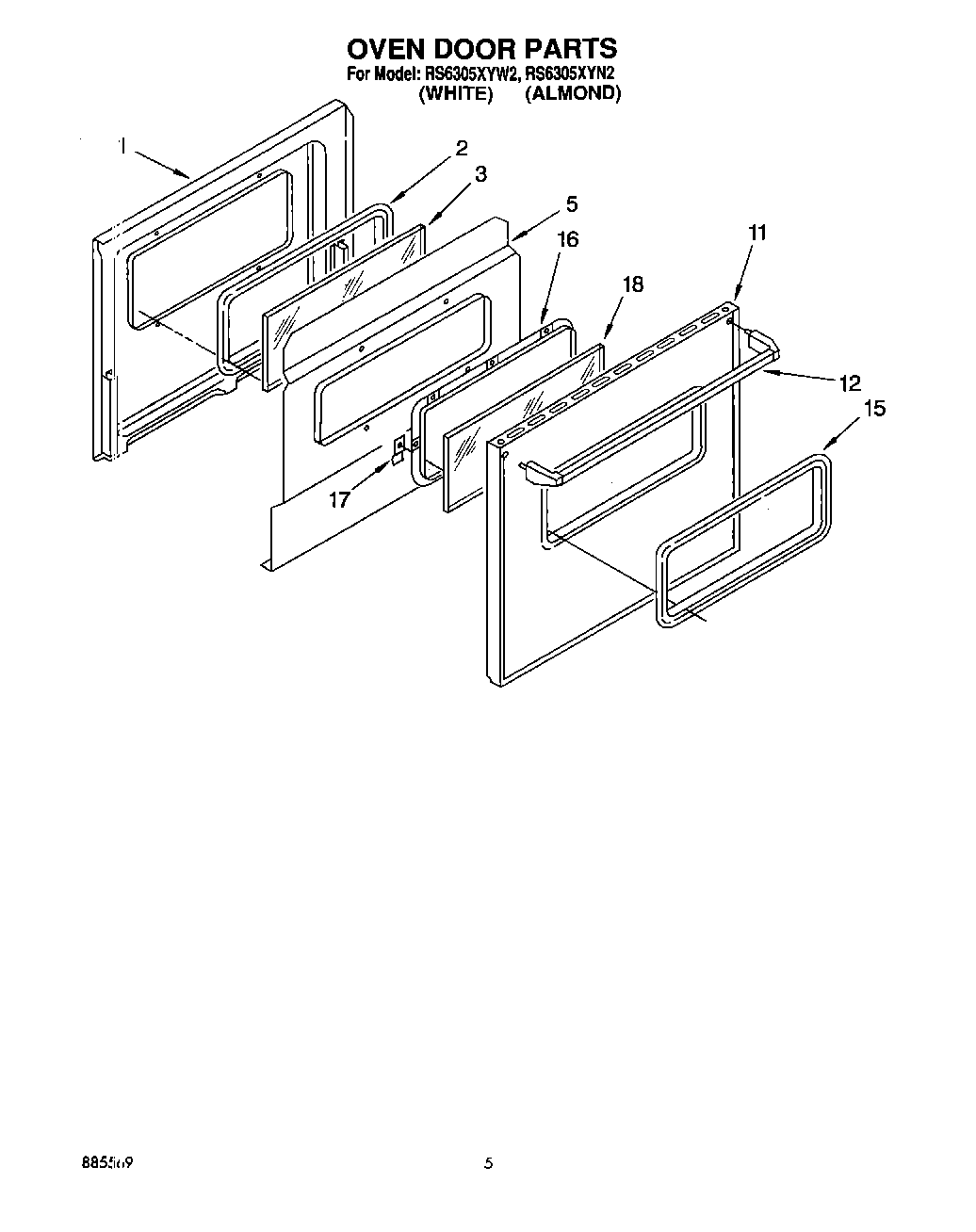

RS6305XYW2 03 – OVEN DOORadmin2025-04-26T10:58:16+00:00RS6305XYW2 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP488627 Whirlpool Refrigerator Screw |
| 1 | Screw (3) |
| 1 | Screw, 10A x 1/2 (2) (Black) |
| 1 | Liner, Door |
| 2 | Seal, Door |
| 3 | Glass, Clear |
| 5 | Screw |
| 5 | Retainer, Insulation |
| 11 | Panel, Door (White) |
| 11 | Panel, Door (Almond) |
| 12 | Handle, Door |
| 15 | Window, Frame |
| 15 | Screw |
| 16 | Retainer, Glass |
| 17 | Clip, Frame |
| 18 | Glass, Outer |
| 18 | Hinge-Lt. or Rt. |
