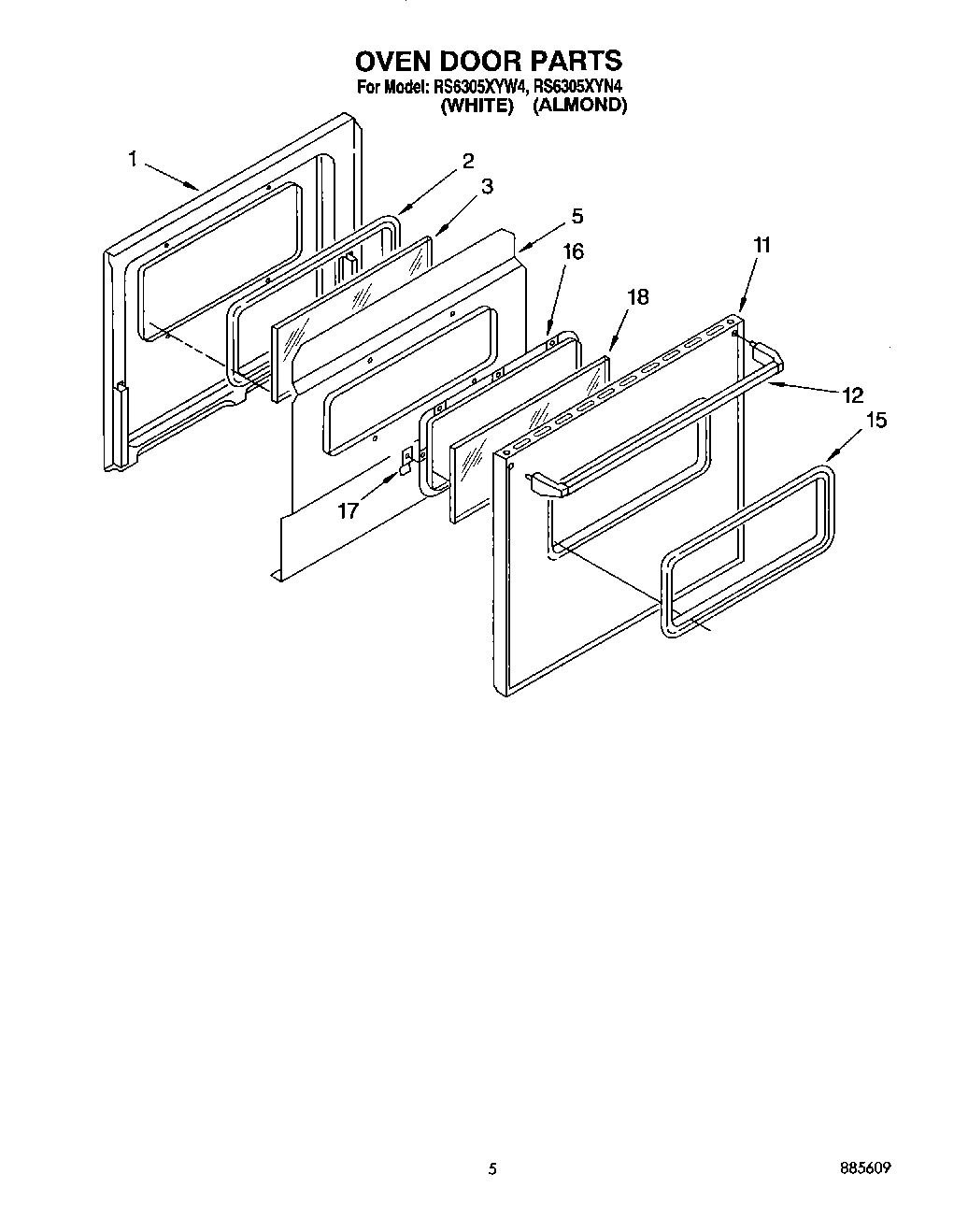

RS6305XYW4 03 – OVEN DOOR

Products

Position	Product
1	WP488627 Whirlpool Refrigerator Screw
1	Liner, Door
1	Screw, 10A x 1/2 (2) (Black)
1	Screw (3)
2	Seal, Door
3	Glass, Clear
5	Screw
5	Retainer, Insulation
11	Panel, Door (Almond)
11	Panel, Door (White)
12	Handle, Door
12	Back Splash (Screw (4) 10AB x 1/2“)
12	WP308499 Whirlpool Nut
15	Window, Frame
15	Screw
16	Retainer, Glass
17	Clip, Frame
18	Hinge-Lt. or Rt.
18	Glass, Outer
