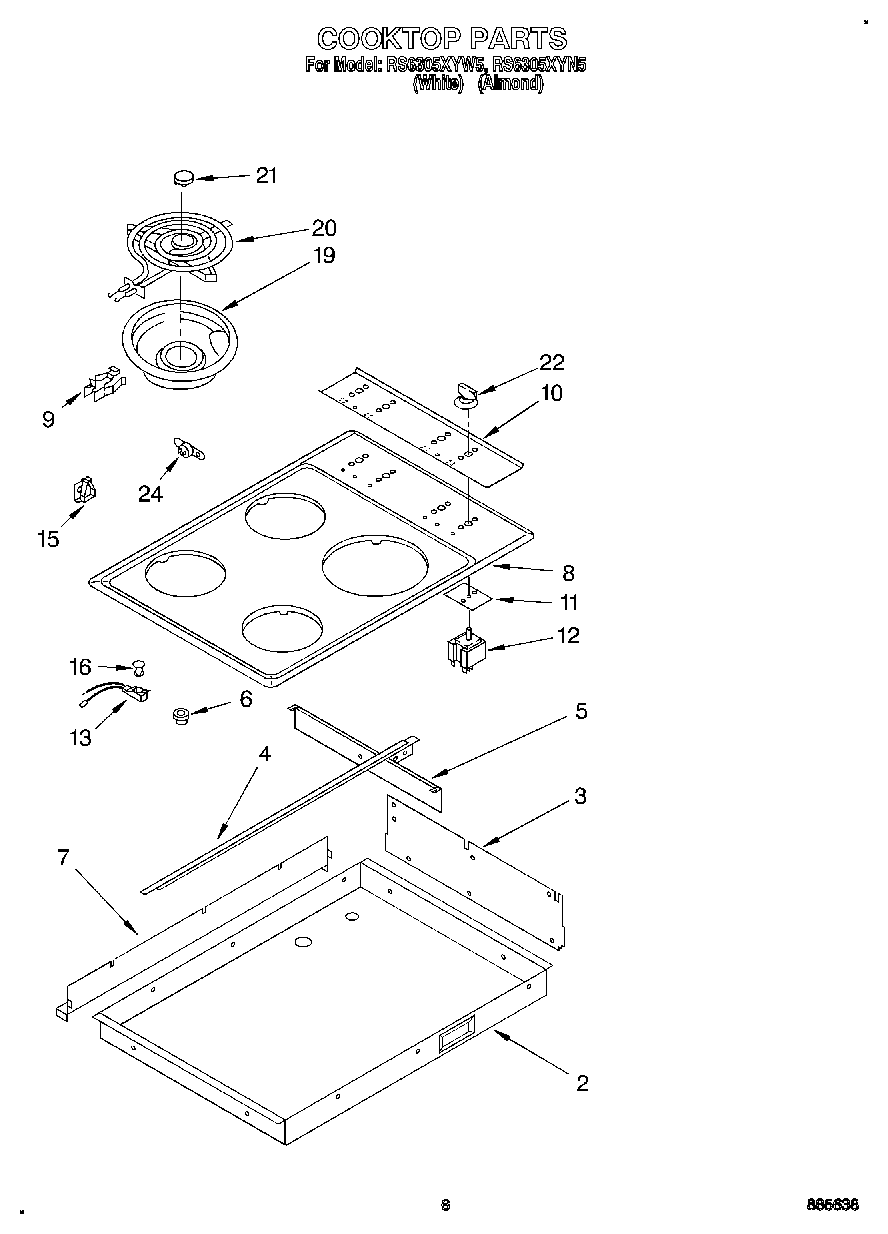

RS6305XYW5 04 – COOKTOP

Products

Position	Product
2	Box, Burner
3	Plate, Mounting
4	Bracket, Mounting
5	Shield, Heat
6	WPL 258109
7	Cover, Rear
7	Screw (6)
8	Cooktop (Almond)
8	Cooktop (White)
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP4332752 Whirlpool Clip
9	WP313808 Whirlpool Screw
10	Panel, Control
11	3183956 Whirlpool Oven Seal Switch
12	WP486579 Whirlpool Air Conditioner Screw
12	Switch, Infinite (Use W/6“ Surface Unit (2))
12	WP3148966 Whirlpool Infinite Switch
13	Light, Indicator
15	814103 Whirlpool Clip
16	Lens, Light
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	Knob, Control (4)
24	WP3188286 Whirlpool Thermostat
