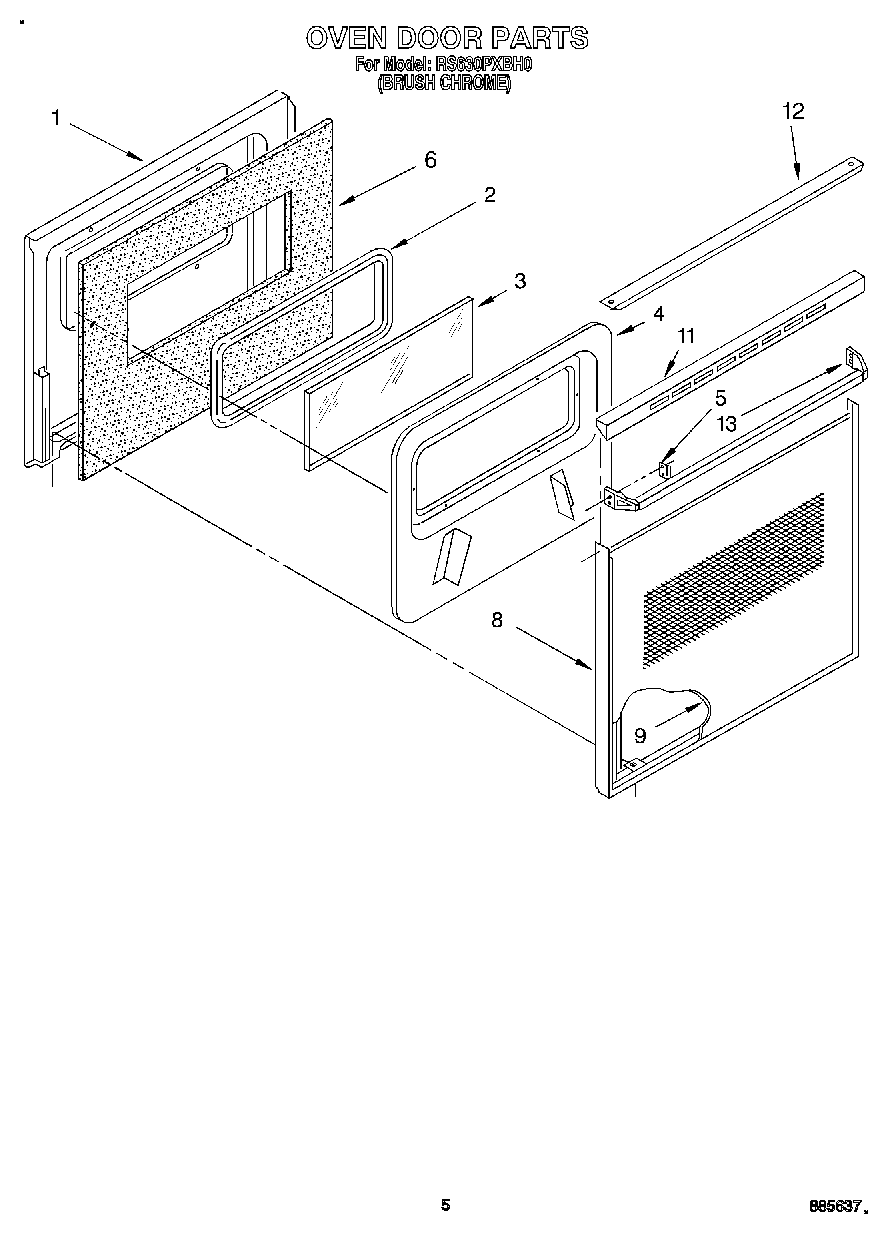

RS630PXBH0 04 – OVEN DOOR

RS630PXBH0 04 – OVEN DOOR

Written by

in

RS630PXBH0 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Screw
4	Retainer, Insulation
5	Clip, Mtg (2)
6	Insulation
8	Frame, Door
8	Screw, 10A x 1/2 (2) (Black)
9	Glass, Panel (Black)
11	Back Splash (Screw (4) 10AB x 1/2“)
11	Top, Door (Black Model)
12	Cap, Top (Black Model)
13	WP355515 Whirlpool Screw
13	Handle, Door (Black)
