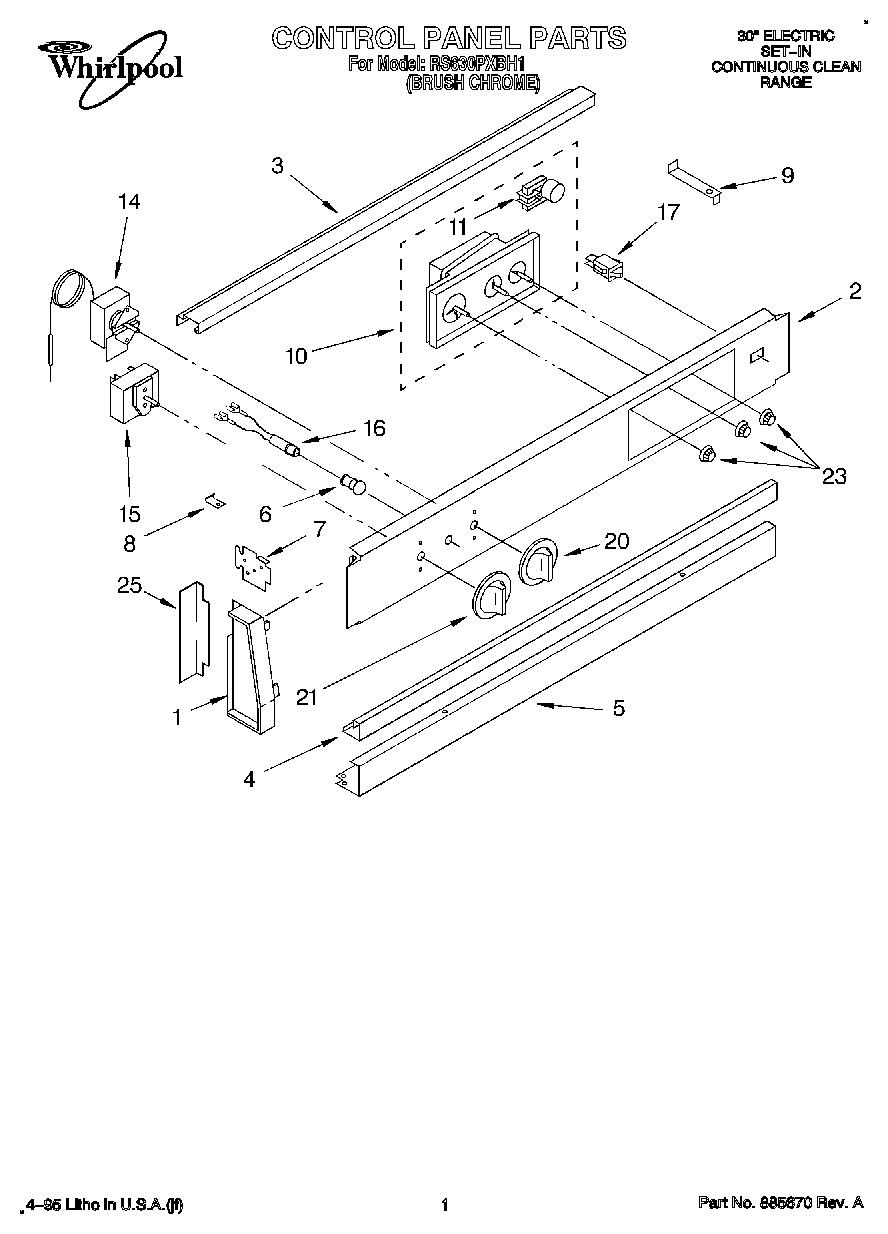

RS630PXBH1 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Tech Sheet
Use & Care Guide
Installation Instructions
1End Cap (L.H.)
1End Cap (R.H.)
2Panel, Control
3Rail, Top
4Trim, Center
5Rail, Bottom
5Screw (2)
5Screw, 10-32 x 1/2
6Lens, Amber
7Cover, Side (Left Hand)
7Cover, Side (Right Hand)
8Bracket, Support
9WP965173 Whirlpool Dishwasher Screw
9Support, Rail
10Timer, Auto
11Motor, Timer
14Thermostat, Oven
14Screw
15Switch, Selector (4 Position)
15Screw
16Light, Indicator (250V)
17Switch, Rocker
20Knob, Thermostat
21Knob, Selector
23WP3169181 Whirlpool Knob
25Trim, End Cap (Black)
