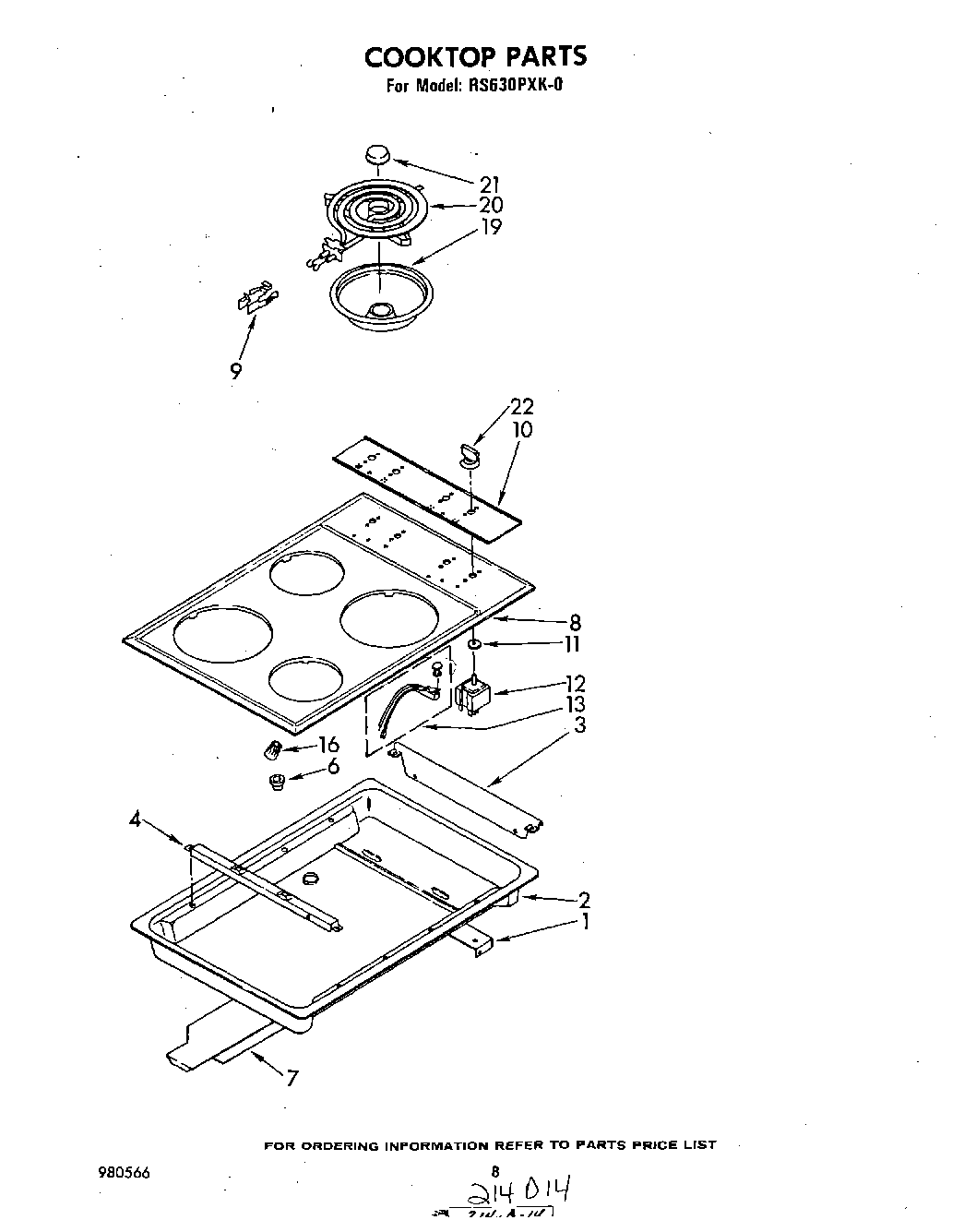

| 1 | Support, Box |
| 2 | Burner Box |
| 3 | Shield, Switch |
| 4 | Support, Cooktop |
| 6 | WPL 258109 |
| 7 | WP308685 Whirlpool Microwave Screw |
| 7 | Cover, Top Rear |
| 8 | Screw, 10-32 x 1/2 |
| 8 | Screw |
| 8 | Cooktop, Chrome |
| 9 | BURNER RECEPTACLE KIT |
| 9 | WP313808 Whirlpool Screw |
| 10 | Panel, Control |
| 11 | Seal, Switch Shaft (2) |
| 12 | Switch, Infinite (Screw, 8-32 x 5/16 (8)) |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 13 | Indicator Light (2) (Includes Lens) |
| 16 | Connector, Wire |
| 19 | DRIP BOWL 8" W/HOLE CHROME |
| 19 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 20 | WP660533 Whirlpool Oven 8" Surface Element |
| 21 | Medallion (4) |
| 22 | WP330190 Whirlpool Knob |
