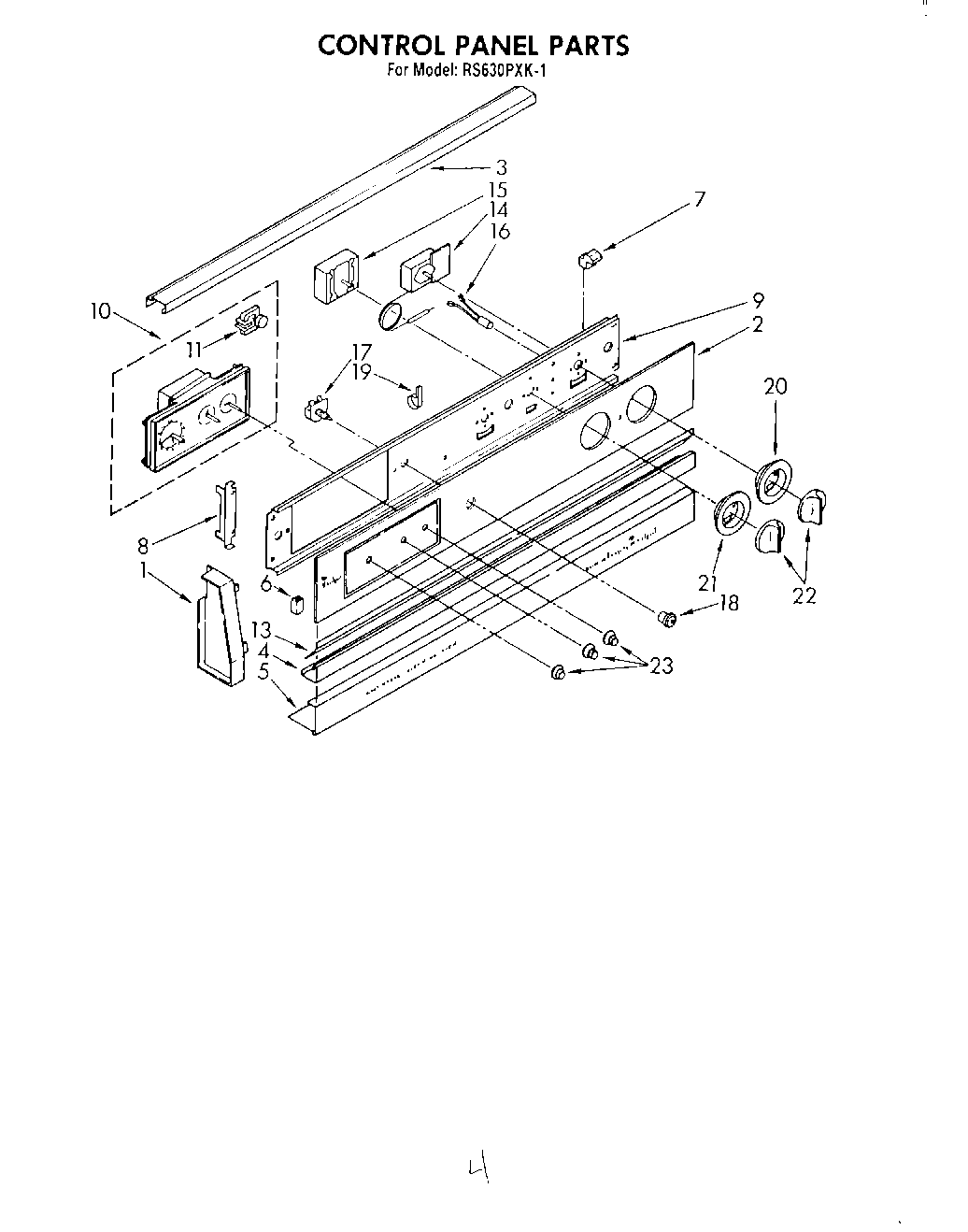

RS630PXK1 04 – CONTROL PANEL

Products

Position	Product
	screw, 6-32 x 1/4 (2)
1	End Cap (L.H.)
1	Screw (2)
1	Screw, 10-32 x 1/2
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
6	Rubber Channel (2) (Black Model Only)
7	Retainer, Glass (4)
8	Bracket, Control Panel (2)
8	Screw (2)
9	Clip
9	Bracket, Control
10	Timer, Automatic (Alternate)
11	Motor, Timer
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch (4 Position)
16	Indicator Light (250V)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	WP308605 Whirlpool Refrigerator Clamp
19	Screw
19	WP965173 Whirlpool Dishwasher Screw
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
