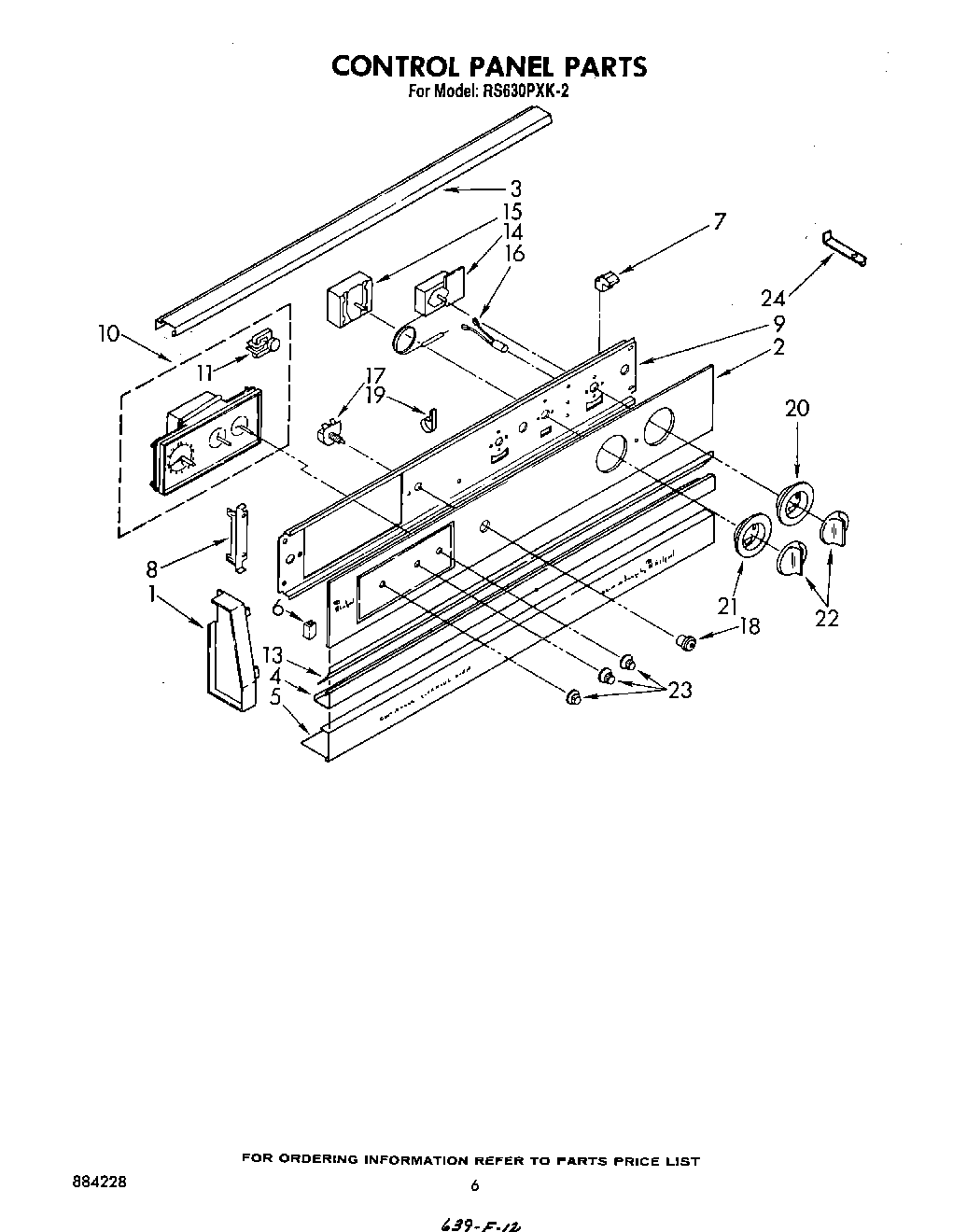

RS630PXK2 04 – CONTROL PANELadmin2025-04-26T12:50:09+00:00RS630PXK2 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| screw, 6-32 x 1/4 (2) |
| 1 | End Cap (L.H.) |
| 1 | Screw (2) |
| 1 | Screw, 10-32 x 1/2 |
| 1 | End Cap (R.H.) |
| 2 | Control Panel, Glass |
| 3 | Rail, Top |
| 4 | Trim, Center |
| 5 | Rail, Bottom |
| 6 | Rubber Channel (2) (Black Model Only) |
| 7 | Retainer, Glass (4) |
| 8 | Screw (2) |
| 8 | Bracket, Control Panel (2) |
| 9 | Clip |
| 9 | Bracket, Control |
| 10 | Timer, Automatic (Alternate) |
| 11 | Motor, Timer |
| 13 | Rail, Top (Seal, Backguard) |
| 14 | Thermostat, Oven |
| 14 | Thermostat, Oven (Alt.) |
| 14 | Thermostat, Oven (Alt.) |
| 15 | Selector Switch (4 Position) |
| 15 | WP486579 Whirlpool Air Conditioner Screw |
| 16 | Indicator Light (250V) |
| 17 | Lockwasher |
| 17 | Switch, Oven Light |
| 18 | Bezel Switch (1) |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Screw |
| 19 | WP308605 Whirlpool Refrigerator Clamp |
| 20 | Escutcheon, Thermostat |
| 21 | WP311069 Whirlpool Oven Dial |
| 21 | Screw, |
| 22 | WP3150371 Whirlpool Control Knob |
| 23 | WP3169181 Whirlpool Knob |
| 23 | Spring (3) |
| 24 | Support, Rail |
