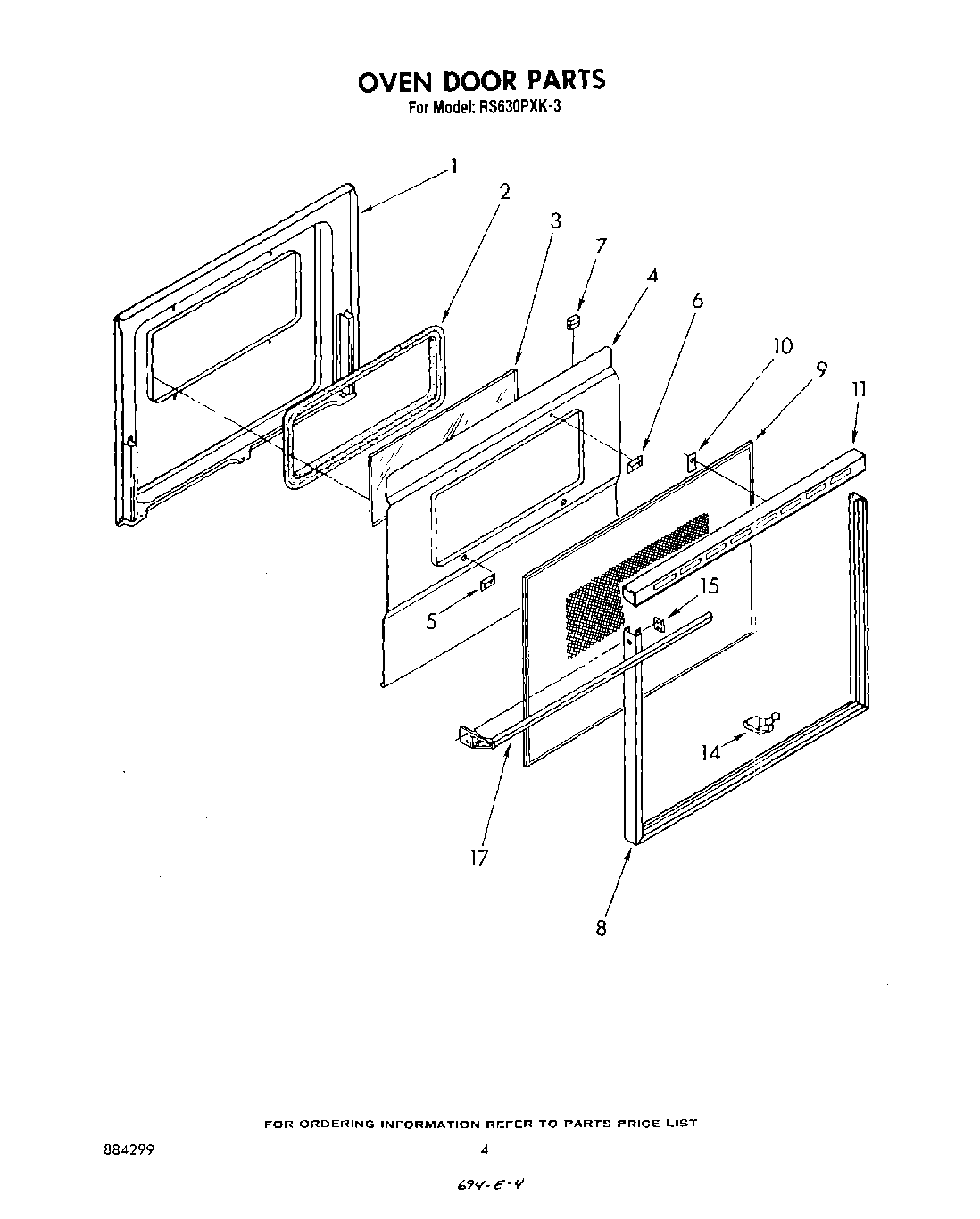

RS630PXK3 03 – OVEN DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT311433
	WPL LIT311410
	List, Repair Parts
1	liner, door
1	pin, wedge (2)
1	Screw (3)
1	pushnut (2)
2	seal, pano glass
3	glass, inner 30“
4	baffle, insulation
6	WP488729 Whirlpool Refrigerator Door Screw
6	spacer, insulation baffle (4)
7	Channel, Rubber (4)
8	frame, door 30“
9	Glass, Outer
10	hold down, glass (2)
11	Screw, 10A x 1/2 (2) (Black)
11	WP90296 Whirlpool Clip
11	Top, Door Frame
14	clip, glass (10)
15	Clip (2)
17	Grease
17	Handle, Oven Door
17	Wire, 25` Roll (Red 14 Ga.)
17	WP355515 Whirlpool Screw
17	Wire (12 Ga. 150 c Black)
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	Wire, 25` Roll (Black 14 Ga.)
17	Wire, 25“ Roll (White 14 GA.)
17	Touch-Up Oven (1 Oz.)
17	242831 Whirlpool Oven Wire
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Yellow)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	WPW10208653 Whirlpool Insulation
