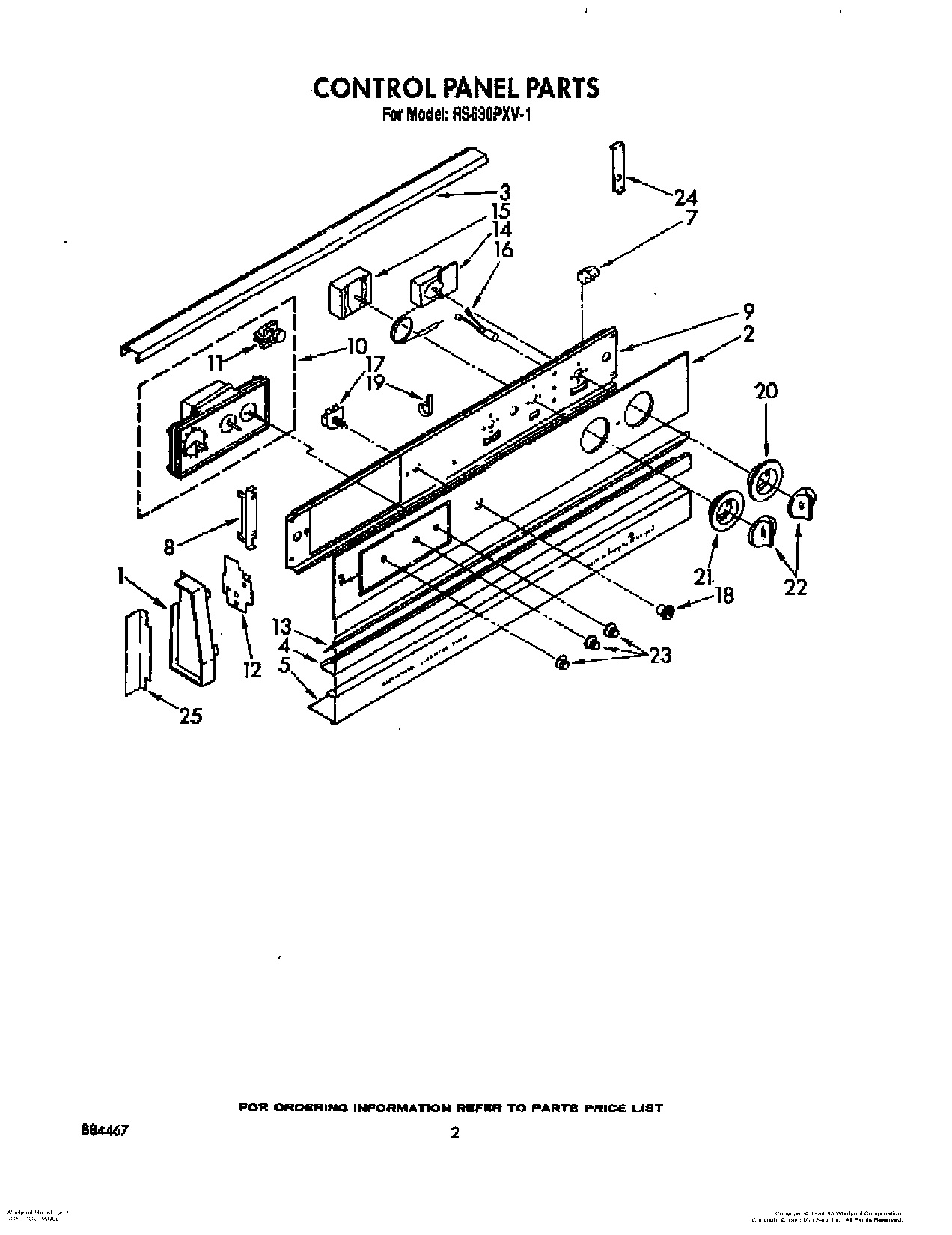

RS630PXV1 02 – CONTROL PANEL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
1	Screw (2)
1	End Cap (R.H.)
1	End Cap (L.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Screw, 10-32 x 1/2
5	Rail, Bottom
7	Retainer, Glass (4)
8	Bracket, Control (2)
8	Screw (2)
9	Bracket, Control
9	Clip
10	Timer, Clock (Includes No.6)
11	Motor, Timer
12	Cover, Side (Left Hand)
12	Cover, Side (Right Hand)
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
15	Selector Switch (4 Position)
15	WP486579 Whirlpool Air Conditioner Screw
16	Indicator Light (4)
17	Switch, Oven Light
17	Lockwasher
18	Bezel Switch (1)
19	Screw
19	WP965173 Whirlpool Dishwasher Screw
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	WP3169181 Whirlpool Knob
23	Spring (3)
24	Support, Rail
25	Trim, End Cap (Black)
