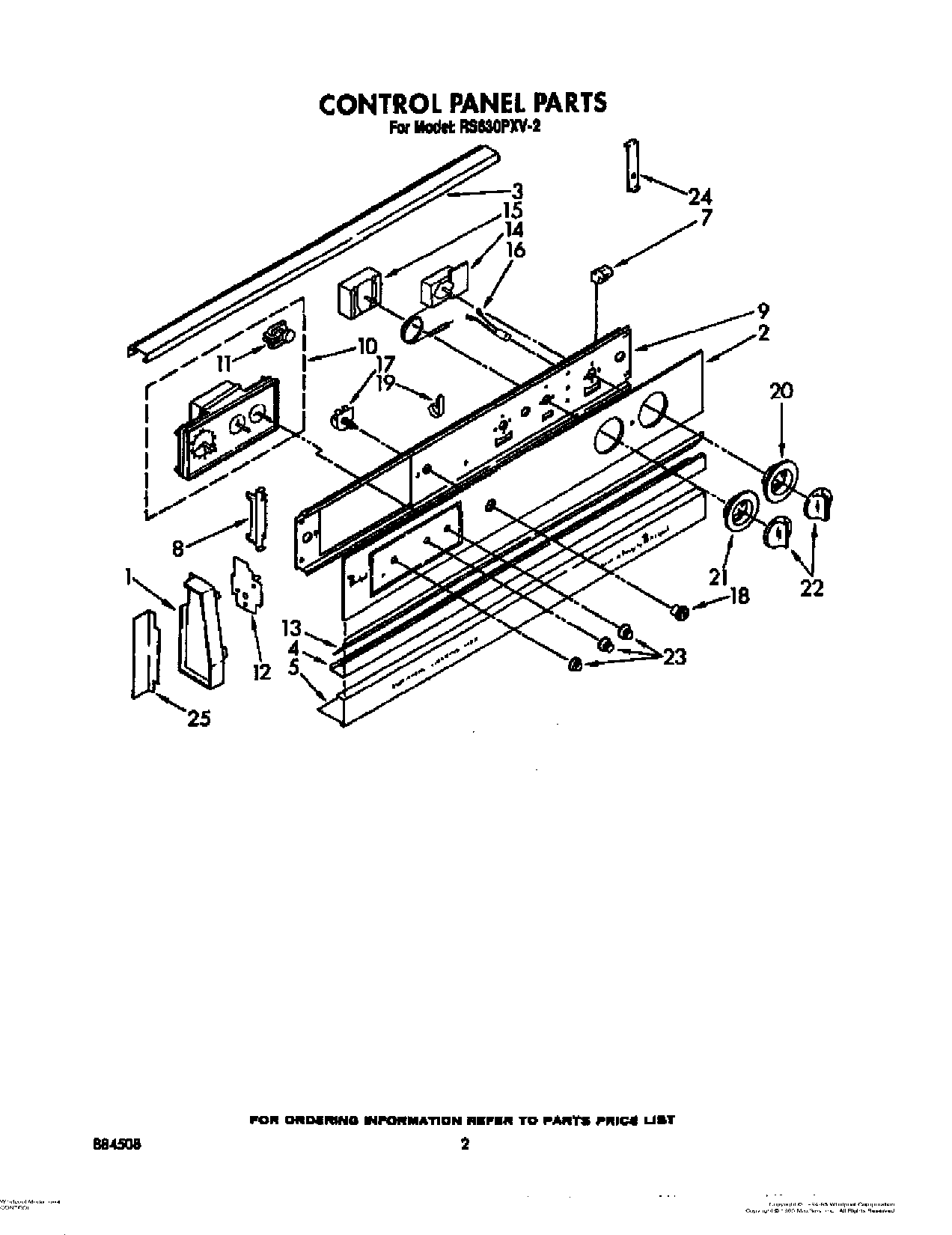

RS630PXV2 02 – CONTROL

Products

Position	Product
NI	screw, 6-32 x 1/4 (2)
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	End Cap (L.H.)
1	End Cap (R.H.)
1	Screw (2)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw, 10-32 x 1/2
7	Retainer, Glass (4)
8	Bracket, Control (2)
8	Screw (2)
9	Clip
9	Bracket, Control
10	Timer, Clock (Includes No.6)
11	Motor, Timer
12	Cover, Side (Right Hand)
12	Cover, Side (Left Hand)
13	Rail, Top (Seal, Backguard)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven (Alt.)
14	Thermostat, Oven
15	WP486579 Whirlpool Air Conditioner Screw
15	Selector Switch (4 Position)
16	Indicator Light (4)
17	Lockwasher
17	Switch, Oven Light
18	Bezel Switch (1)
19	WP965173 Whirlpool Dishwasher Screw
19	Screw
19	WP308605 Whirlpool Refrigerator Clamp
20	Escutcheon, Thermostat
21	Screw,
21	WP311069 Whirlpool Oven Dial
22	WP3150371 Whirlpool Control Knob
23	Spring (3)
23	WP3169181 Whirlpool Knob
24	Support, Rail
25	Trim, End Cap (Black)
