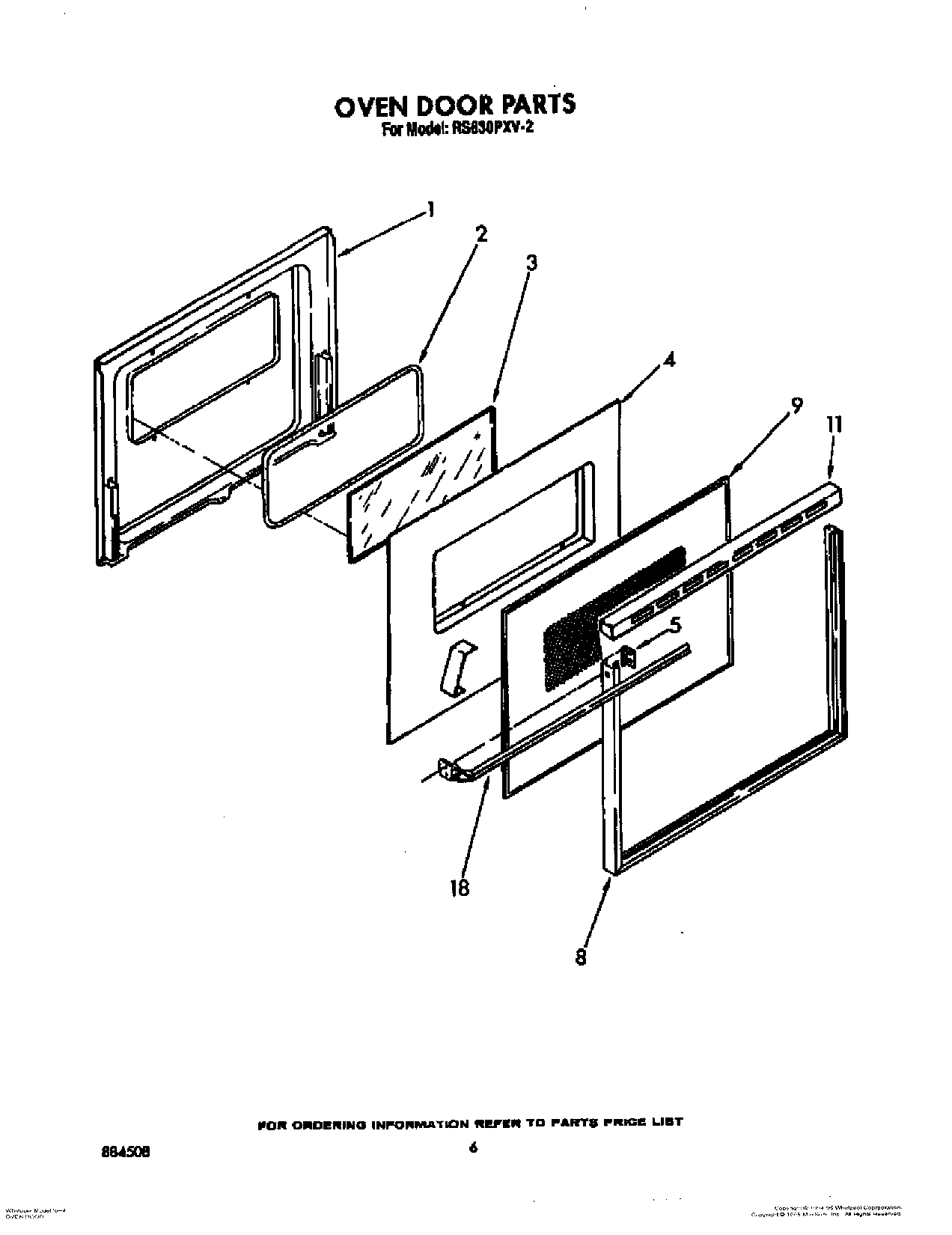

RS630PXV2 05 – OVEN DOOR, OPTIONALadmin2025-04-26T12:48:06+00:00RS630PXV2 05 – OVEN DOOR, OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT313358 |
| WPL LIT3147390 |
| WPL ARI124548A |
| Guide, Use & Care |
| WPL LIT884508 |
| 1 | Liner, Door |
| 1 | Screw |
| 2 | Seal, Door |
| 3 | Glass, Inner |
| 4 | Retainer, Insulation |
| 5 | Clip, Mtg (2) |
| 8 | Frame, Door |
| 8 | Screw, 10A x 1/2 (2) (Black) |
| 9 | Glass, Panel (Black Model) |
| 11 | Back Splash (Screw (4) 10AB x 1/2``) |
| 11 | Top, Door (Black Model) |
| 18 | Wire (12 Ga. 150 c Black) |
| 18 | 18 Ga. 80~c Rating (Red) |
| 18 | Wire (14 Ga. 200 c Brown) |
| 18 | Wire (14 Ga. 150 c Yellow) |
| 18 | 1 |
| 18 | Enamel, Coffee (1 Qt. Uncut) |
| 18 | WP355515 Whirlpool Screw |
| 18 | Enamel, New Avocado (1 Qt. Uncut) |
| 18 | WPL 261880 |
| 18 | Leveler (Thinner) (2oz.) |
| 18 | Grease |
| 18 | Handle, Oven Door |
| 18 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 18 | Wire (14 Ga. 150 c Orange) |
| 18 | Wire (14 Ga. 150 c Green) |
| 18 | WPL 799832 |
| 18 | 511873 Whirlpool Refrigerator Paint |
| 18 | 350942 Whirlpool Spray Paint |
| 18 | Golden Harvest (Uncut) |
| 18 | Golden Harvest |
| 18 | Almond (Uncut) |
| 18 | WP72107 Whirlpool Touchup |
| 18 | 799344 Whirlpool Refrigerator Paint |
| 18 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 18 | 350956 Whirlpool Spray Assembly |
| 18 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 18 | Wire, 25` Roll (Black 14 Ga.) |
| 18 | Wire, 25` Roll (Red 14 Ga.) |
| 18 | Wire (14 Ga. 150 c Brown) |
| 18 | Wire (14 Ga. 150 c Blue) |
| 18 | 242831 Whirlpool Oven Wire |
| 18 | Touch-Up Oven (1 Oz.) |
| 18 | Paint, Spray 13 Oz. (Avocado) |
| 18 | paint, spray 13 oz. (coffee) |
| 18 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 18 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 18 | 285006 Whirlpool Spray |
| 18 | Wire, 25`` Roll (White 14 GA.) |
| 18 | 350930 Whirlpool White Spray Paint |
