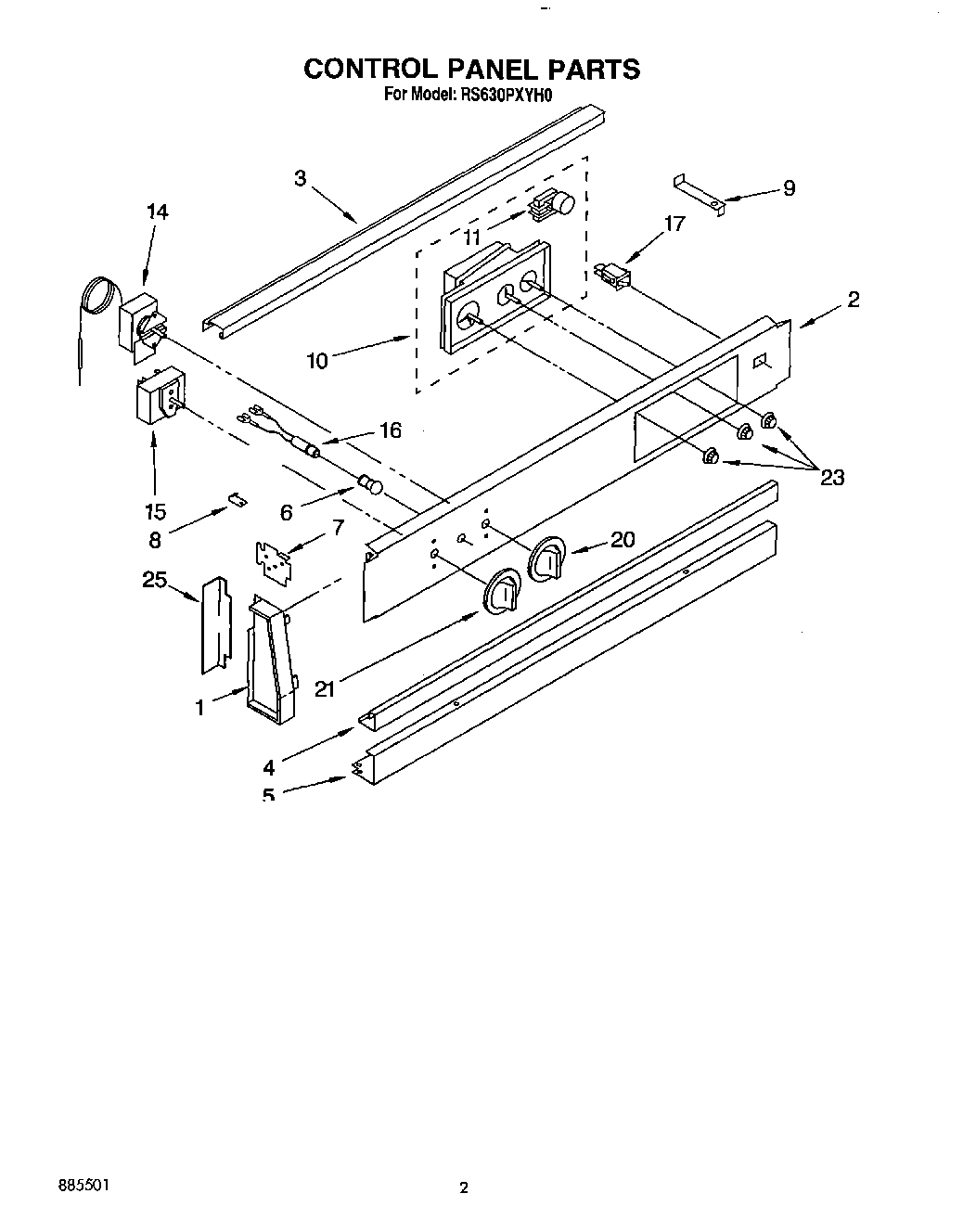

RS630PXYH0 02 – CONTROL PANEL, LIT/OPTIONAL

RS630PXYH0 02 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

RS630PXYH0 02 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Use & Care Guide
Tech Sheet
Installation Instructions
1End Cap (L.H.)
1End Cap (R.H.)
1Screw (2)
2Panel, Control
3Rail, Top
4Trim, Center
5Screw (2)
5Rail, Bottom
6Lens, Amber
7Cover, Side (Left Hand)
7Cover, Side (Right Hand)
8Bracket, Support
8Screw, 10-32 x 1/2
9Support, Rail
9WP965173 Whirlpool Dishwasher Screw
10Timer, Auto
11Motor, Timer
14WP313808 Whirlpool Screw
14Thermostat, Oven
15Screw
15Switch, Selector (4 Position)
16Light, Indicator (250V)
17Switch, Rocker
20Knob, Thermostat
21Knob, Selector
21WP688805 Whirlpool Spring Clip
23WP3169181 Whirlpool Knob
25Trim, End Cap (Black)
