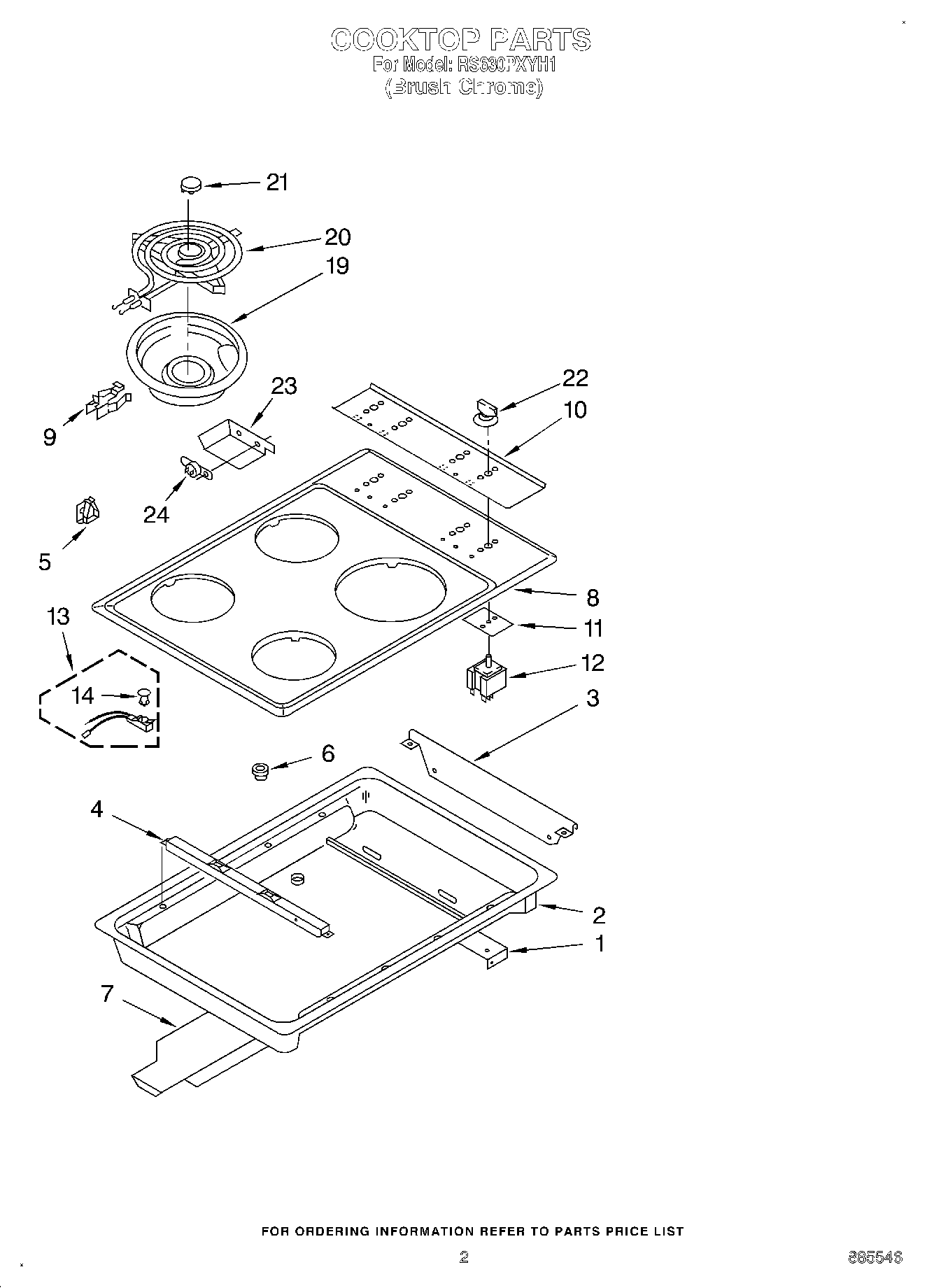

RS630PXYH1 02 – COOKTOP

Products

PositionProduct
1Support, Box
2Box, Burner
3Shield, Switch
4Support, Cooktop
4Screw, 10-32 x 1/2
6WPL 258109
7Cover, Top Rear
8WP488729 Whirlpool Refrigerator Door Screw
8Cooktop (Brushed Chrome)
8814103 Whirlpool Clip
9BURNER RECEPTACLE KIT
9WP313808 Whirlpool Screw
10Panel, Control
113183956 Whirlpool Oven Seal Switch
12Switch, Infinite (Use W/6“ Surface Unit (2))
12WP486579 Whirlpool Air Conditioner Screw
12WP3148966 Whirlpool Infinite Switch
13Indicator, Light (Includes No. 14)
14Lens, Light
19DRIP BOWL 8" W/HOLE CHROME
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
20WP660532 Whirlpool Oven Surface Element
20WP660533 Whirlpool Oven 8" Surface Element
21Medallion (4)
22Knob, Control (4)
23Bracket, Sensor
24Thermostat
