RS630PXYH3 01 – CONTROL PANEL, LITERATURE

RS630PXYH3 01 – CONTROL PANEL, LITERATURE

Written by

in

RS630PXYH3 01 – CONTROL PANEL, LITERATURE

Products

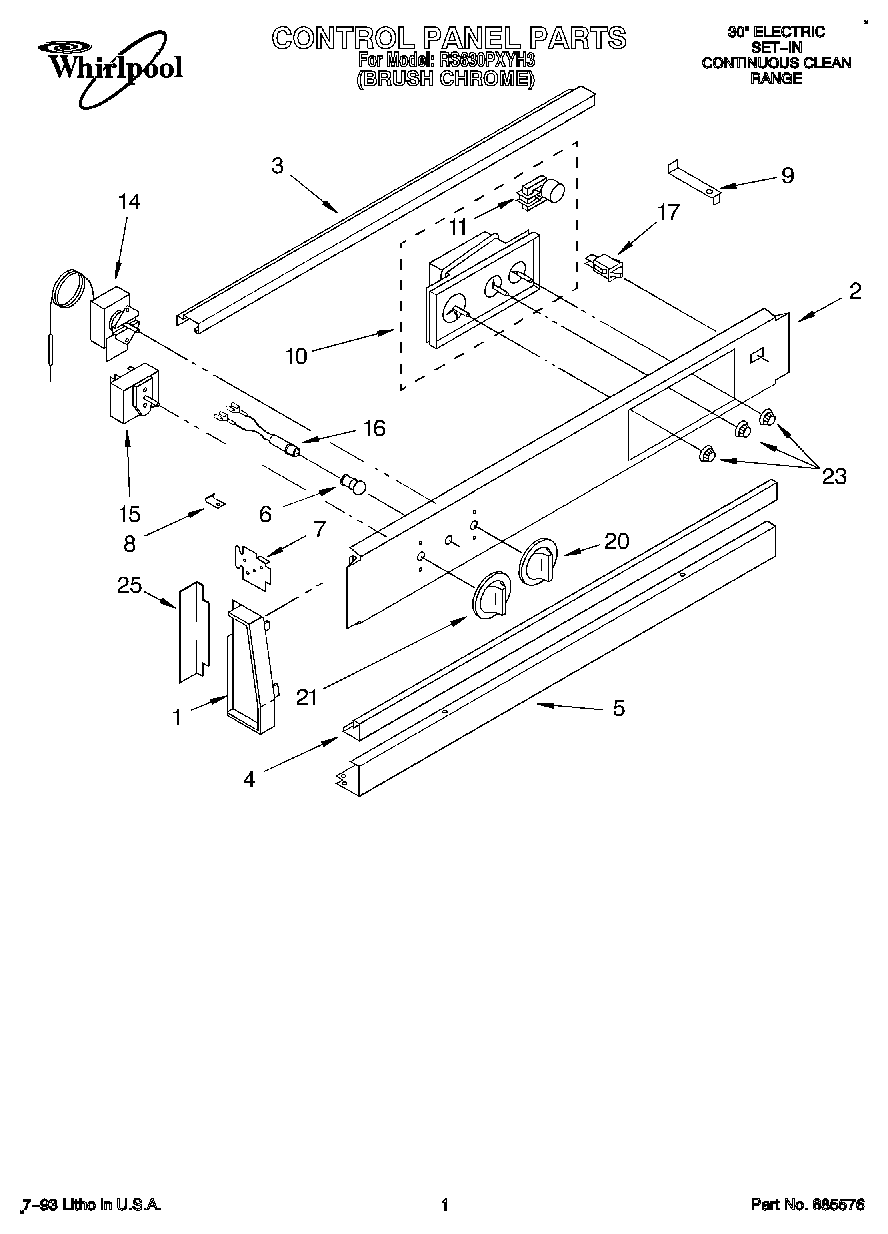

PositionProduct
Installation Instructions
Use & Care Guide
Tech Sheet
1End Cap (R.H.)
1End Cap (L.H.)
1Screw (2)
2Panel, Control
3Rail, Top
4Trim, Center
5Rail, Bottom
5Screw (2)
6Lens, Amber
7Cover, Side (Left Hand)
7Cover, Side (Right Hand)
8Screw, 10-32 x 1/2
8Bracket, Support
9Support, Rail
9WP965173 Whirlpool Dishwasher Screw
10Timer, Auto
11Motor, Timer
14WP313808 Whirlpool Screw
14Thermostat, Oven
15Switch, Selector (4 Position)
15Screw
16Light, Indicator (250V)
17Switch, Rocker
20Knob, Thermostat
21Knob, Selector
23WP3169181 Whirlpool Knob
25Trim, End Cap (Black)
