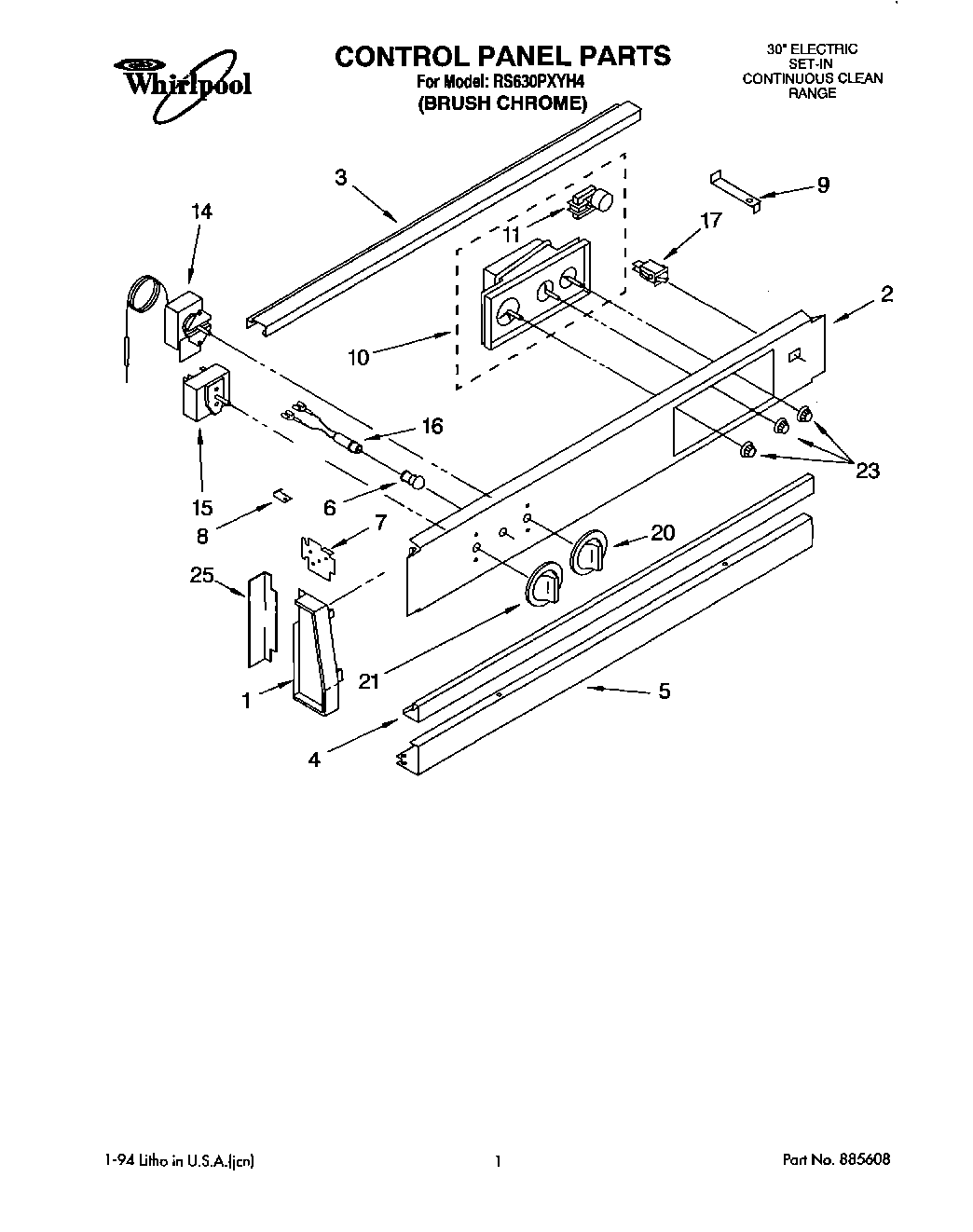

RS630PXYH4 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	WPL LIT3186658
	WPL LIT677973
	Use & Care Guide
	Installation Instructions
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Panel, Control
3	Rail, Top
4	Trim, Center
5	Rail, Bottom
5	Screw (2)
5	Screw, 10-32 x 1/2
6	Lens, Amber
7	Cover, Side (Left Hand)
7	Cover, Side (Right Hand)
8	Bracket, Support
9	WP965173 Whirlpool Dishwasher Screw
9	Support, Rail
10	Timer, Auto
11	Motor, Timer
14	WP313808 Whirlpool Screw
14	Thermostat, Oven
15	Screw
15	Switch, Selector (4 Position)
16	Light, Indicator (250V)
17	Switch, Rocker
20	Knob, Thermostat
21	Knob, Selector
23	WP3169181 Whirlpool Knob
25	Trim, End Cap (Black)
