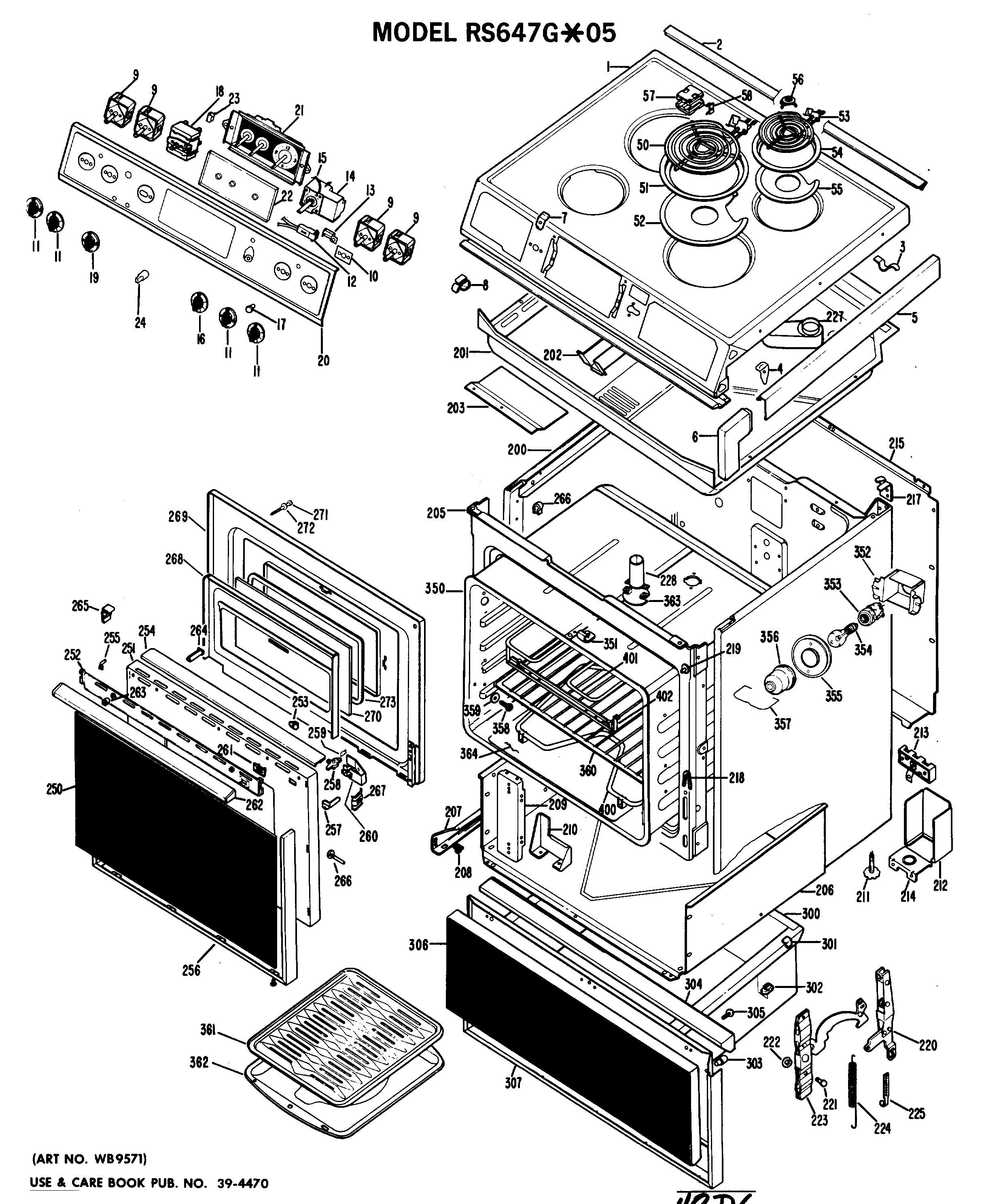

RS647G*05

RS647G*05

Written by

in

RS647G*05

Products

Position	Product
1	GEN WB02X6822
1	GEN WB62X5277
2	GEN WB07X5664
3	CLIP LEAD
4	CLIP TRIM
5	GEN WB07X6666
5	GEN WB07X6665
6	GEN WB07X6667
6	GEN WB07X6668
6	GEN WB01X0271
7	GEN WB02X6760
7	WB1X5364 GE Oven Mounting Screw
8	GEN WB02X5165
9	GEN WB02X6823
9	WB21X36771 GE Surface Element Switch
10	GEN WB02X3383
11	GEN WB03X0440
12	NEON LAMP 118V
13	CLIP MTG LAMP
14	THERMOSTAT
15	GEN WB02X6762
16	GEN WB03X5591
17	WB25X65 GE Oven Light Indicator
18	GEN WB22X0031
19	GEN WB03X0442
20	GEN WB07X6673
21	GEN WB19X0146
22	GEN WB36X0404
23	GEN WB02X2901
24	GEN WB03X0459
50	WB30X348 GE Oven 8" Surface Unit Element with Screw
51	WB31X5014 GE 8-Inch Chrome Trim Ring
52	WB32X10013 GE Oven 8" Chrome Drip Pan
53	WB1X500D GE Oven Screw Package
53	WB30X359 GE Oven Range Stove 6" Surface Element Burner Unit
54	WB31X5013 GE Oven 6" Chrome Trim Ring
55	WB32X10012 GE Oven Range Cooktop 6" Chrome Drip Pan
56	GEN WB32X0052
56	GEN WB32X0051
57	TERM BLOCK SINGLE COIL
57	WB2X1351 GE Oven Terminal Block
58	CLIP INSULATOR
200	GEN WB02X3229
200	GEN WB02X7006
201	GEN WB49X5204
202	GEN WB02X6769
203	GEN WB02X6770
205	FRAME FRONT
205	GEN WB02X6882
205	WZ4X345D GE Screw Package 12 C92
206	GEN WB49X5156
207	GUIDE DRAWER RH
207	GUIDE DRAWER LH
208	SLIDE GUIDE
209	GEN WB02X6768
210	GEN WB02X6187
211	GEN WB01X5519
211	GEN WB02X6772
211	GEN WB01X5533
212	GEN WB02X6655
213	PLATE GROUND
213	WB17X5095 GE Black Oven Terminal
214	BRACKET KNOCKOUT
215	GEN WB49X5203
217	GEN WB02X6184
217	GEN WB02X6185
218	GEN WB02X6342
219	SWITCH, OVEN LIGHT
220	GEN WB10X5090
220	GEN WB01X5497
220	GEN WB01X5471
220	GEN WB10X5091
220	WB1X119D GE Oven Range Washer
221	GEN WB02X6195
222	RING RETAINING
223	HINGE LEVER ASM RH & LH
224	GEN WB09X5075
225	HOOK DOOR SPRING
226	CLAMP HARNESS
227	BODY VENT
228	GEN WB02X6773
250	GEN WB36X5379
251	GEN WB56X5678
251	PAD
251	GEN WB02X6833
252	GEN WB07X5623
253	GEN WB02X3053
254	GEN WB07X5636
255	GEN WB02X6575
256	GEN WB07X5637
257	GEN WB02X6574
258	GEN WB02X3052
259	CAM LINK
260	GEN WB09X5083
261	GEN WB07X5624
262	GEN WB15X5102
263	GROMMET HANDLE
264	SPACER PANEL
265	GEN WB07X5631
266	WB1X558D GE Oven Screw Package
267	GEN WB02
