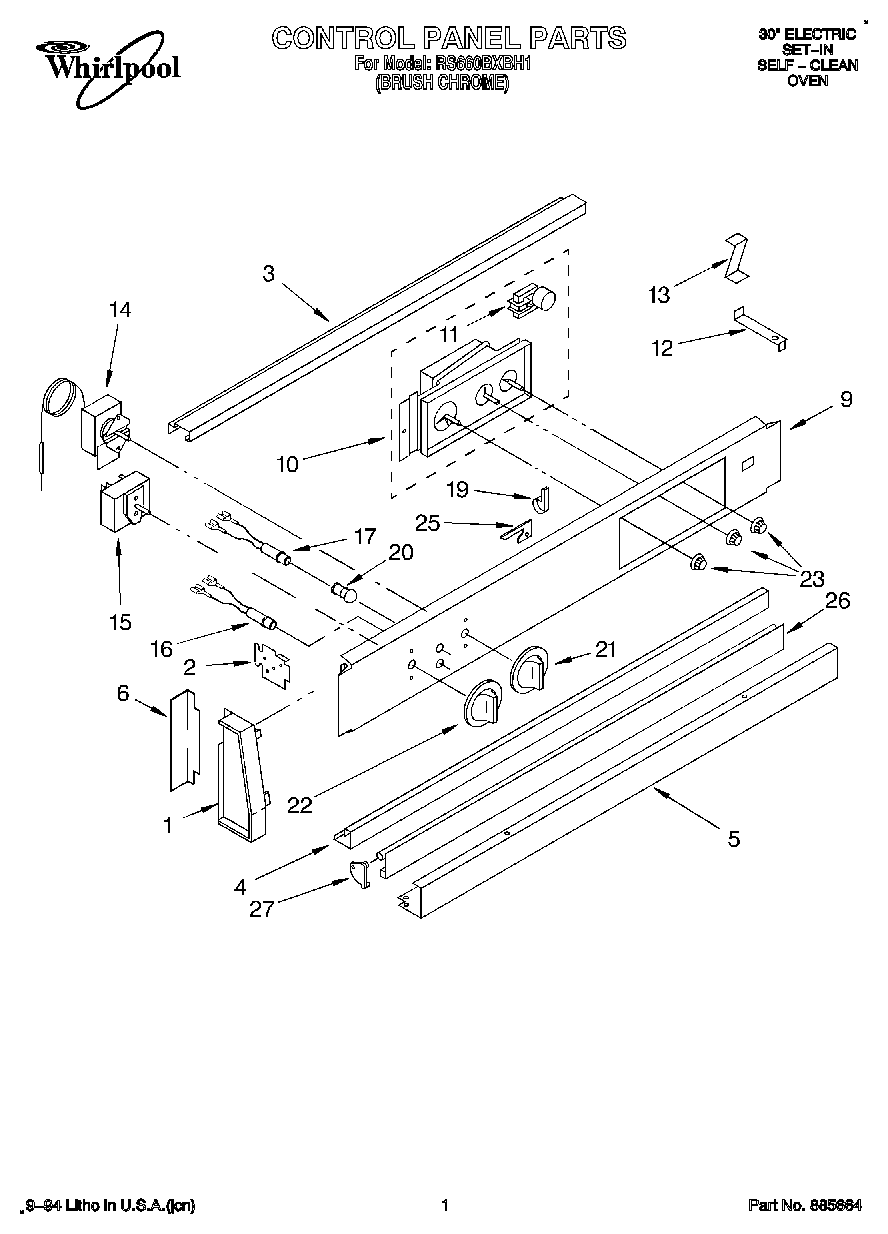

RS660BXBH1 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	Tech Sheet
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Cover, Side (Left Hand)
2	Cover, Side (Right Hand)
3	Rail, Top
4	Trim, Center (Black)
5	Trim, Bottom
6	Trim, End Cap (Black)
9	Panel, Control
10	Timer, Auto
11	Motor, Timer
12	Support, Rail
12	WP965173 Whirlpool Dishwasher Screw
13	Bracket, Control
14	Thermostat, Oven
14	Screw
15	Switch, Selector
15	Screw
16	Light, Indicator (250V)
17	Indicator Light (1)
19	488946 Whirlpool Air Conditioner Clamp
20	Lens, Amber
21	Knob (Temp) (White/Almond)
22	Knob (Selector)
23	WP3169181 Whirlpool Knob
25	Shield, Air
25	Screw (2)
26	Door, Vent (Black)
27	End Trim, Vent (Right Side)
27	End Trim, Vent (Left Side)
