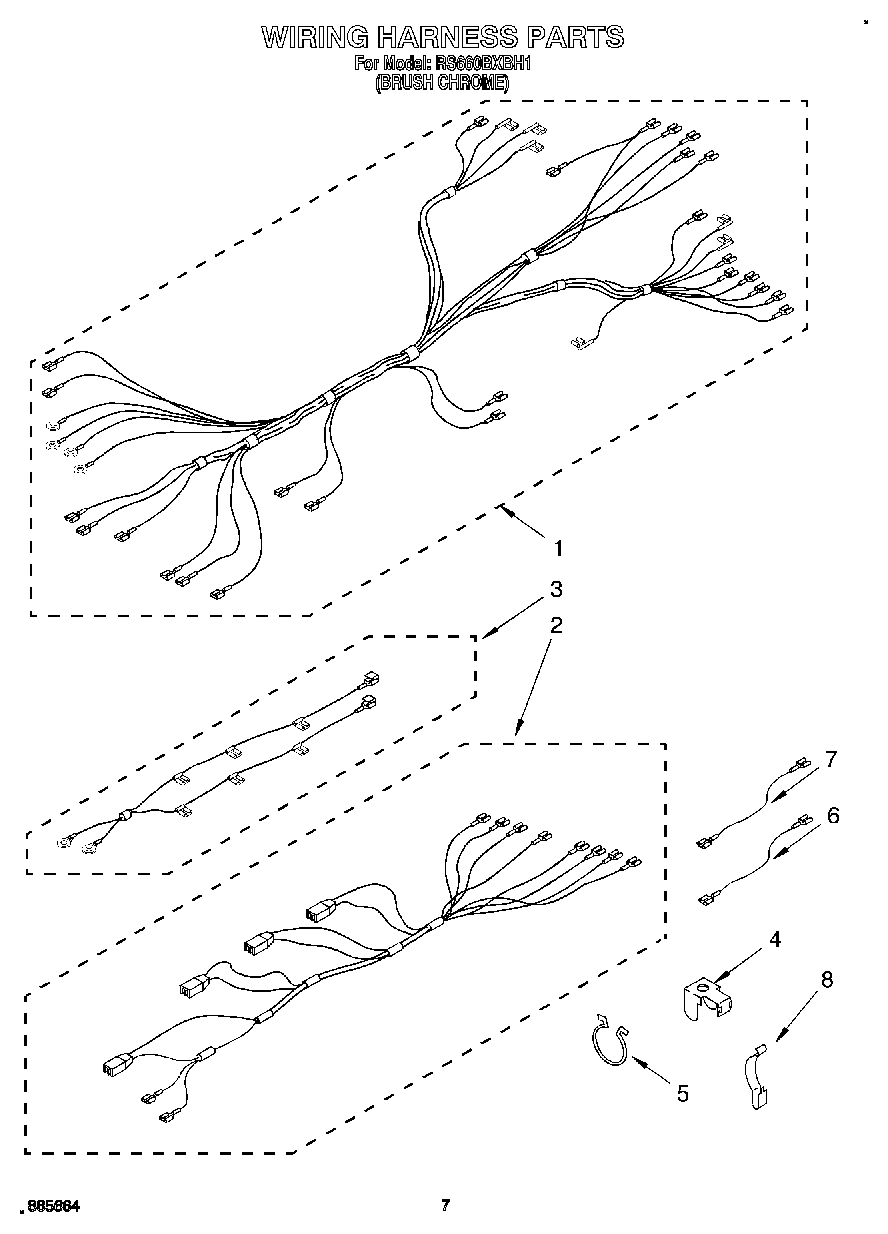

RS660BXBH1 05 – WIRING HARNESS, OPTIONALadmin2025-04-26T12:47:37+00:00RS660BXBH1 05 – WIRING HARNESS, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Harness, Wire (Oven) |
| 2 | Harness, Wire (Surface Unit) |
| 2 | WPL 312318 |
| 3 | Harness, Wire (Infinite Switch) |
| 4 | Adapter, Terminal |
| 5 | 16515 Whirlpool Clip |
| 5 | Screw |
| 6 | Jumper, Thermostat |
| 7 | Jumper, Selector |
| 8 | Leveler (Thinner) (2oz.) |
| 8 | WPL 814128 |
| 8 | WPL 3171507 |
| 8 | 242831 Whirlpool Oven Wire |
| 8 | Wire (14 Ga. 150 c Blue) |
| 8 | Wire (14 Ga. 150 c Brown) |
| 8 | Wire (14 Ga. 150 c Green) |
| 8 | Wire (14 Ga. 150 c Orange) |
| 8 | Wire (14 Ga. 150 c Yellow) |
| 8 | Wire (12 Ga. 150 c Black) |
| 8 | 18 Ga. 80~c Rating (Red) |
| 8 | Wire (14 Ga. 200 c Brown) |
| 8 | Grease |
| 8 | Enamel, Coffee (1 Qt. Uncut) |
| 8 | Enamel, New Avocado (1 Qt. Uncut) |
| 8 | 1 |
| 8 | Touch-Up Oven (1 Oz.) |
| 8 | 350942 Whirlpool Spray Paint |
| 8 | Golden Harvest (Uncut) |
| 8 | Golden Harvest |
| 8 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 8 | Almond (Uncut) |
| 8 | WP72107 Whirlpool Touchup |
| 8 | 799344 Whirlpool Refrigerator Paint |
| 8 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 8 | 350956 Whirlpool Spray Assembly |
| 8 | 511873 Whirlpool Refrigerator Paint |
| 8 | WPL 799832 |
| 8 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 8 | Paint, Spray 13 Oz. (Avocado) |
| 8 | paint, spray 13 oz. (coffee) |
| 8 | Paint, Touch-Up 1/2 Oz. (Coffee) |
| 8 | 72109 Whirlpool Dacor Avocado Touch-Up Paint |
| 8 | 8528351 Whirlpool Clip |
| 8 | 285006 Whirlpool Spray |
| 8 | Wire, 25`` Roll (White 14 GA.) |
| 8 | Wire, 25` Roll (Red 14 Ga.) |
| 8 | Wire, 25` Roll (Black 14 Ga.) |
| 8 | 350930 Whirlpool White Spray Paint |
