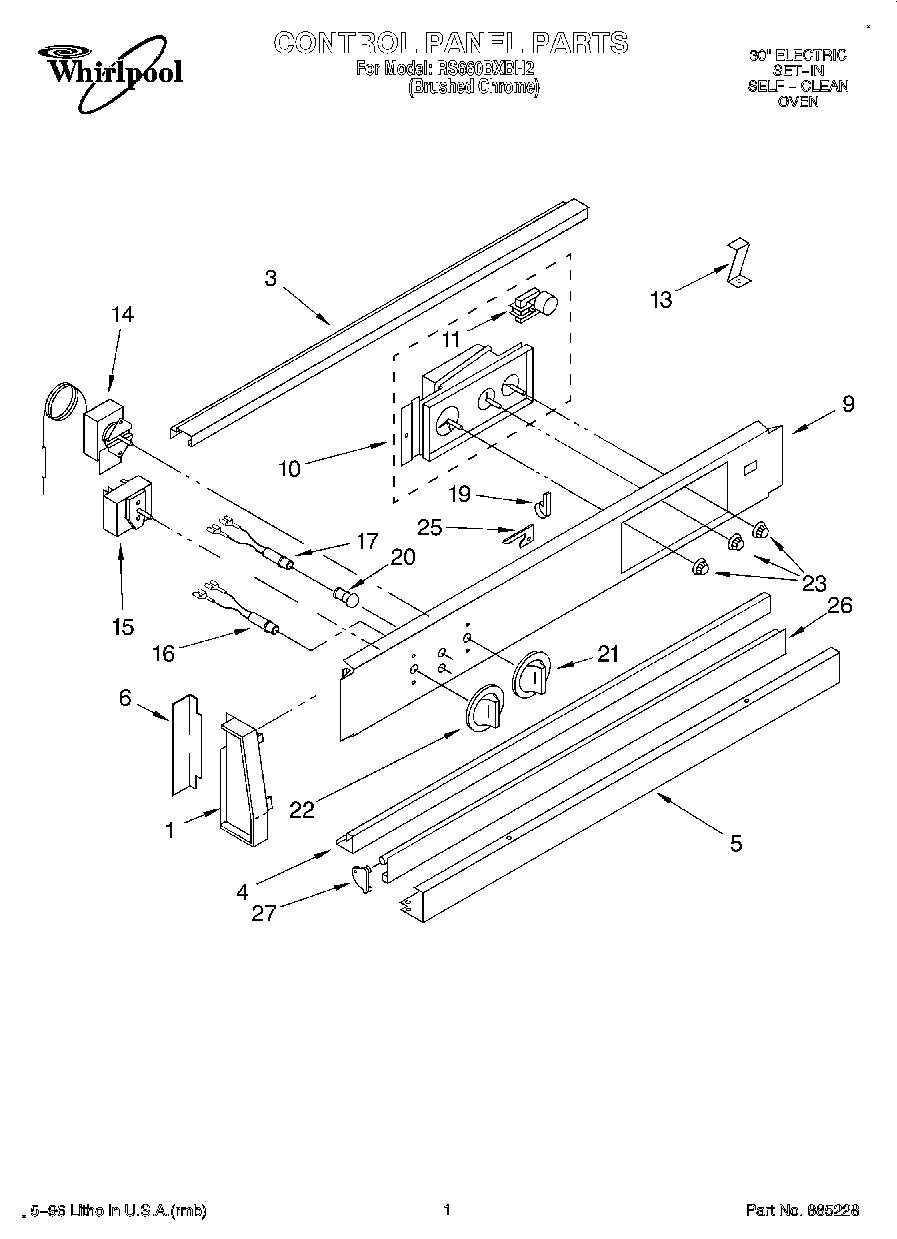

RS660BXBH2 01 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:48:53+00:00RS660BXBH2 01 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Use & Care Guide |
| Tech Sheet |
| Installation Instructions |
| 1 | End Cap (L.H.) |
| 1 | End Cap (R.H.) |
| 3 | Rail, Top |
| 4 | Trim, Center (Black) |
| 5 | Trim, Bottom |
| 6 | Trim, End Cap (Black) |
| 9 | Panel, Control |
| 10 | Timer, Auto |
| 11 | Motor, Timer |
| 13 | Bracket, Control |
| 14 | Thermostat, Oven |
| 14 | Screw |
| 15 | Switch, Selector |
| 15 | Screw |
| 16 | Light, Indicator (250V) |
| 17 | Indicator Light (1) |
| 19 | 488946 Whirlpool Air Conditioner Clamp |
| 20 | Lens, Amber |
| 21 | Knob (Temp) (White/Almond) |
| 22 | Knob (Selector) |
| 23 | WP3169181 Whirlpool Knob |
| 25 | Shield, Air |
| 25 | Screw (2) |
| 26 | Door, Vent (Black) |
| 27 | End Trim, Vent (Right Side) |
| 27 | End Trim, Vent (Left Side) |
