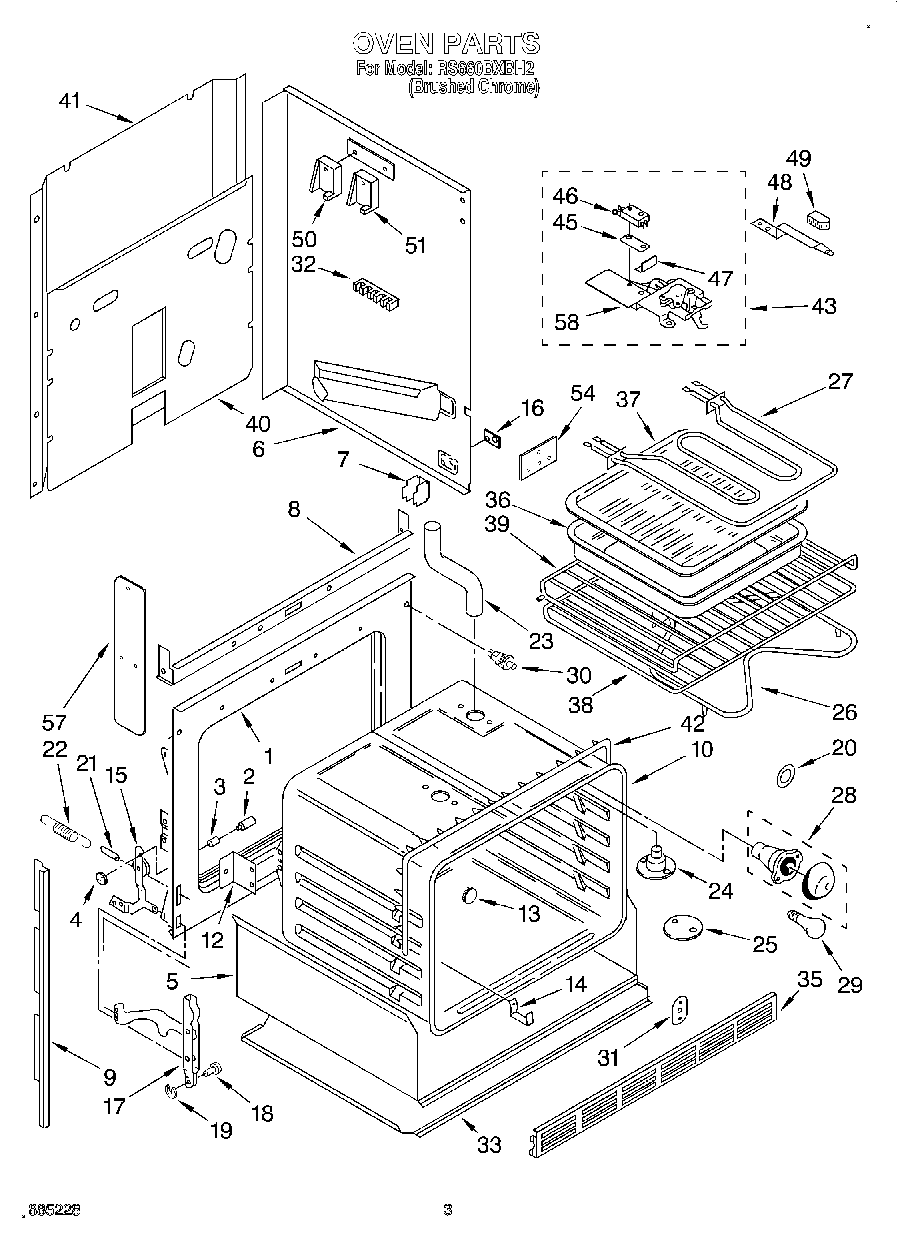

RS660BXBH2 02 – OVEN

Products

Position	Product
1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Right Side)
9	Side Trim (Left Side)
10	Oven 30“
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WP3184533 Whirlpool Range Light Lens Gasket
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	SCREW
23	Tube, Vent Extension
24	Tube, Vent
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
31	Plate, Cover
32	WP112432 Whirlpool Nut Assembly
32	WP8203546 Whirlpool Terminal Block
33	Cover, Bottom
35	Grill, Lower
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	Rack, Straight
39	Rack, Offset
40	Panel, Back
41	Screw
41	Cover, Rear
42	WPL 3185197
43	Latch Assembly
45	Insulator, Switch
46	Safety Switch
46	Screw
47	Shield, Latch
47	Screw (3)
47	Screw
48	Latch, Handle
48	Screw
49	Screw
49	Knob, Latch Handle
50	Sw
51	Switch, Bake
51	WPL 314215
54	WPL 3183005
54	Screw (10-12 x .875)
54	WP488729 Whirlpool Refrigerator Door Screw
57	Screw (2)
57	Baffle, Insulation
58	WPL 3149328
58	WPL 4454421
58	WPL 3149270
