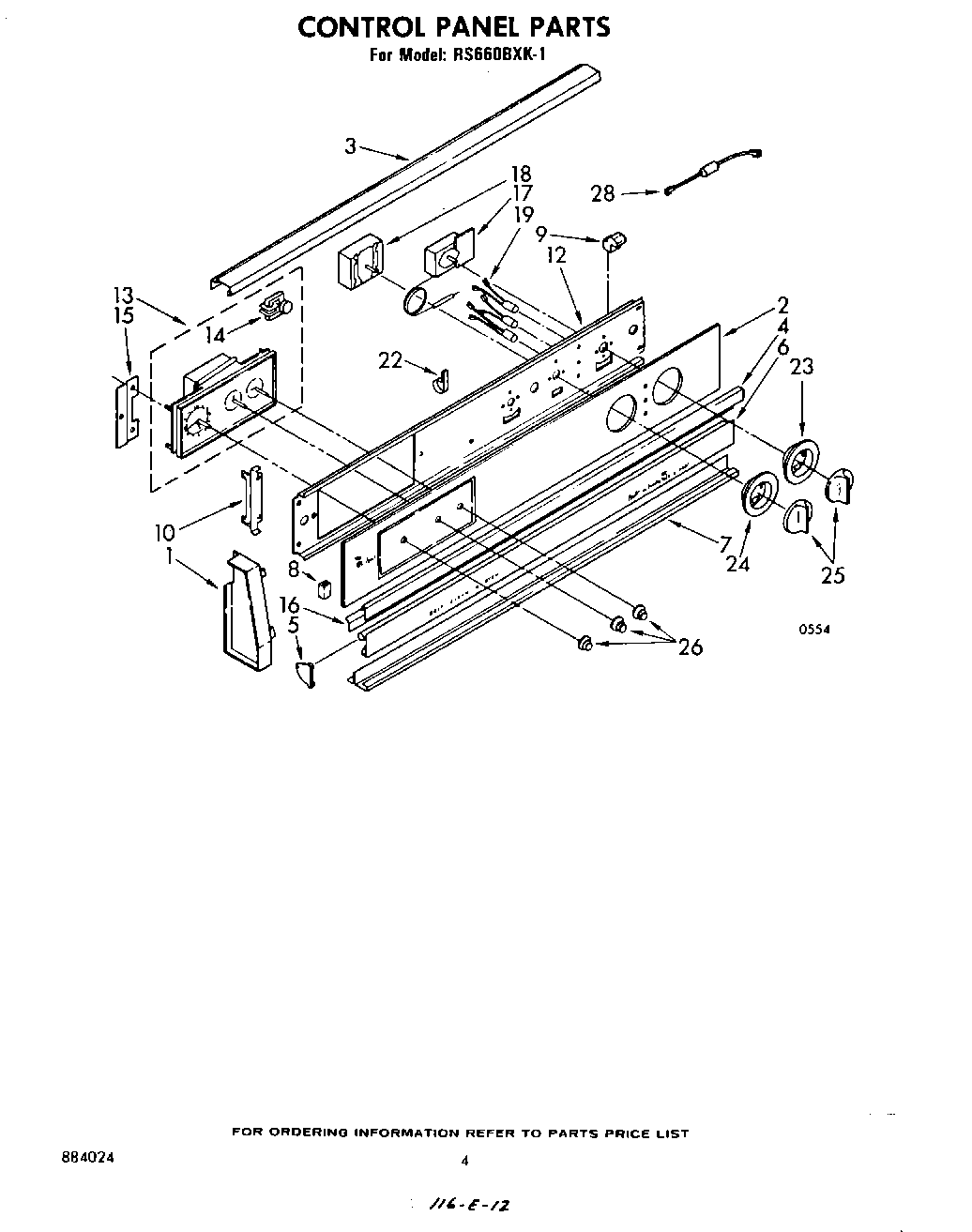

RS660BXK1 03 – SECTION

Products

Position	Product
1	End Cap (R.H.)
1	Screw (2)
1	End Cap (L.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Screw (2)
10	Bracket, Control Panel (2)
12	Timer, Automatic (Palnut (Timer))
12	Bracket, Control
13	Timer, Automatic (Alternate)
13	Timer, Automatic (Alternate (Includes Illus. 17))
14	Motor, Timer
15	Bracket, Timer
16	Seal, Backguard
17	Thermostat, Oven Pyro
17	screw, 6-32 x 1/4 (2)
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
22	WP308605 Whirlpool Refrigerator Clamp
22	WP965173 Whirlpool Dishwasher Screw
22	Screw
22	Strain Relief (3)
23	Escutcheon, Thermostat
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	knob, timer
28	WPL 98655
28	WPL 328891
