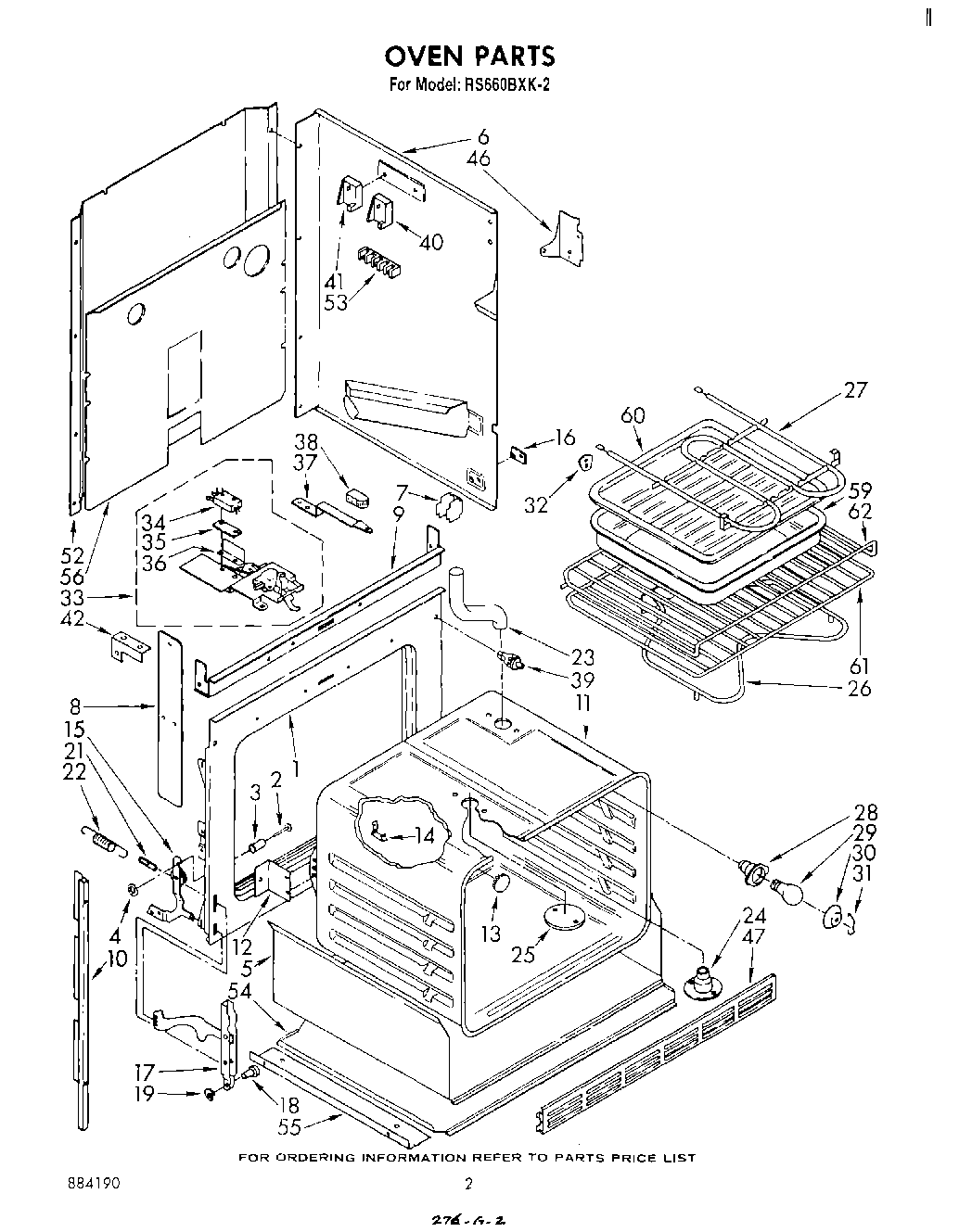

RS660BXK2 02 – OVEN

Products

Position	Product
	Screw (10-12 x .875)
	Screw, 10-32 x 5/8 (4)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	Screw, 6A x 1 1/4 (2)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent Extension
24	Eliminator, Smoke
24	SCREW
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light (Alt.)
28	Socket, Oven Light
28	Socket, Oven Light (Alt.)
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Screw
36	Shield, Latch
37	Latch, Handle
37	Screw
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	Switch, Broil
41	WPL 311585
42	WPL 312320
46	WPL 310714
46	WPL 310715
47	Grill, Bottom
47	Grill, Bottom (Screw (3))
52	WPL 310459
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	WPL 310458
55	Angle, Support (2)
56	WP308685 Whirlpool Microwave Screw
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
