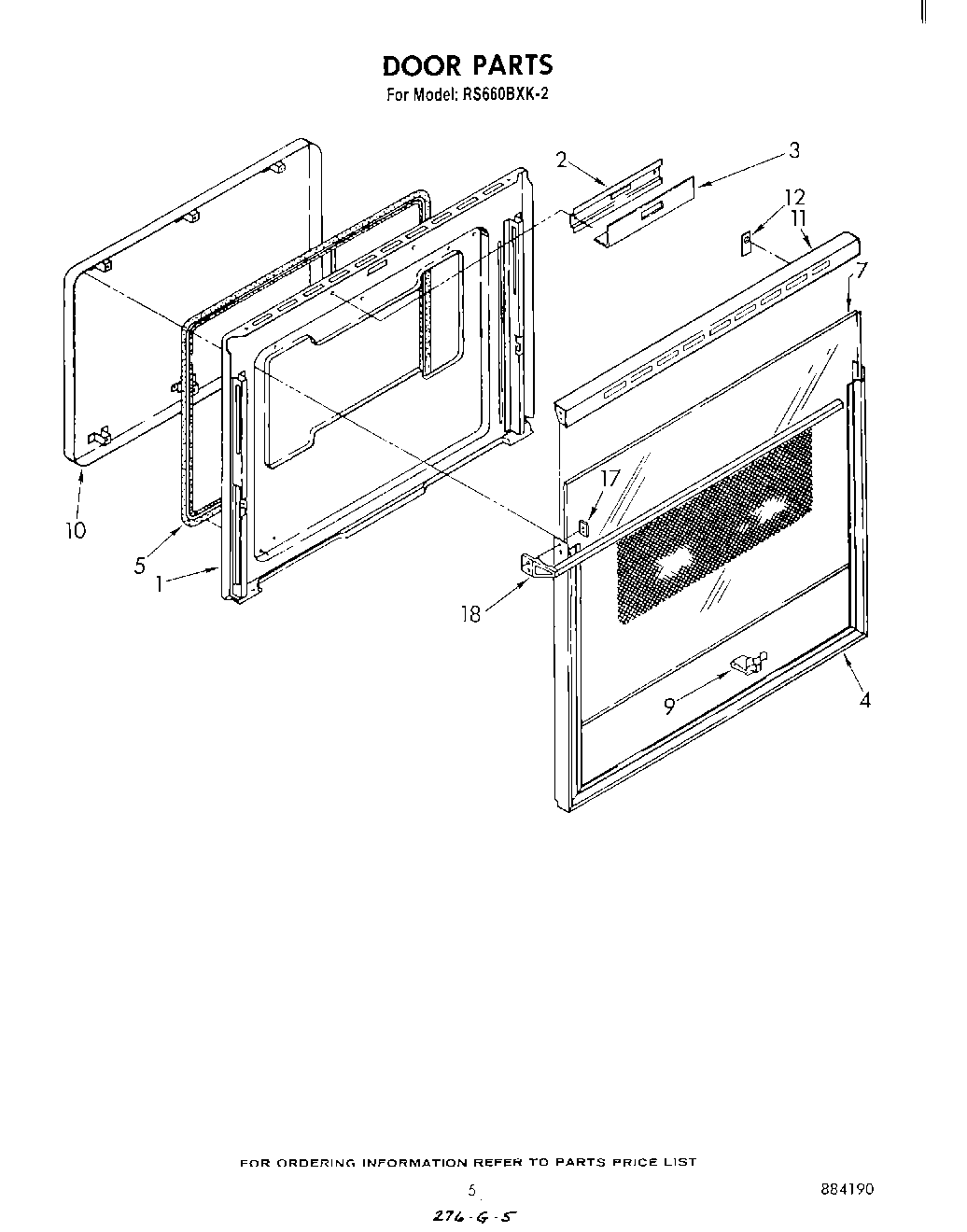

RS660BXK2 04 – DOOR

Written by

RS660BXK2 04 – DOOR

Products

Position	Product
1	WP308685 Whirlpool Microwave Screw
1	Clip (2)
1	Liner, Door
1	Screw (3)
2	Channel, Latch
3	Shield, Insulation
3	Screw (2)
4	frame, door 30“
5	Seal, Fiberglass
7	Glass, Outer
9	clip, glass (10)
10	Panel, Inner
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	hold down, glass (2)
17	screw (3)
18	Handle, Oven Door
18	WP912618 Whirlpool Dishwasher Screw
