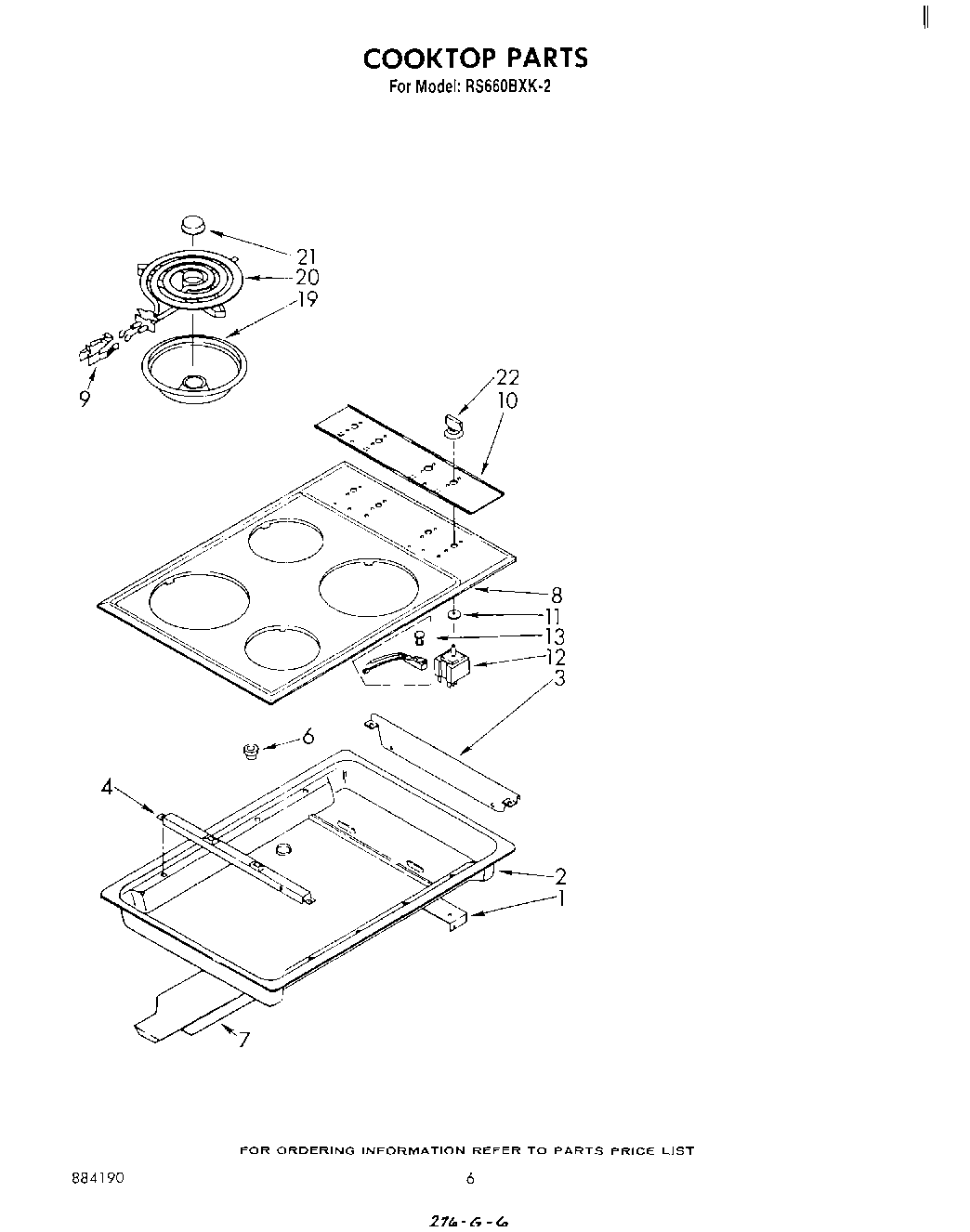

RS660BXK2 05 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Support, Box
2Burner Box
2WP488787 Whirlpool Refrigerator Screw
3Shield, Switch
4Support, Cooktop
6WPL 258109
7WP308685 Whirlpool Microwave Screw
7Cover, Top Rear
8Cooktop, Chrome
8Screw
8WPL 312318
9BURNER RECEPTACLE KIT
9WP313808 Whirlpool Screw
10Panel, Control
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
13Indicator Light
19WPW10196406 Whirlpool 6" Chrome Drip Bowl
19DRIP BOWL 8" W/HOLE CHROME
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22WP330190 Whirlpool Knob
