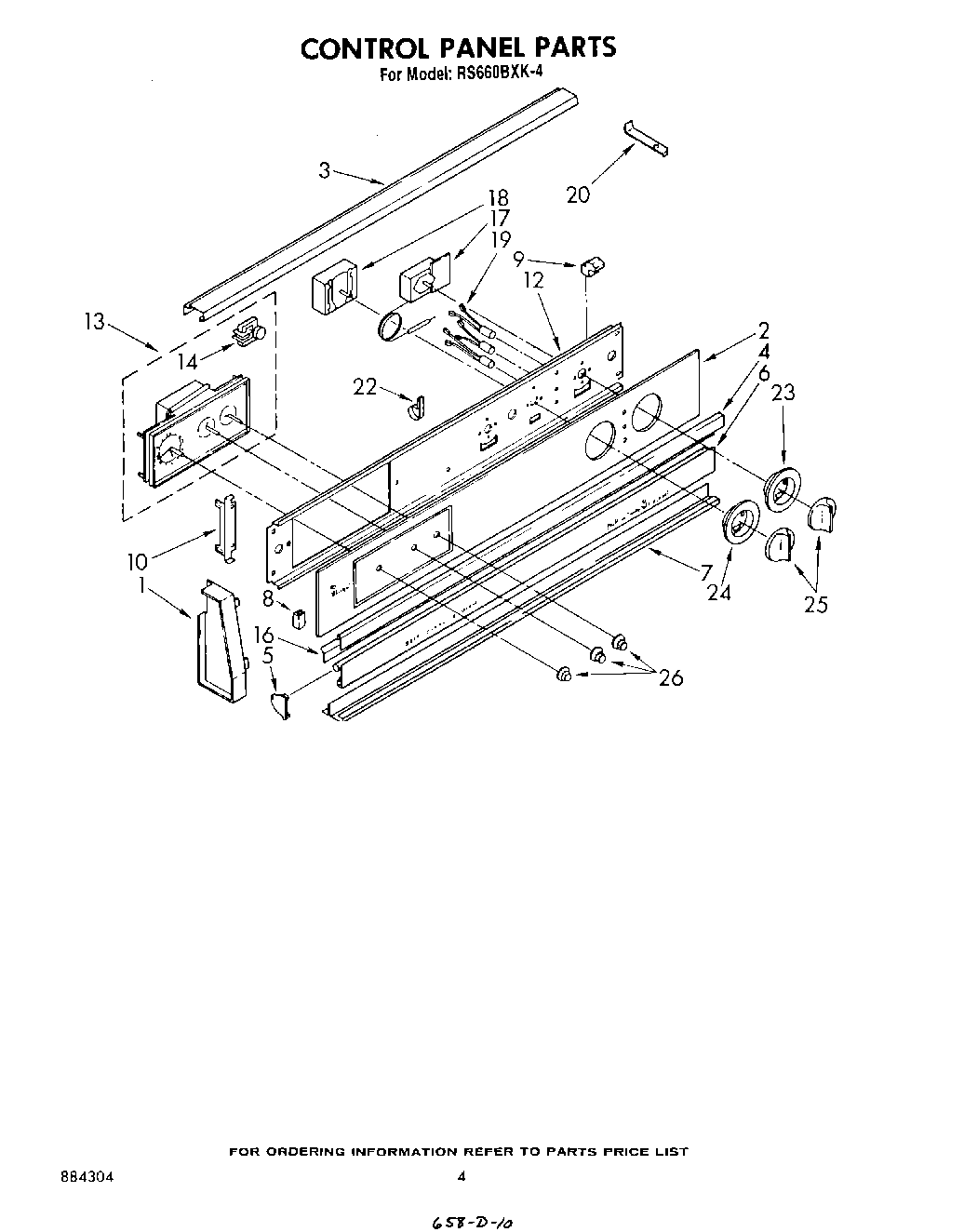

RS660BXK4 03 – CONTROL PANELadmin2025-04-26T12:48:25+00:00RS660BXK4 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Screw (2) |
| 1 | End Cap (L.H.) |
| 1 | End Cap (R.H.) |
| 2 | Control Panel, Glass |
| 3 | Rail, Top |
| 4 | Trim, Center |
| 5 | End Trim, Vent (Left Side) |
| 5 | End Trim, Vent (Right Side) |
| 6 | Door, Vent |
| 7 | Screw, 10-32 x 1/2 |
| 7 | Trim, Bottom |
| 8 | Rubber Channel (2) (Black Model Only) |
| 9 | Retainer, Glass (4) |
| 10 | Screw (2) |
| 10 | Bracket, Control Panel (2) |
| 12 | Bracket, Control |
| 13 | Timer, Automatic |
| 14 | Motor, Timer |
| 16 | Rail, Top (Seal, Backguard) |
| 17 | screw, 6-32 x 1/4 (2) |
| 17 | Thermostat, Oven Pyro |
| 18 | Selector Switch |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 19 | Indicator Light (4) |
| 20 | Support, Rail |
| 22 | WP308605 Whirlpool Refrigerator Clamp |
| 22 | Screw |
| 22 | WP965173 Whirlpool Dishwasher Screw |
| 23 | Escutcheon, Thermostat |
| 24 | WP311068 Whirlpool Dial Knob Black |
| 24 | Screw, |
| 25 | WP3150371 Whirlpool Control Knob |
| 26 | Spring (3) |
| 26 | WP3169181 Whirlpool Knob |
