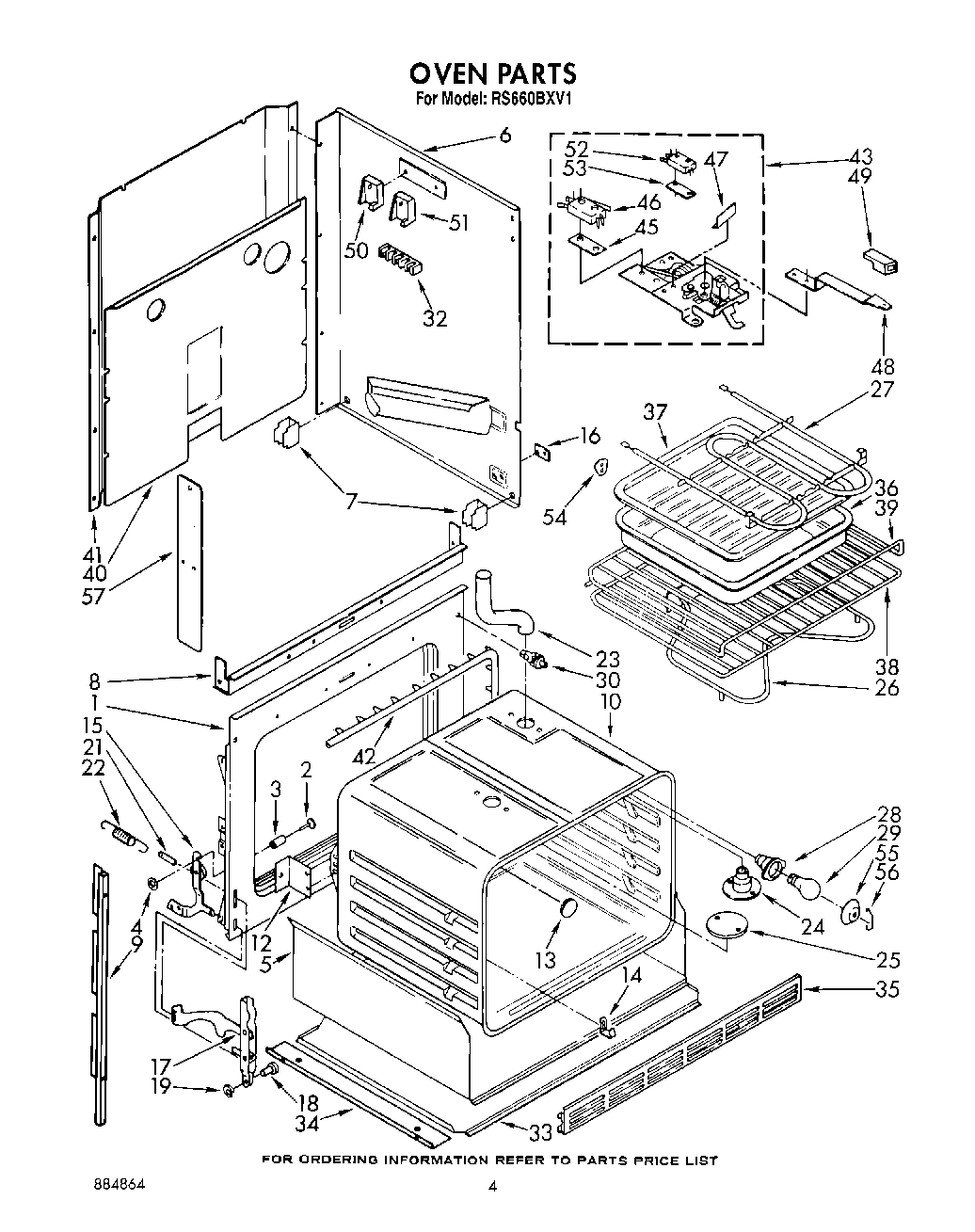

| Screw (2) |
| Screw (10-12 x .875) |
| 1 | Frame, Front |
| 2 | Pin, Hinge Ear (2) |
| 3 | Snubber, Door (2) |
| 4 | Pushnut (2) |
| 5 | Insulation Tray |
| 6 | Side Wrapper (Right Side) |
| 6 | Side Wrapper (Left Side) |
| 7 | Support, Side Wrapper (4) |
| 8 | Baffle, Top Insulation |
| 9 | Side Trim (Right Side) |
| 9 | Side Trim (Left Side) |
| 10 | Oven 30`` |
| 12 | Bracket, Oven Mounting (2) |
| 13 | Plug Button |
| 14 | 98005642 Whirlpool Clip |
| 15 | Hinge Ear, R.H. |
| 15 | Hinge Ear, L.H. |
| 16 | WP308544 Whirlpool Screw |
| 16 | Plate, Side Panel (2) |
| 17 | Channel Arm (2) |
| 18 | WP307986 Whirlpool Hinge Pin |
| 19 | Retainer Ring (2) |
| 21 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 22 | Spring, Oven Door (2) |
| 23 | Tube, Vent Extension |
| 23 | SCREW |
| 24 | Eliminator, Smoke |
| 25 | WPL 310662 |
| 26 | ELMNT-BAKE |
| 27 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 28 | Socket, Oven Light (Alt.) |
| 28 | Socket, Oven Light |
| 28 | Socket, Oven Light (Alt.) |
| 29 | RANGE ONLY 40W 120V APPL BULB |
| 30 | Switch, Door |
| 32 | WP8203546 Whirlpool Terminal Block |
| 32 | WP112432 Whirlpool Nut Assembly |
| 33 | WPL 310458 |
| 34 | Angle, Support (2) |
| 35 | Grill, Bottom |
| 35 | Grill, Bottom (Screw (3)) |
| 37 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 38 | WPL 308173 |
| 39 | WPL 308172 |
| 40 | Panel, Back (2) |
| 41 | Cover, Rear |
| 42 | Seal, Door |
| 43 | Latch Assembly |
| 45 | Insulator, Switch |
| 46 | Safety Switch |
| 46 | Screw |
| 47 | Screw (3) |
| 47 | Shield, Latch |
| 47 | Screw |
| 48 | Screw |
| 48 | Latch, Handle |
| 49 | Screw, 80 x 5/16 |
| 49 | Knob, Latch Handle |
| 50 | Sw |
| 51 | Switch, Bake |
| 51 | WPL 314215 |
| 52 | Switch, Lock |
| 53 | WPL 3147864 |
| 54 | WPL 311982 |
| 54 | WP488729 Whirlpool Refrigerator Door Screw |
| 55 | Cover, Light |
| 56 | Retainer, Light |
| 57 | Screw (2) |
| 57 | Baffle, Insulation |
