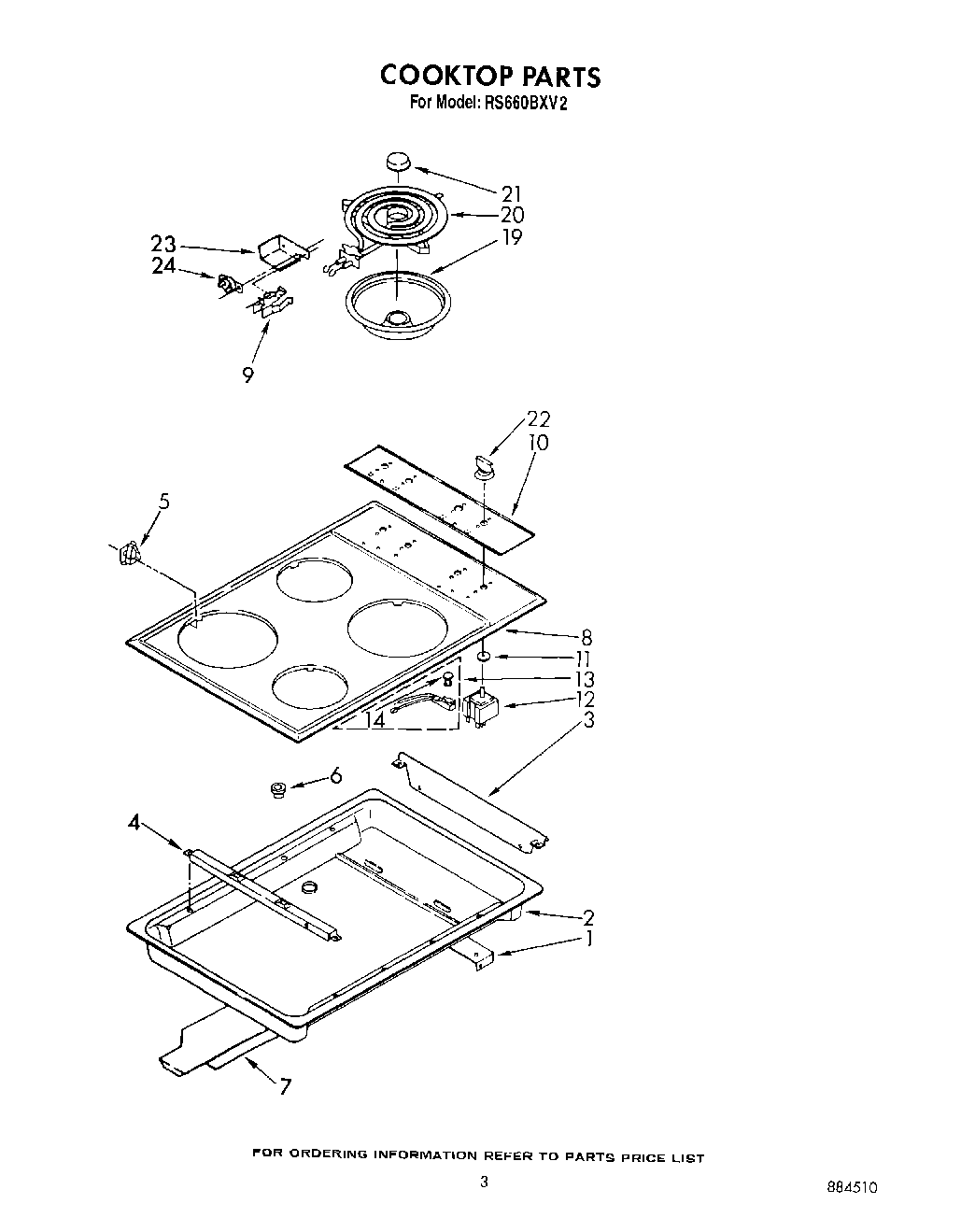

RS660BXV2 03 – COOKTOP, LIT/OPTIONALadmin2025-04-26T12:49:46+00:00RS660BXV2 03 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| WPL LIT3147390 |
| WPL LIT3148602 |
| WPL LIT3148324 |
| WPL LIT313358 |
| NI | WP660533 Whirlpool Oven 8" Surface Element |
| 1 | Support, Box |
| 2 | Burner Box |
| 3 | Shield, Switch |
| 4 | Support, Cooktop |
| 4 | Screw, 10-32 x 1/2 |
| 6 | WPL 258109 |
| 7 | Cover, Top Rear |
| 8 | Cooktop, Brushed Chrome |
| 8 | 814103 Whirlpool Clip |
| 8 | WP488729 Whirlpool Refrigerator Door Screw |
| 9 | BURNER RECEPTACLE KIT |
| 10 | Panel, Control |
| 11 | Seal, Switch Shaft (2) |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 12 | Switch, Infinite (8`` Unit (2)) |
| 12 | W10900107 Whirlpool Oven Surface Element Switch |
| 13 | Indicator Light |
| 14 | Lens, Light |
| 19 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 19 | DRIP BOWL 8" W/HOLE CHROME |
| 20 | WP660532 Whirlpool Oven Surface Element |
| 21 | Medallion (4) |
| 22 | Knob, Control |
| 23 | Bracket, Sensor |
| 24 | Screw, 6-32 x 9/32 (4) |
| 24 | WP313808 Whirlpool Screw |
| 24 | Thermostat |
