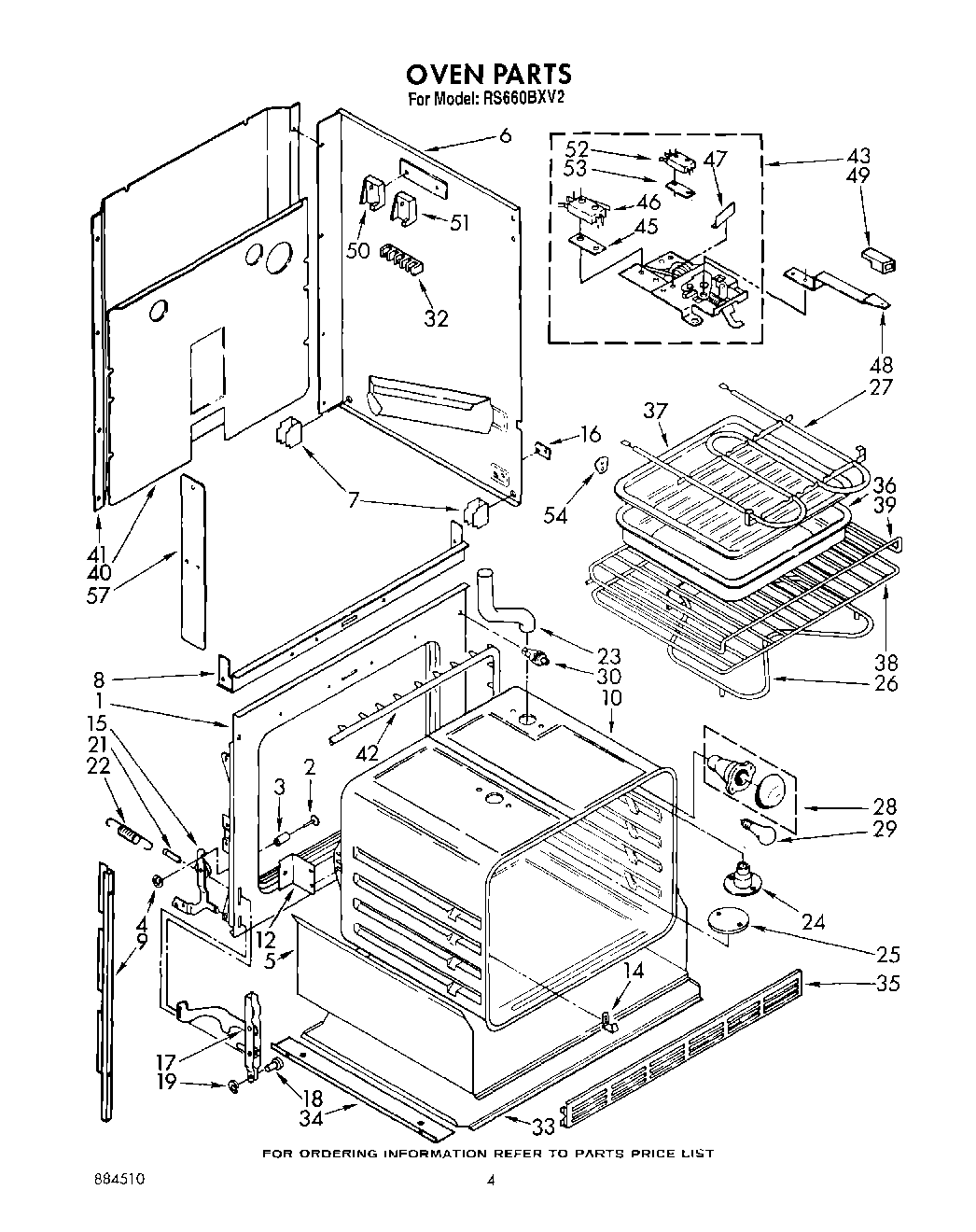

RS660BXV2 04 – OVEN

Products

Position	Product
NI	Screw (2)
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Right Side)
6	Side Wrapper (Left Side)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
9	Side Trim (Right Side)
10	Oven, 30“
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, R.H.
15	Hinge Ear, L.H.
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
32	WP8203546 Whirlpool Terminal Block
32	WP112432 Whirlpool Nut Assembly
33	WPL 310458
34	Angle, Support (2)
35	Grill, Bottom
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	WPL 308173
39	WPL 308172
40	Panel, Back (2)
41	Cover, Rear
42	WPL 3185197
43	Latch Assembly
45	Insulator, Switch
46	Screw
46	Safety Switch
47	Screw (3)
47	Screw
47	Shield, Latch
48	Screw
48	Latch, Handle
49	Screw, 80 x 5/16
49	Knob, Latch Handle
50	Sw
51	Switch, Bake
51	WPL 314215
52	Switch, Lock
53	WPL 3147864
54	WP488729 Whirlpool Refrigerator Door Screw
54	WPL 311982
54	Screw (10-12 x .875)
57	Screw (2)
57	Baffle, Insulation
57	WPL 310433
57	WPL 3149328
57	WPL 310434
