RS660BXYH1 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Repair Parts List
Use & Care Guide
Tech Sheet
Brochure
Installation Instructions

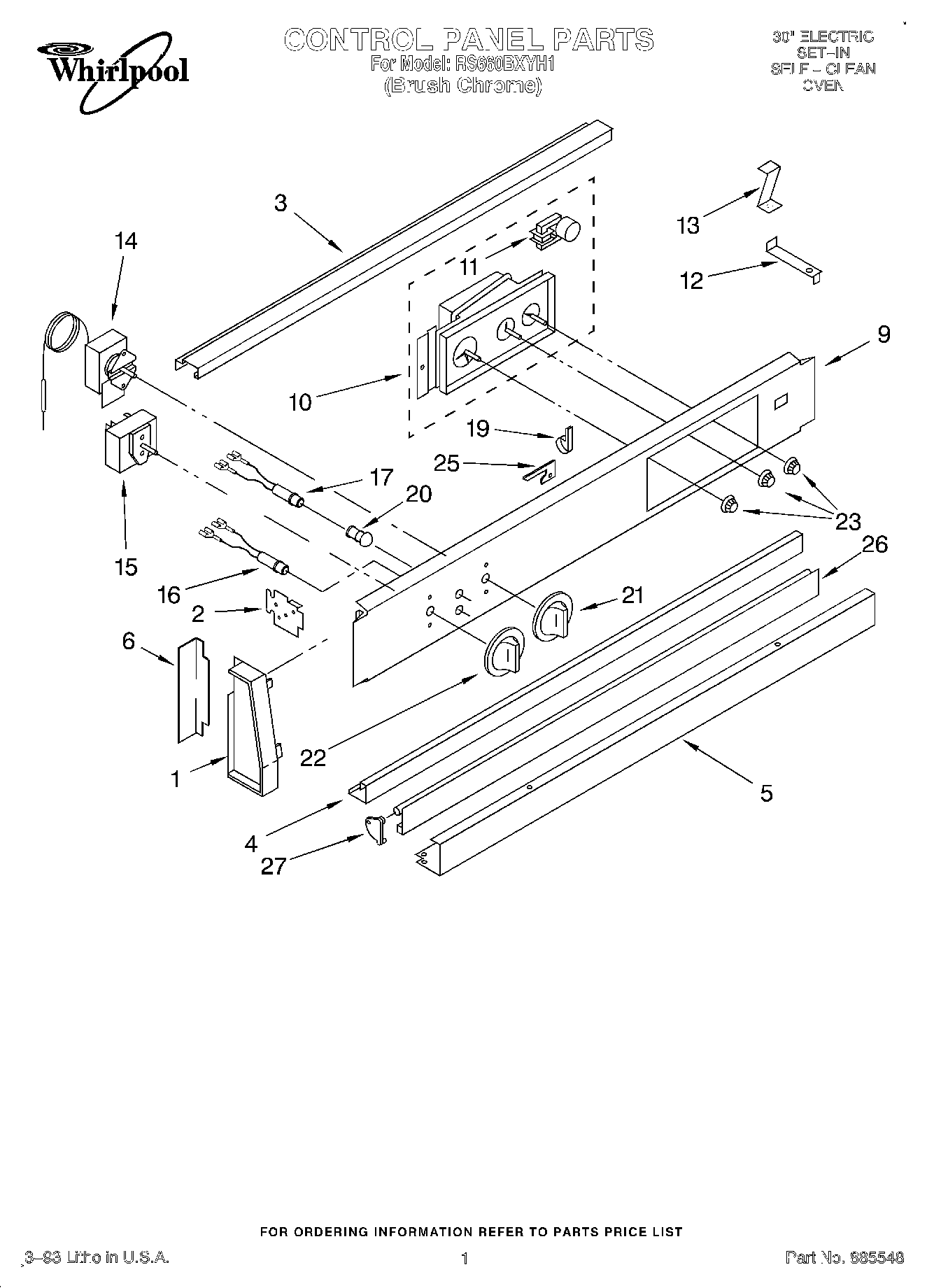

1End Cap (L.H.)
1End Cap (R.H.)
2Cover, Side (Right Hand)
2Cover, Side (Left Hand)
3Rail, Top
4Trim, Center (Black)
5Trim, Bottom
6Trim, End Cap (Black)
9Panel, Control
10Timer, Auto
11Motor, Timer
12WP965173 Whirlpool Dishwasher Screw
12Support, Rail
13Bracket, Control
14Thermostat, Oven
14WP313808 Whirlpool Screw
15Switch, Selector
15Screw
16Light, Indicator (250V)
17Indicator Light (1)
19488946 Whirlpool Air Conditioner Clamp
20Lens, Amber
21Knob (Temp) (White/Almond)
22Knob (Selector)
23WP3169181 Whirlpool Knob
25Shield, Air
25Screw (2)
26Door, Vent (Black)
27End Trim, Vent (Left Side)
27End Trim, Vent (Right Side)
