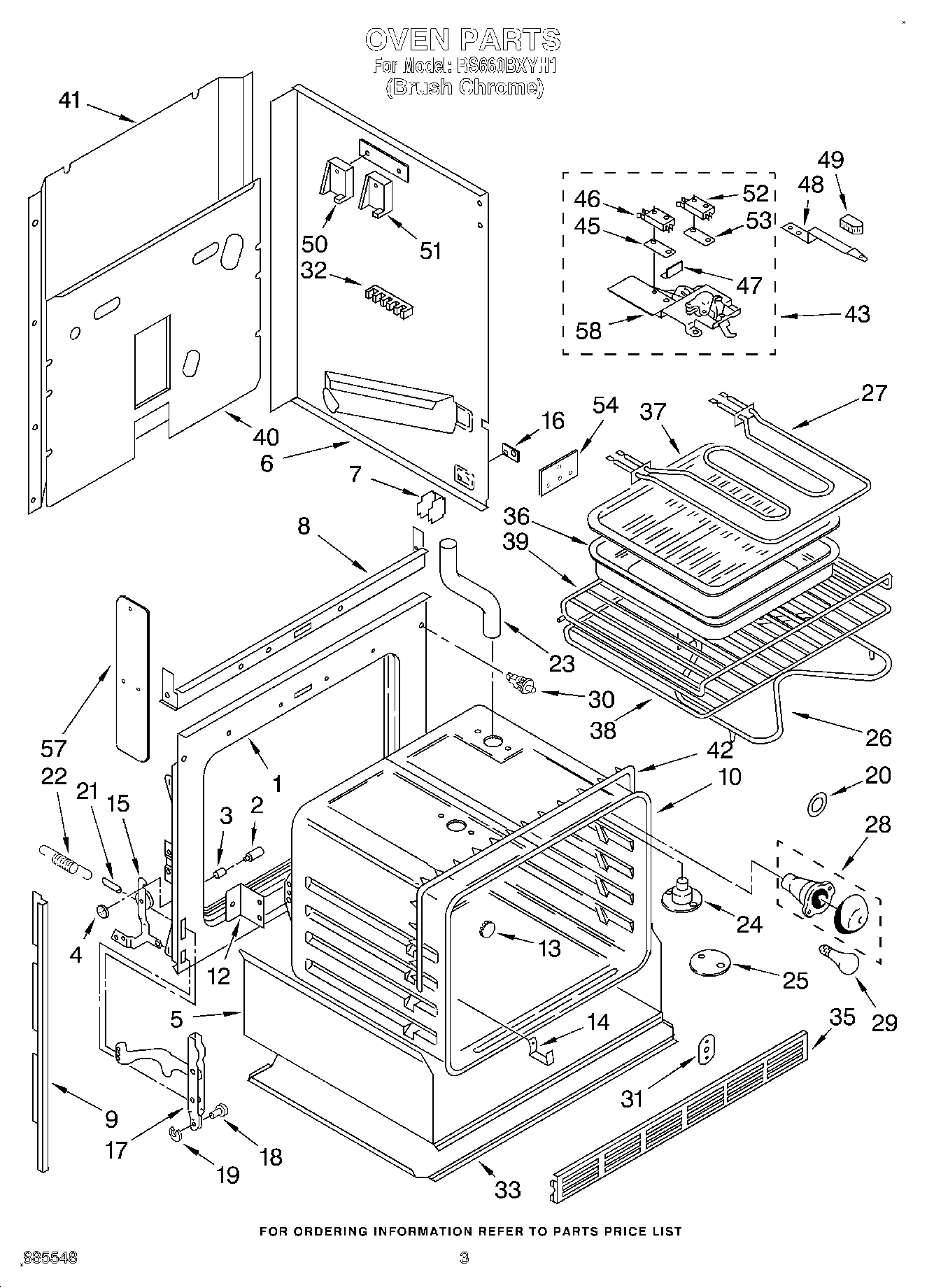

RS660BXYH1 02 – OVEN

Products

Position	Product
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Baffle, Top Insulation
9	Side Trim (Left Side)
9	Side Trim (Right Side)
10	Oven 30“
12	WP489069 Whirlpool Compactor Screw
12	Bracket, Oven Mounting (2)
13	Button, Plug
14	98005642 Whirlpool Clip
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	WP3184533 Whirlpool Range Light Lens Gasket
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	SCREW
23	Tube, Vent Extension
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	Screw (2)
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Switch, Door
31	Plate, Cover
32	WP8203546 Whirlpool Terminal Block
32	WP112432 Whirlpool Nut Assembly
33	WPL 310458
35	Grill, Bottom
35	Grill, Bottom (Screw (3))
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	WPL 308173
39	WPL 308172
40	Panel, Back
41	Cover, Rear
42	WPL 3185197
43	Latch Assembly
45	Insulator, Switch
46	Safety Switch
46	Screw
47	Screw
47	Shield, Latch
47	Screw (3)
48	Screw
48	Latch, Handle
49	Knob, Latch Handle
49	Screw
50	Sw
51	Switch, Bake
51	WPL 314215
52	Switch, Lock
53	WPL 3147864
54	Screw (10-12 x .875)
54	WPL 3183005
54	WP488729 Whirlpool Refrigerator Door Screw
57	Baffle, Insulation
57	Screw (2)
58	WPL 3149328
58	WPL 3149270
58	WPL 310433
58	WPL 310435
