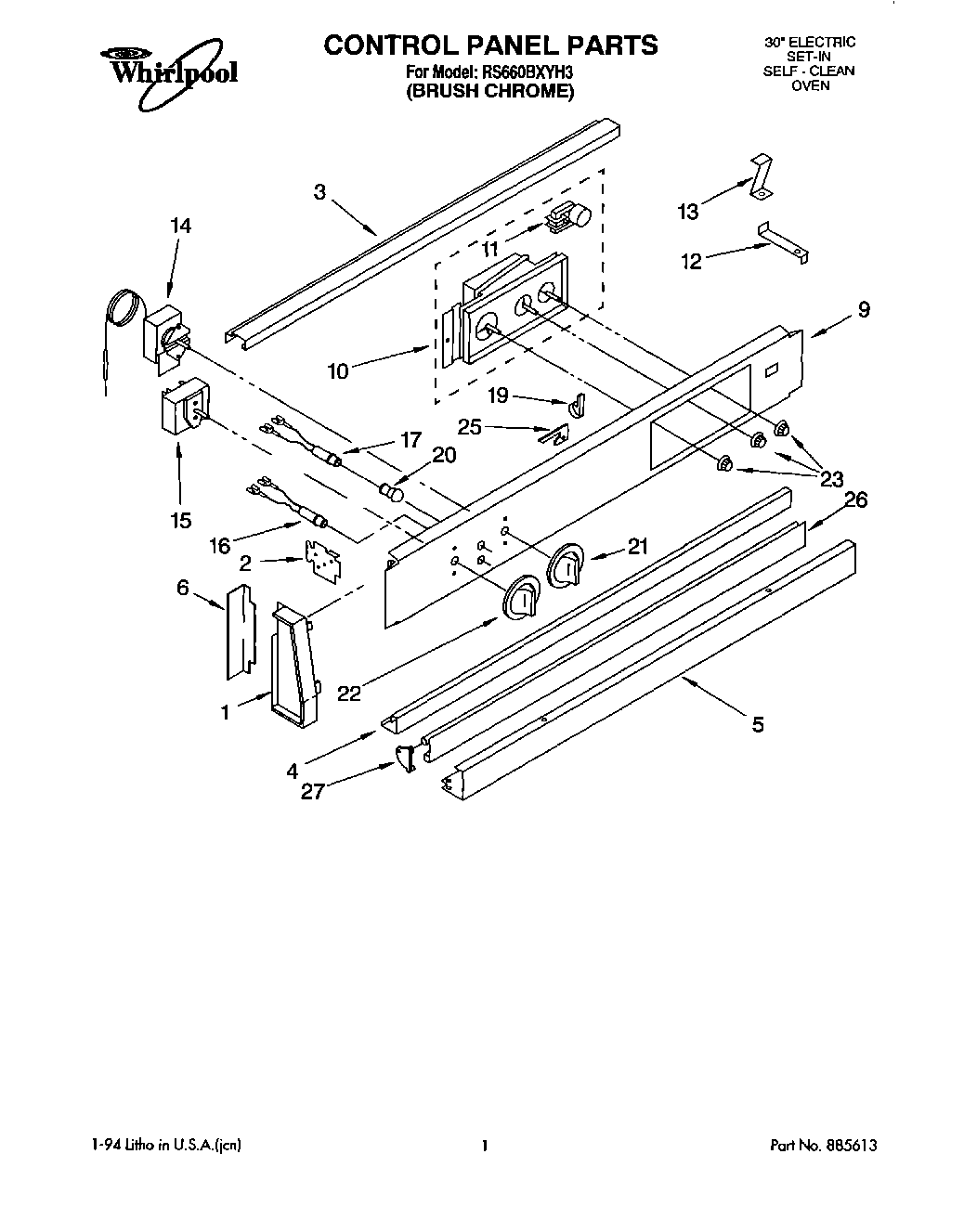

RS660BXYH3 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Tech Sheet
	Use & Care Guide
	WPL LIT677973
	Installation Instructions
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Cover, Side (Left Hand)
2	Cover, Side (Right Hand)
3	Rail, Top
4	Trim, Center (Black)
5	Trim, Bottom
6	Trim, End Cap (Black)
9	Panel, Control
10	Timer, Auto
11	Motor, Timer
12	Support, Rail
12	WP965173 Whirlpool Dishwasher Screw
13	Bracket, Control
14	WP313808 Whirlpool Screw
14	Thermostat, Oven
15	Screw
15	Switch, Selector
16	Light, Indicator (250V)
17	Indicator Light (1)
19	488946 Whirlpool Air Conditioner Clamp
20	Lens, Amber
21	Knob (Temp) (White/Almond)
22	Knob (Selector)
23	WP3169181 Whirlpool Knob
25	Screw (2)
25	Shield, Air
26	Door, Vent (Black)
27	End Trim, Vent (Left Side)
27	End Trim, Vent (Right Side)
