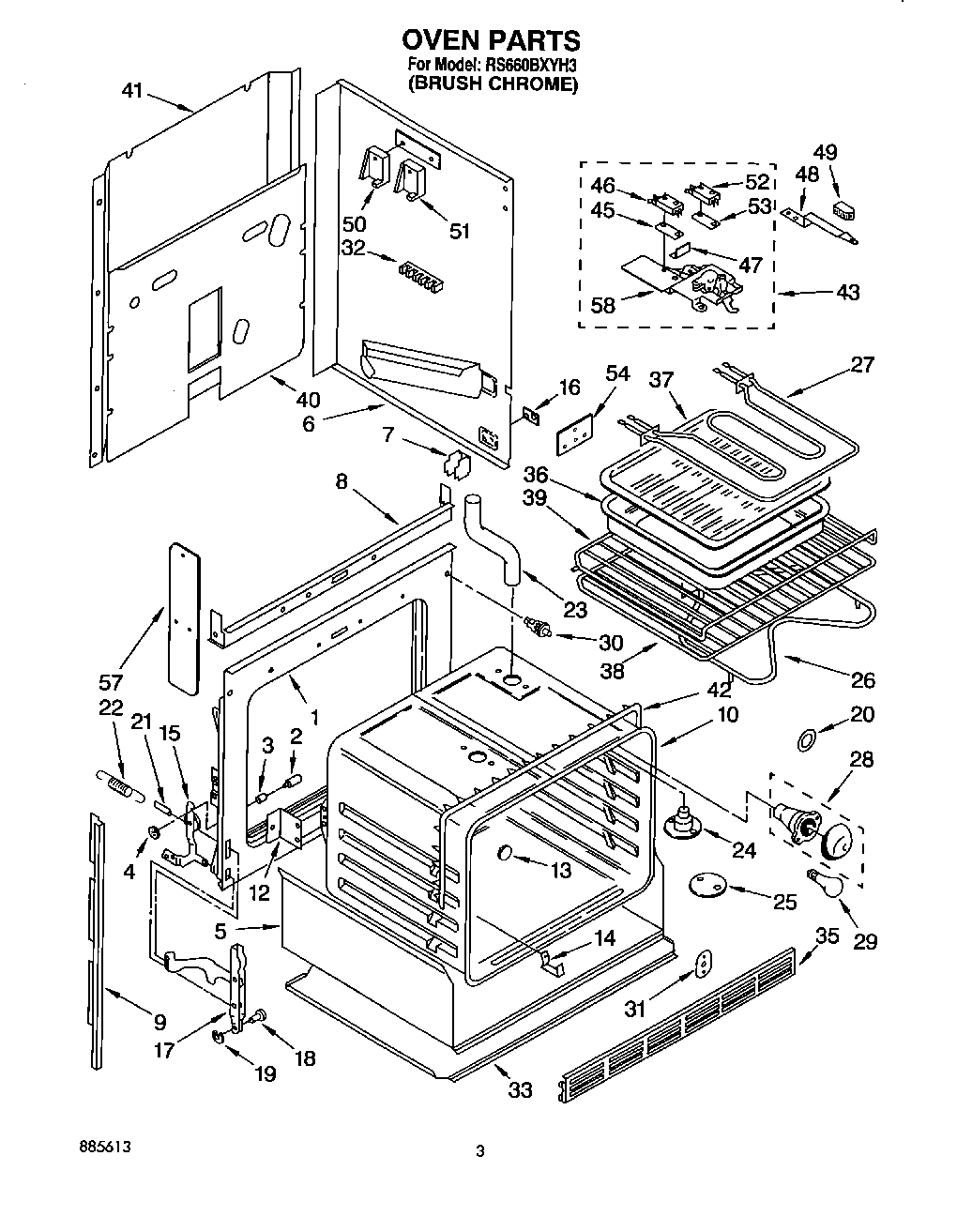

RS660BXYH3 02 – OVEN
Written by
in
RS660BXYH3 02 – OVEN
Products
Position
Product
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper R.H.
6
Side Wrapper L.H.
7
Support, Side Wrapper (4)
8
Baffle, Top Insulation
9
Side Trim (Left Side)
9
Side Trim (Right Side)
10
Oven 30“
12
Bracket, Oven Mounting (2)
13
Button, Plug
14
98005642 Whirlpool Clip
15
Hinge, Ear (Right Side)
15
Hinge, Ear (Left Side)
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
20
WP3184533 Whirlpool Range Light Lens Gasket
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
Spring, Oven Door (2)
23
Tube, Vent Extension
23
SCREW
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
27
Screw (2)
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28
W11594027 Whirlpool Range Oven Light Socket
29
RANGE ONLY 40W 120V APPL BULB
30
Switch, Door
31
Plate, Cover
32
WP112432 Whirlpool Nut Assembly
32
WP8203546 Whirlpool Terminal Block
33
Cover, Bottom
35
Grill, Bottom
35
Grill, Bottom (Screw (3))
37
4396923 Whirlpool Broil Pan Set Gray Porcelain
38
Rack, Straight
39
Rack, Offset
40
Panel, Back
41
Cover, Rear
41
Screw
42
WPL 3185197
43
Latch Assembly
45
Insulator, Switch
46
Screw
46
Safety Switch
47
Screw
47
Screw (3)
47
Shield, Latch
48
Latch, Handle
48
Screw
49
Screw
49
Knob, Latch Handle
50
Sw
51
Switch, Bake
51
WPL 314215
52
Switch, Lock
53
WPL 3147864
54
WP488729 Whirlpool Refrigerator Door Screw
54
WPL 3183005
54
Screw (10-12 x .875)
57
Screw (2)
57
Baffle, Insulation
58
WPL 3149328
58
WPL 310435
58
WPL 310433
58
WPL 3149270
←
