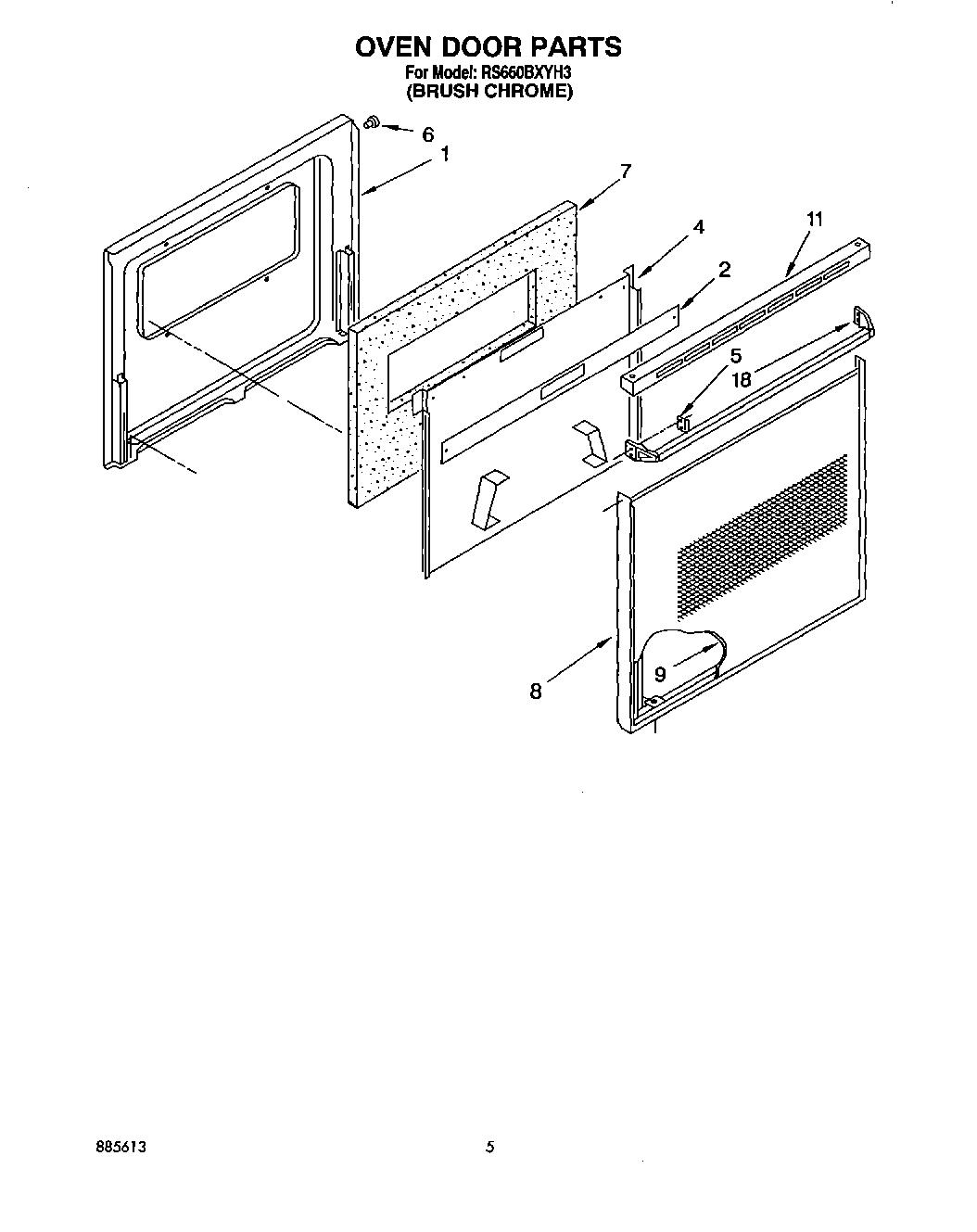

RS660BXYH3 03 – OVEN DOORadmin2025-04-26T12:49:05+00:00RS660BXYH3 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP488729 Whirlpool Refrigerator Door Screw |
| 1 | Liner, Oven Door |
| 1 | Back Splash (Screw (4) 10AB x 1/2``) |
| 2 | Sheild, Door |
| 4 | Retainer, Insulation |
| 4 | Screw |
| 5 | Clip, Mtg (2) |
| 6 | Bumper (4) |
| 7 | Insulation, Door |
| 8 | Frame, Door |
| 9 | Screw, |
| 9 | Panel, Door (Black Glass) |
| 11 | Top, Door (Black Model) |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 18 | WP355515 Whirlpool Screw |
| 18 | Handle, Oven Door |
