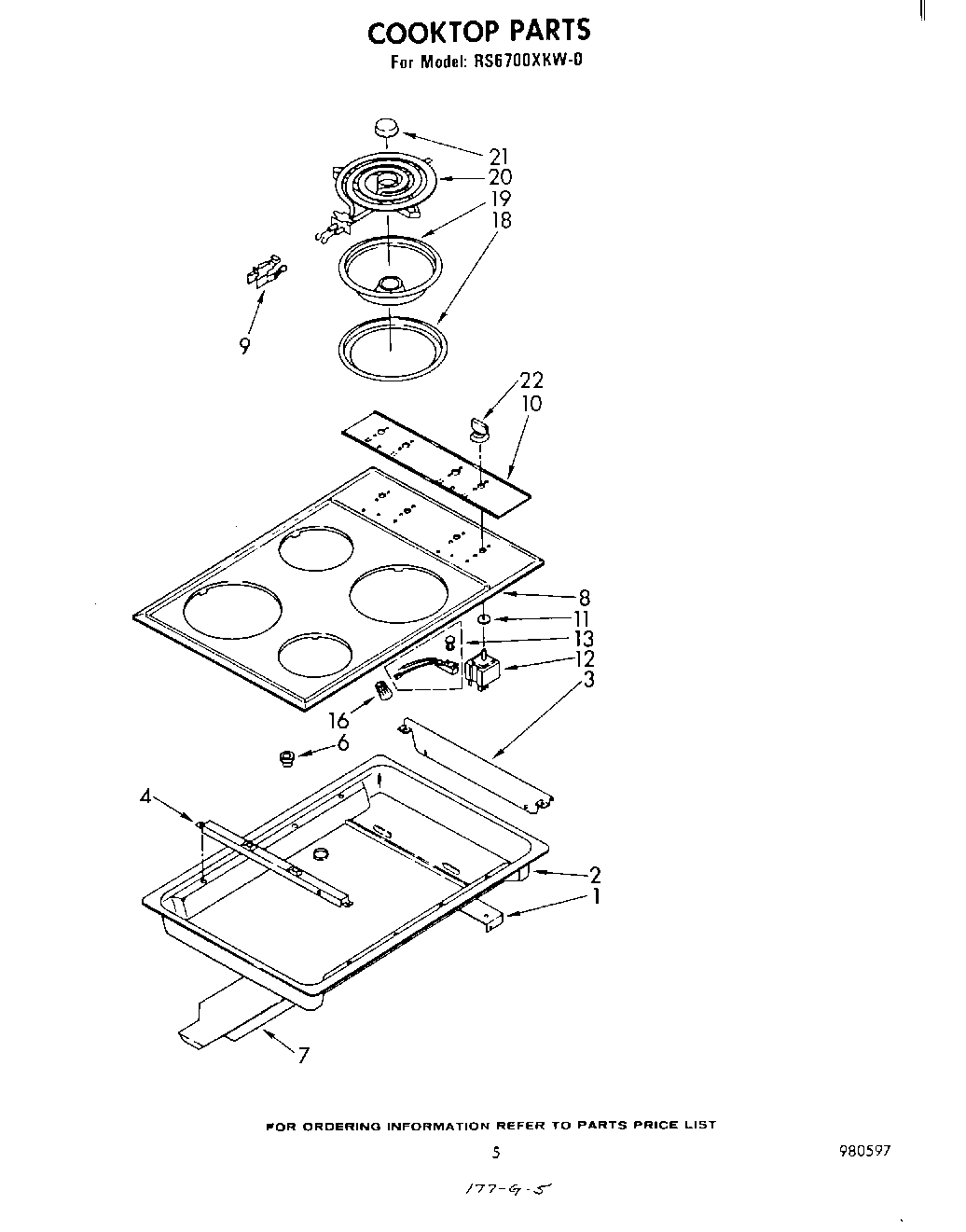

RS6700XKW0 04 – COOKTOP

Products

Position	Product
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Support, Cooktop
4	Screw, 10-32 x 1/2
6	WPL 258109
7	Cover, Top Rear
8	Screw
8	Cooktop (Harvest Gold)
8	Cooktop (Coffee)
8	Cooktop (Almond)
8	Cooktop (White)
8	Cooktop (New Avocado)
8	WP308685 Whirlpool Microwave Screw
9	BURNER RECEPTACLE KIT
9	WP313808 Whirlpool Screw
10	Panel, Control
11	Seal, Switch Shaft (2)
12	Switch, Infinite (Screw, 8-32 x 5/16 (8))
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light (2) (Includes Lens)
16	Connector, Wire
18	W10858781 Whirlpool Trim Ring
18	W10854470 Whirlpool Trim Ring
19	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	WP330190 Whirlpool Knob
