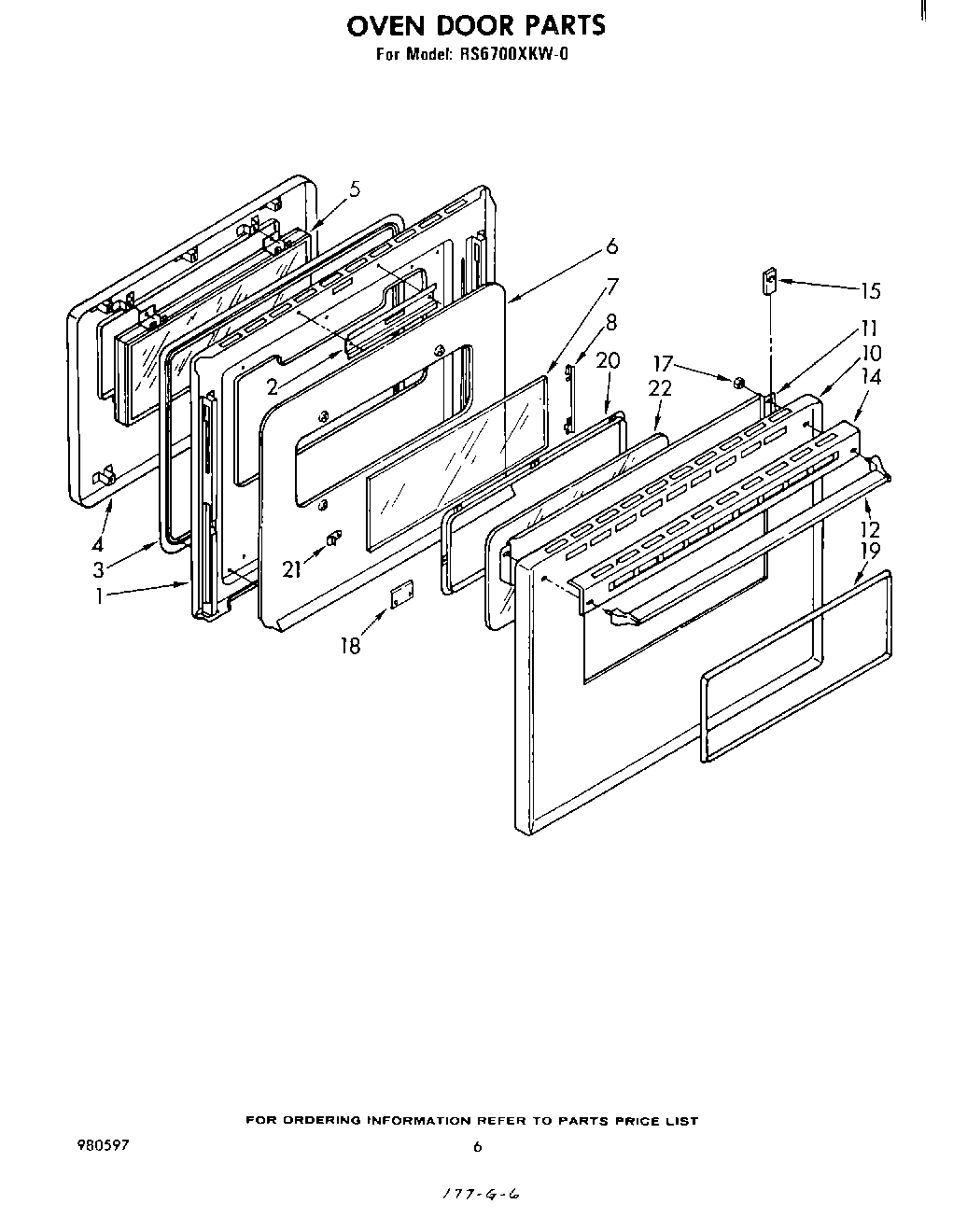

RS6700XKW0 05 – OVEN DOOR , LITERATURE AND OPTIONAL

Products

Position	Product
1	Screw (3)
1	Griddle Cover (Avocado 1633A1A, A2A)
1	Clip (2)
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
6	WP308685 Whirlpool Microwave Screw
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
10	Panel, Door (Coffee)
10	Screw
10	Panel, Door (New Avocado)
10	panel, top (screw, 10a x 3/8 (3))
10	Panel, Door (Almond)
10	Screw, 10A x 1/2 (2) (Black)
10	Panel, Door (White)
10	Panel, Door (Harvest Gold)
11	Baffle, Top
12	Handle, Oven Door
14	Trim, Panel
14	Clip
15	Spacer (Fish Paper)
17	WP308499 Whirlpool Nut
18	Shield
18	pushnut (2)
19	Frame, Window
20	Retainer, Glass
21	Clip, Frame
22	Touch-Up Oven (1 Oz.)
22	Wire, 25“ Roll (White 14 GA.)
22	Wire, 25` Roll (Red 14 Ga.)
22	1
22	Wire, 25` Roll (Black 14 Ga.)
22	FOIL, ALUMINUM OVEN (18“ X 25 )
22	WPW10208653 Whirlpool Insulation
22	WPL 311433
22	WPL 311412
22	WPL 311951
22	242831 Whirlpool Oven Wire
22	Screw
22	Wire (14 Ga. 200 c Brown)
22	18 Ga. 80~c Rating (Red)
22	Wire (12 Ga. 150 c Black)
22	Rotisserie Kit
22	Grease
22	Wire (14 Ga. 150 c Yellow)
22	WPL 308500
22	Wire (14 Ga. 150 c Orange)
22	Wire (14 Ga. 150 c Green)
22	Wire (14 Ga. 150 c Brown)
22	Wire (14 Ga. 150 c Blue)
22	console
22	Glass, Outer
22	WPL 980597
