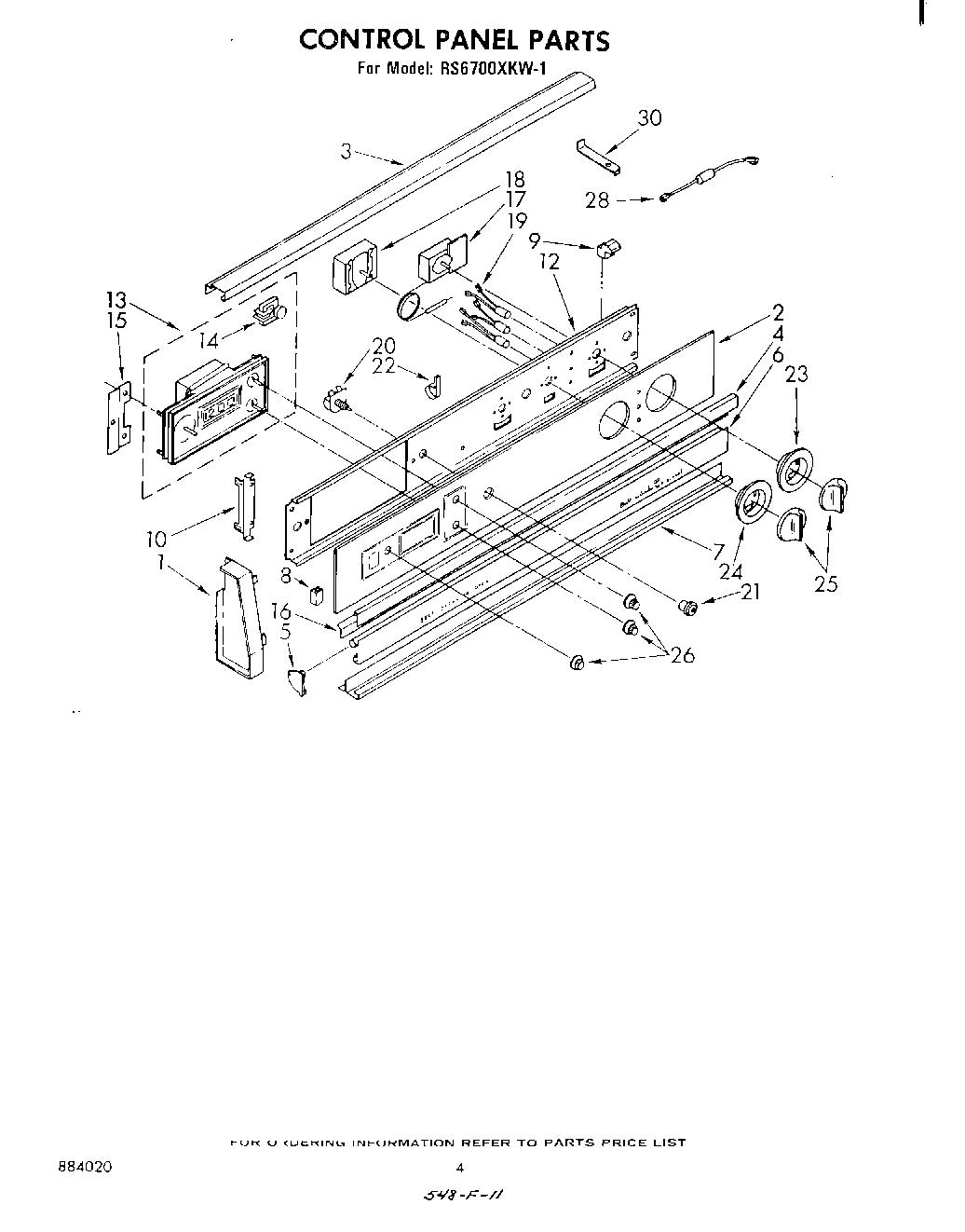

RS6700XKW1 03 – CONTROL PANEL

Products

Position	Product
1	Screw (2)
1	End Cap (L.H.)
1	End Cap (R.H.)
2	Control Panel, Glass
3	Rail, Top
4	Trim, Center
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Trim, Bottom
7	Screw, 10-32 x 1/2
8	Rubber Channel (2) (Black Model Only)
9	Retainer, Glass (4)
10	Screw (2)
10	Bracket, Control Panel (2)
12	Bracket, Control
13	Timer, Digital (Includes Illus. 29)
13	Timer, Automatic (Palnut (Timer))
14	Motor, Timer
15	Bracket, Timer
16	Seal, Backguard
17	screw, 6-32 x 1/4 (2)
17	Thermostat, Oven Pyro
18	WP486579 Whirlpool Air Conditioner Screw
18	Selector Switch
19	Indicator Light (4)
20	Switch, Oven Light
21	Bezel Switch (1)
22	WP308605 Whirlpool Refrigerator Clamp
22	Screw
22	Strain Relief (3)
23	Escutcheon, Thermostat
24	WP311068 Whirlpool Dial Knob Black
24	Screw,
25	WP3150371 Whirlpool Control Knob
26	WPL 312808
28	WPL 328891
28	WPL 98655
30	Support, Rail
30	WP965173 Whirlpool Dishwasher Screw
