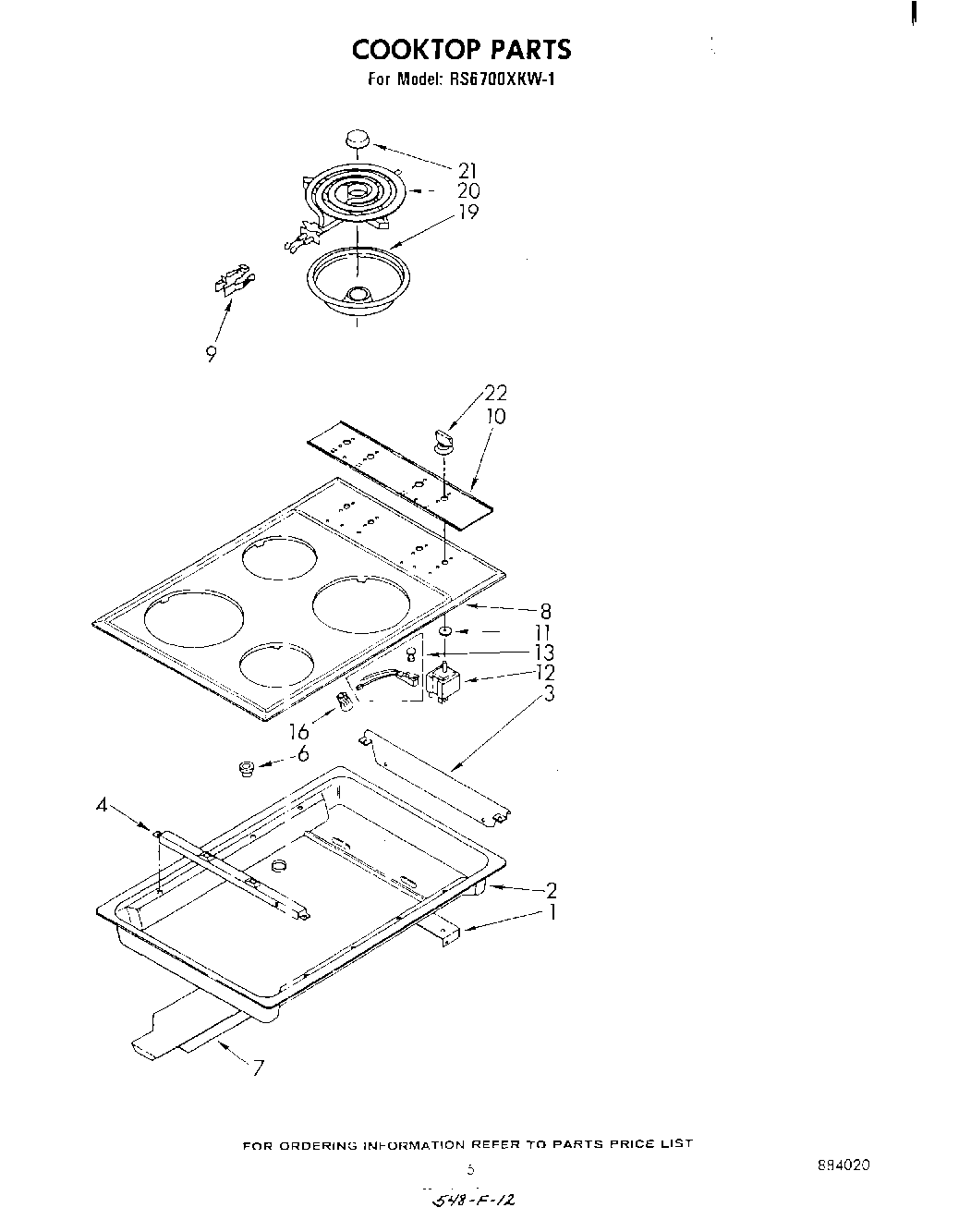

RS6700XKW1 04 – COOK TOP

Products

Position	Product
1	Support, Box
2	Burner Box
3	Shield, Switch
4	Support, Cooktop
6	WPL 258109
7	Cover, Top Rear
8	Screw
8	Cooktop (Harvest Gold)
8	Cooktop (Coffee)
8	Cooktop (Toast)
8	Cooktop (Platinum)
8	Cooktop (Almond)
8	Cooktop (New Avocado)
8	WP488787 Whirlpool Refrigerator Screw
8	WP308685 Whirlpool Microwave Screw
8	Cooktop (White)
9	WP313808 Whirlpool Screw
9	BURNER RECEPTACLE KIT
10	Panel, Control
11	Seal, Switch Shaft (2)
12	Switch, Infinite (Screw, 8-32 x 5/16 (8))
12	W10900107 Whirlpool Oven Surface Element Switch
13	Indicator Light (2) (Includes Lens)
16	Connector, Wire
19	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	DRIP BOWL 8" W/HOLE CHROME
20	WP660532 Whirlpool Oven Surface Element
20	WP660533 Whirlpool Oven 8" Surface Element
21	Medallion (4)
22	WP330190 Whirlpool Knob
