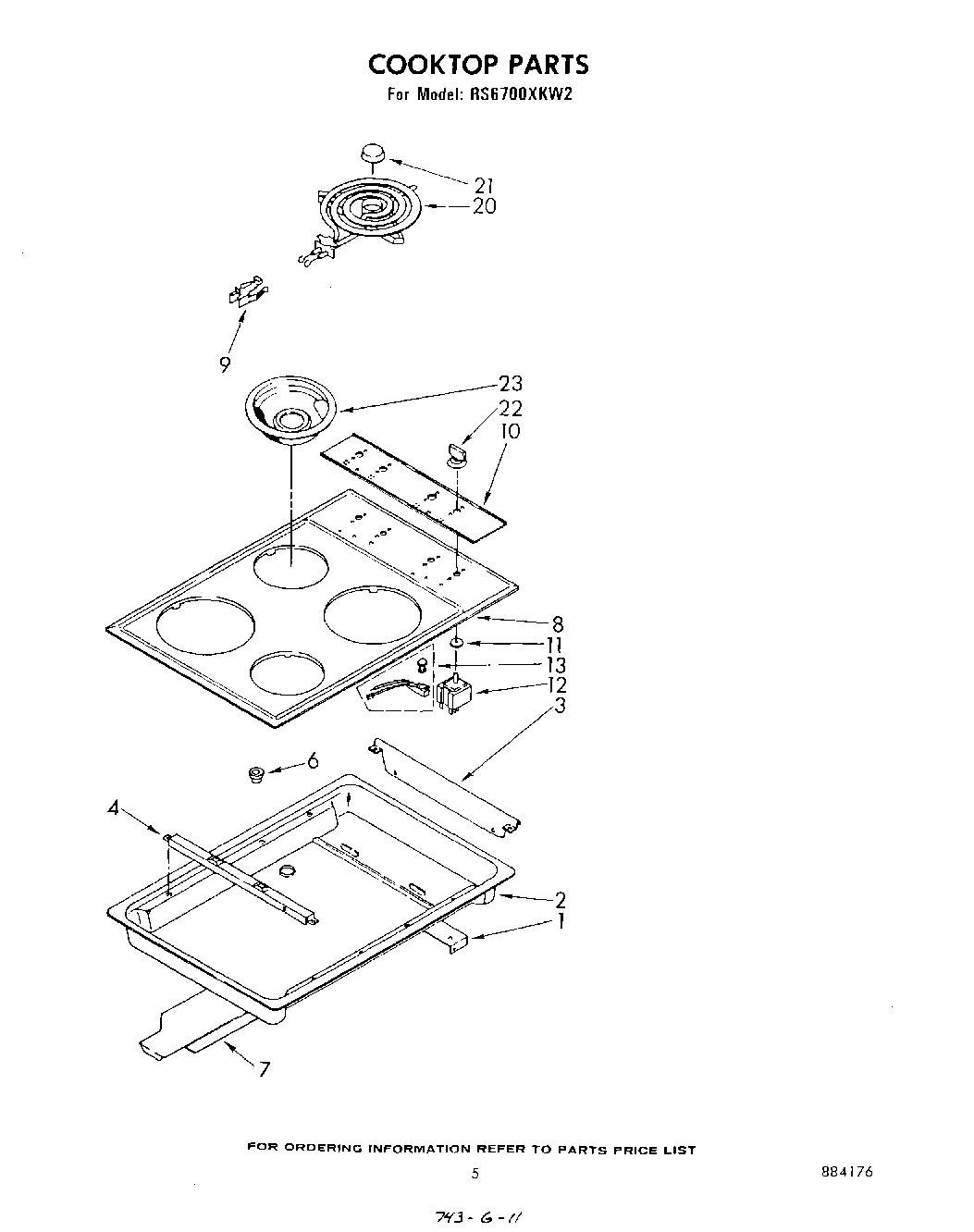

RS6700XKW2 04 – COOK TOP

RS6700XKW2 04 – COOK TOP

Written by

in

RS6700XKW2 04 – COOK TOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Support, Box
2Burner Box
3Shield, Switch
4Support, Cooktop
4WP488787 Whirlpool Refrigerator Screw
6WPL 258109
7WP308685 Whirlpool Microwave Screw
7WPL 312318
7Cover, Top Rear
8Cooktop (White)
8Screw
8Cooktop (Harvest Gold)
8Cooktop (Almond)
8Cooktop (Toast)
8Cooktop (Platinum)
9BURNER RECEPTACLE KIT
9WP313808 Whirlpool Screw
10Panel, Control
11Seal, Switch Shaft (2)
12W10900107 Whirlpool Oven Surface Element Switch
12WP486579 Whirlpool Air Conditioner Screw
13Indicator Light
20WP660532 Whirlpool Oven Surface Element
21Medallion (4)
22WP330190 Whirlpool Knob
23WPW10196406 Whirlpool 6" Chrome Drip Bowl
23DRIP BOWL 8" W/HOLE CHROME
